INSTALLATION PROCEDURES
3-2
Remove protective shipping material (i.e., plastic wrap and / or optional shipping box) from dryer.
1. Unscrew nut the wood piece before operating the machine.
2. Take out the wood piece before operating the machine.

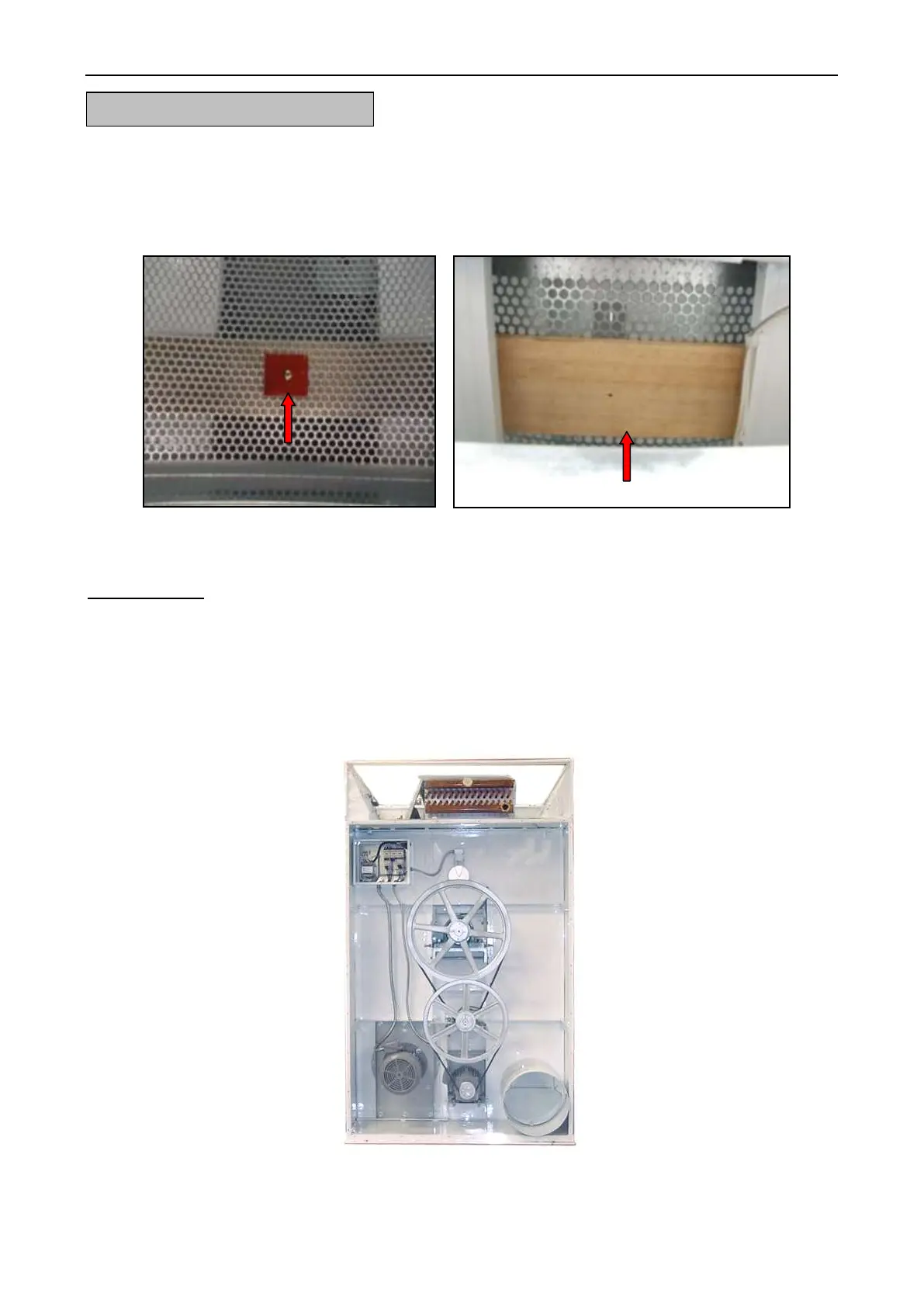

Figure.3-1 Protective Shipping Material
IMPORTANT: Dryer must be transported and handled in an upright position at all times.
The dryer can be moved to its final location while still attached to the skid or with the skid
removed. To un-skid the dryer, locate and remove the four (4) lag bolts securing the base of the
dryer to the wooden skid. Two (2) are located at the rear base, and two (2) are located in the bottom
of the lint chamber. To remove the two (2) lag bolts located in the lint chamber area, remove lint
drawer and the three (3) Phillips head screws securing lint door in place.
Figure.3-2 Dryer Model 100 lb. Rear View
B. UNPACKING / SETTING UP
