Image DE100 - Page 60

Section 8 Page 7
Item Part No. Qty.
1
A0-E013-006 1 Heater box complete assembly (Heater)
2
A0-E004-078 1 Magnetic Contactor
3
A0-E055-001 1 Connector, Ground lug
4
A0-E021-142 1 Terminal
5
A0-E016-013 1 Thermostat
6
A0-E014-014 1 Micro switch (Std)
7
A2-SDE1-028 1 Cabinet sail switch shell
8
A0-E005-009 18 Heating Element , 4000W
9
A0-A094-001 36 Male Ceremic
10
A0-A094-002 36 Female Ceremic

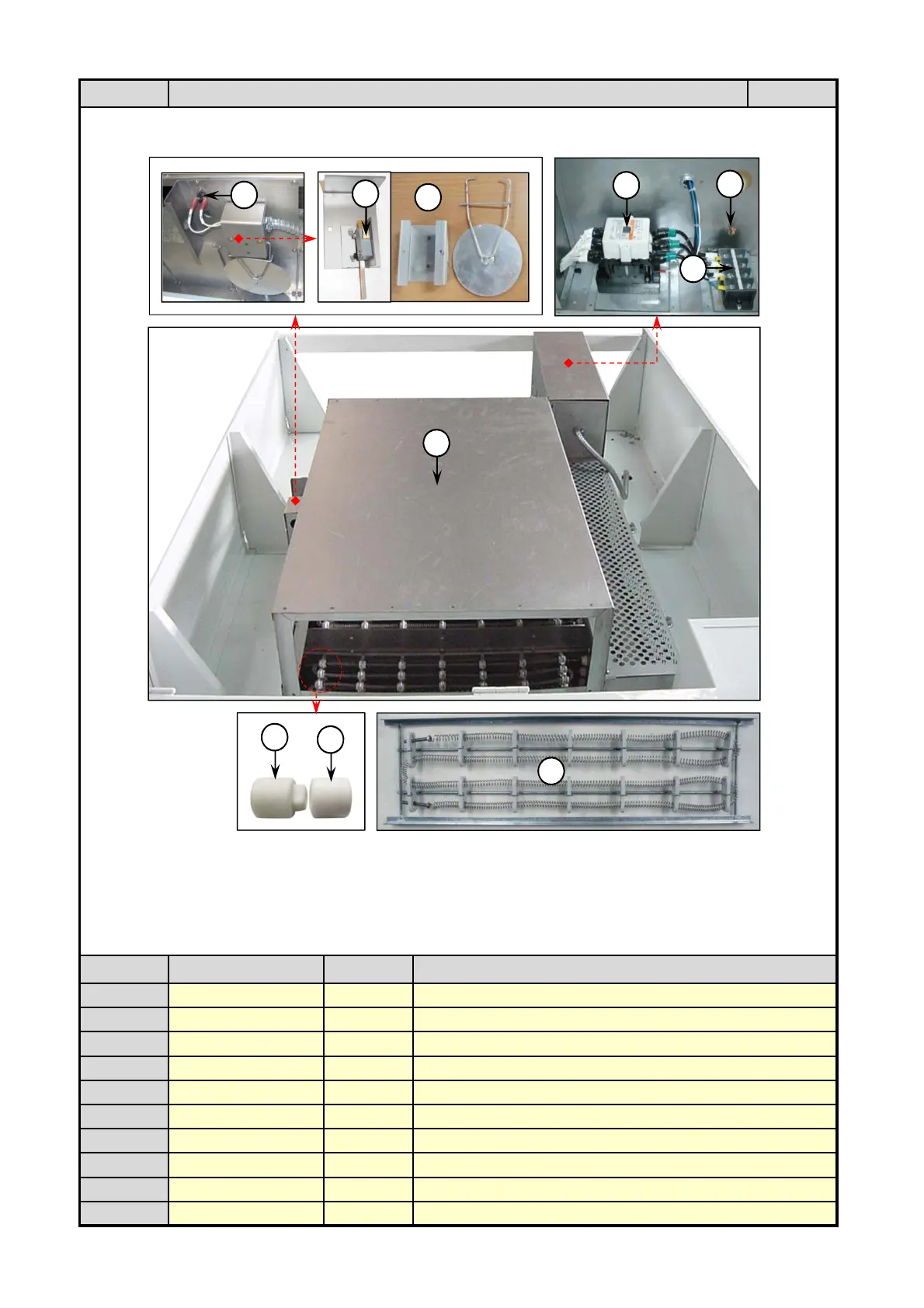

Top Side : Heating - Electric Element Unit
Description
5
7
4
2
1
6
3
9
8
10
