68
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA
Victrix Tera V2 35 Plus EU
Y1
Y2
2
3
4
6
0
10
20
30
40
50
60
70
0
10
20
30
40
50
60
70
0
200
400
600 800 1000
1200 1400
1600 1800
1
5
50

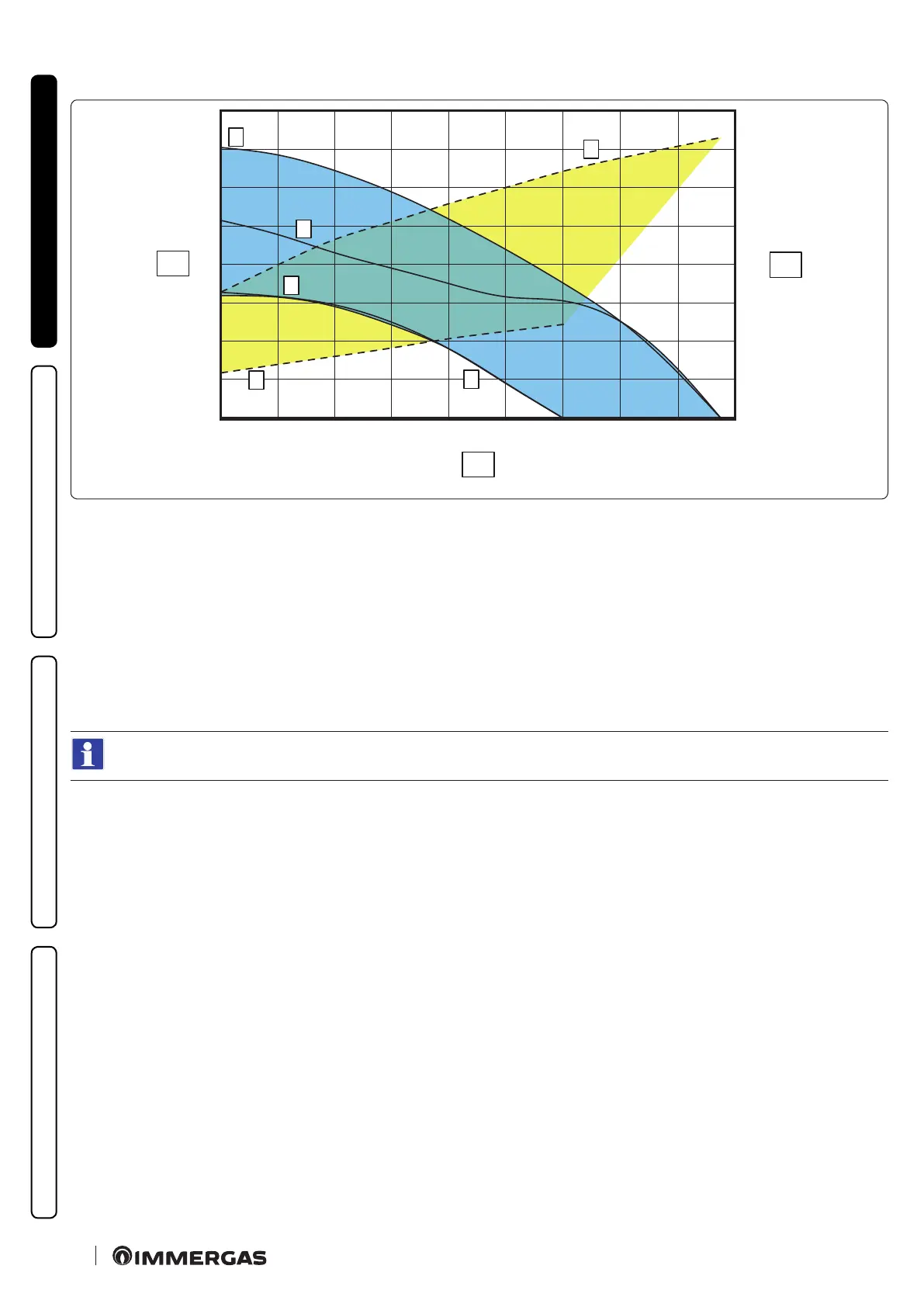

Key (Fig. 50)
1 = Head available to the system at speed 95% with by-pass closed
2 = Head available to the system at speed 95% with by-pass open
3 = Head available to the system at speed 65% with by-pass closed
4 = Head available to the system at speed 65% with by-pass open
5 = Circulator absorbed power at 95% speed with closed by-pass
6 = Circulator absorbed power at 65% speed with closed by-pass
Area between curves 1 and 3 = Available system head with bypass closed
Area between curves 2 and 4 = Available system head with bypass open
Area between curves 5 and 6 = Circulator absorbed power with bypass
closed
X1 = Flow rate (l/h)
Y1 = Head (kPa)
Y2 = Power absorbed by pump (W)
1.35 KITS AVAILABLE ON REQUEST
Check the complete list of kits available and which can be combined with the product, consult the Immergas website, the Im-
mergas Price List or the technical-commercial documentation (catalogues and data sheets).
