Immergas ZEUS Maior - Control Panel

2
STZM@ ed 05/04 ZEUS Maior @
Technical DocumentationTechnical Documentation

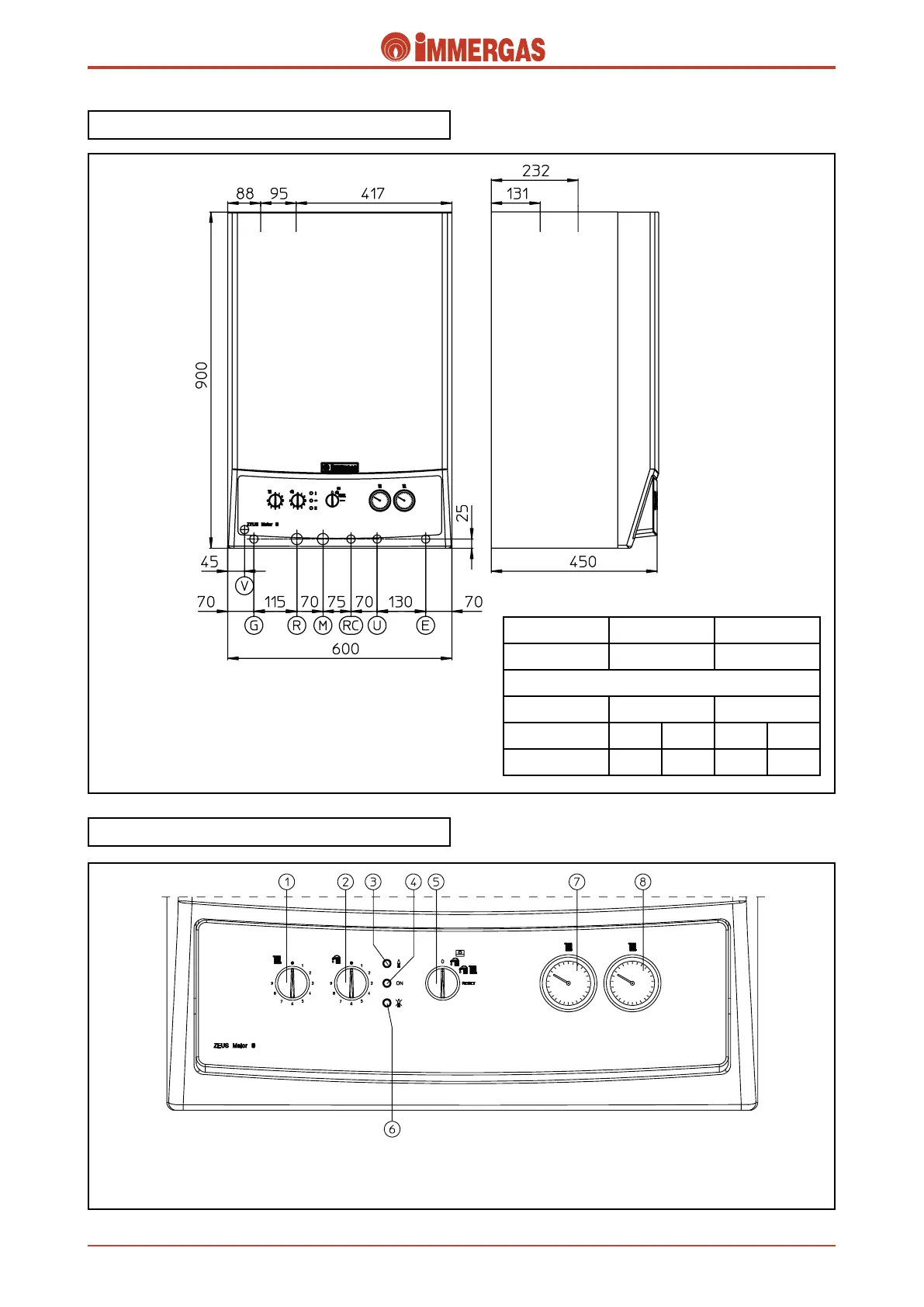

Main dimensions and connections.
Legend:
G - Gas supply
R - System return
M - System delivery
RC - Recirculation (optional)
U - Hot water outlet
E - Cold water inlet
V - Electrical supply
Control panel.
Legend:
1 - Central heating selector switch
2 - Domestic hot water selector switch
3 - Burner ON yellow indicator light
4 - Boiler ON green indicator light
5 - Domestic hot water/Remote Control-Domestic Hot Water
and Central Heating-Reset Switch 0
6 - Boiler shutdown red indicator light
7 - Boiler thermometer
8 - Boiler manometer
Height (mm) Width (mm) Depth (mm)
900 600 450
CONNECTIONS
GAS SYSTEM D.H.W.
G R M U E
1/2” 3/4” 3/4” 1/2” 1/2”
