Chapter 7 Usage of Various Functions
7-
ైై

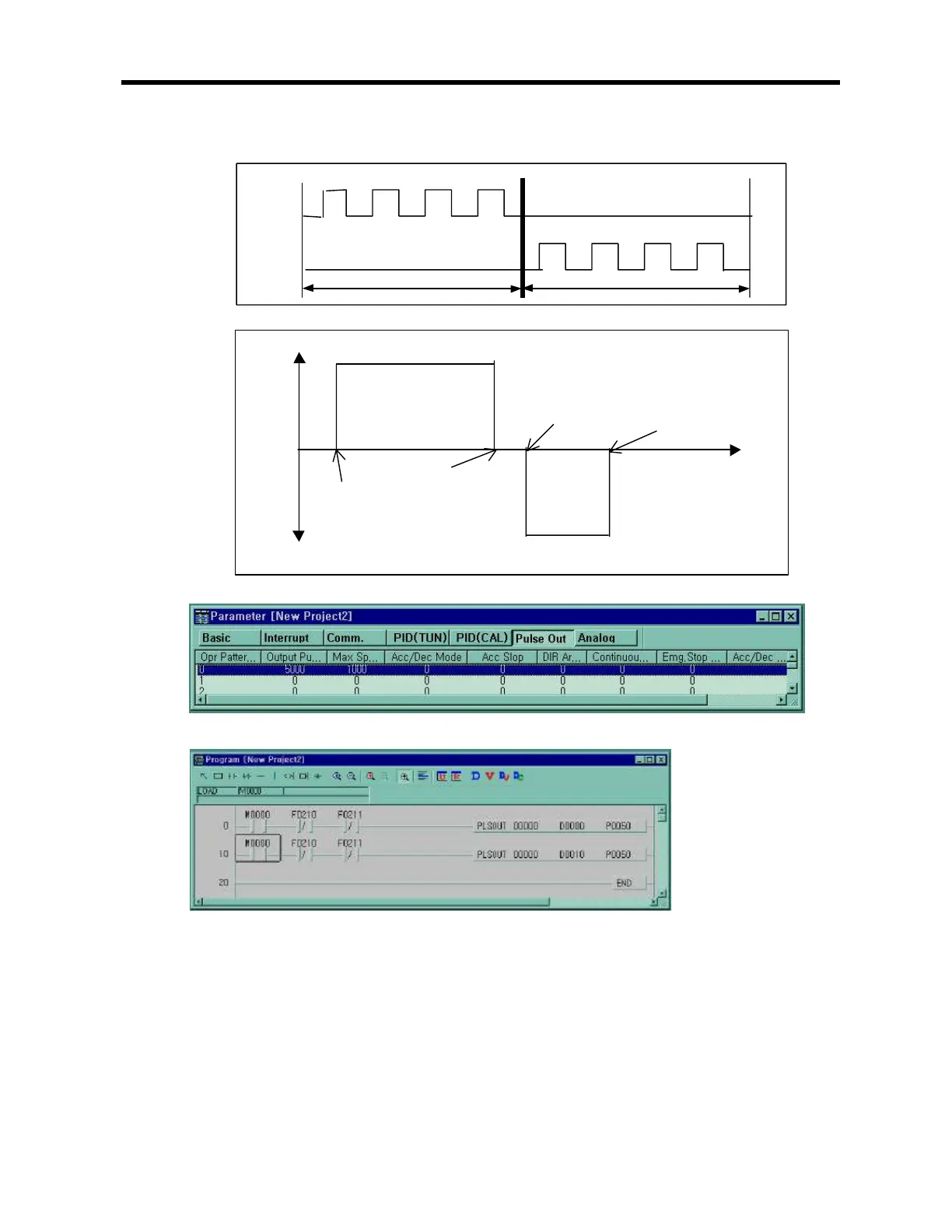

b) Driver gets input forward direction pulse and reverse direction pulse through different contact points.
Parameter setting
Program
F210 turns on while the pulse output is operating.
Forward operation Reverse operation
Reverse
direction
(P51)
Forward
direction
(P50)
Time
Forward
direction
Target velocity = 1Kpps
Forward dir.
Start
p
oint
Reverse
direction
Target
position=10000
Reverse dir. start
point
Target
position
=5000
Target velocity = 1Kpps
Velocit
y
Profile
