2.6 Structure diagram
Below is the layout figure of the inverter (take the inverter of 2.2kW as the example).
1
2
3
4
6
7
8
9
5
10

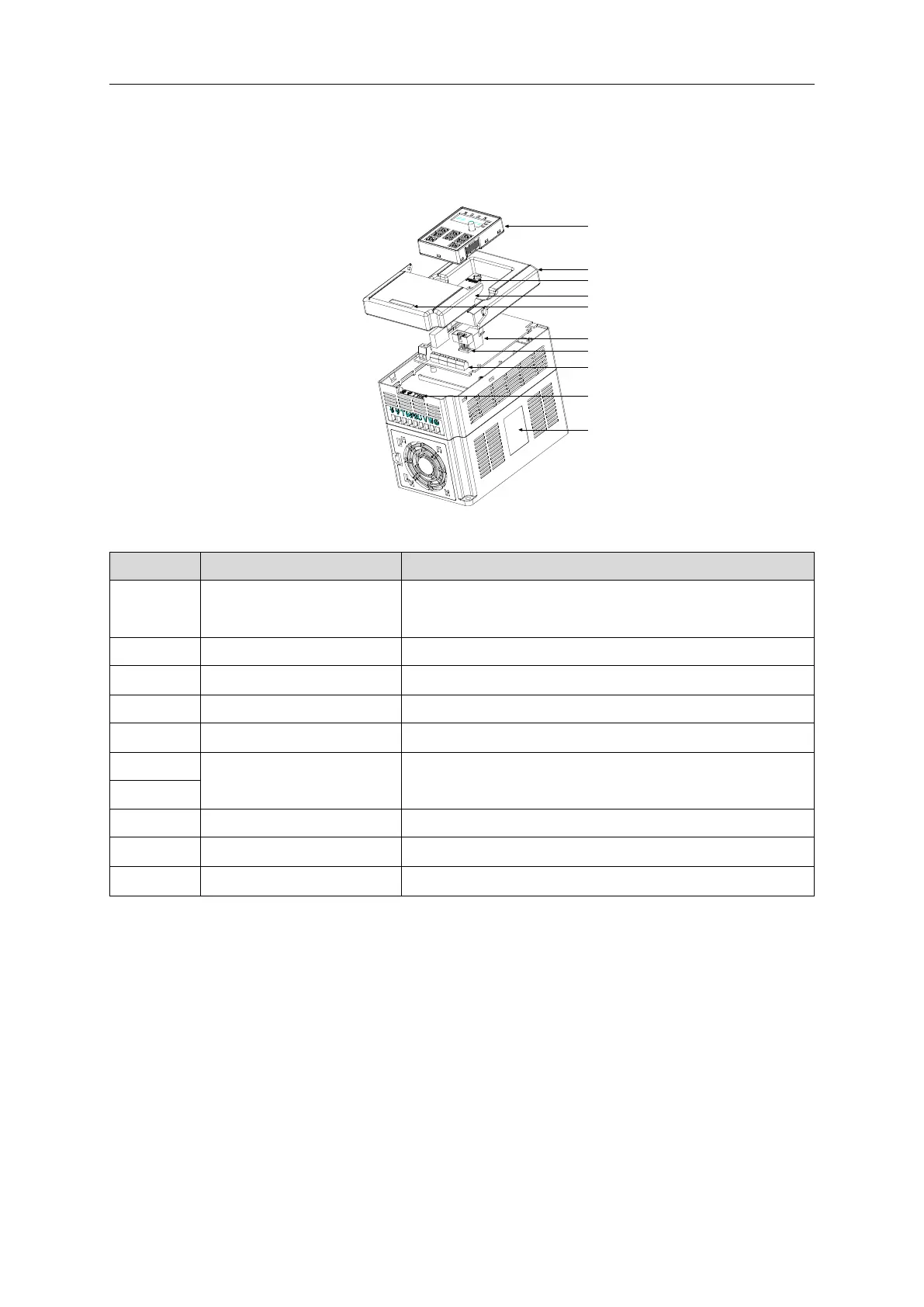

Fig 2-3 Product structure diagram
Serial No.
Name
Illustration
1
Keypad
See Keypad Operation Procedure for detailed information
2
Cover
Protects the internal parts and components
3
POWER indicator
POWER indicator
4
Side cover
Protects the internal components
5
Simple name plate
See Type Designation Key for detailed information
6
Keypad port
Connect the keypad
6 is for external installation
7
8
Main circuit terminals
See Electric Installation for detailed information
9
Control circuit terminals
See Electric Installation for detailed information
10
Name plate
See Product Overview for detailed information
