IMO iDrive2 XKL - Name Plate; Type Designation Key; Rated Specifications

iDrive2 inverters Product overview
10

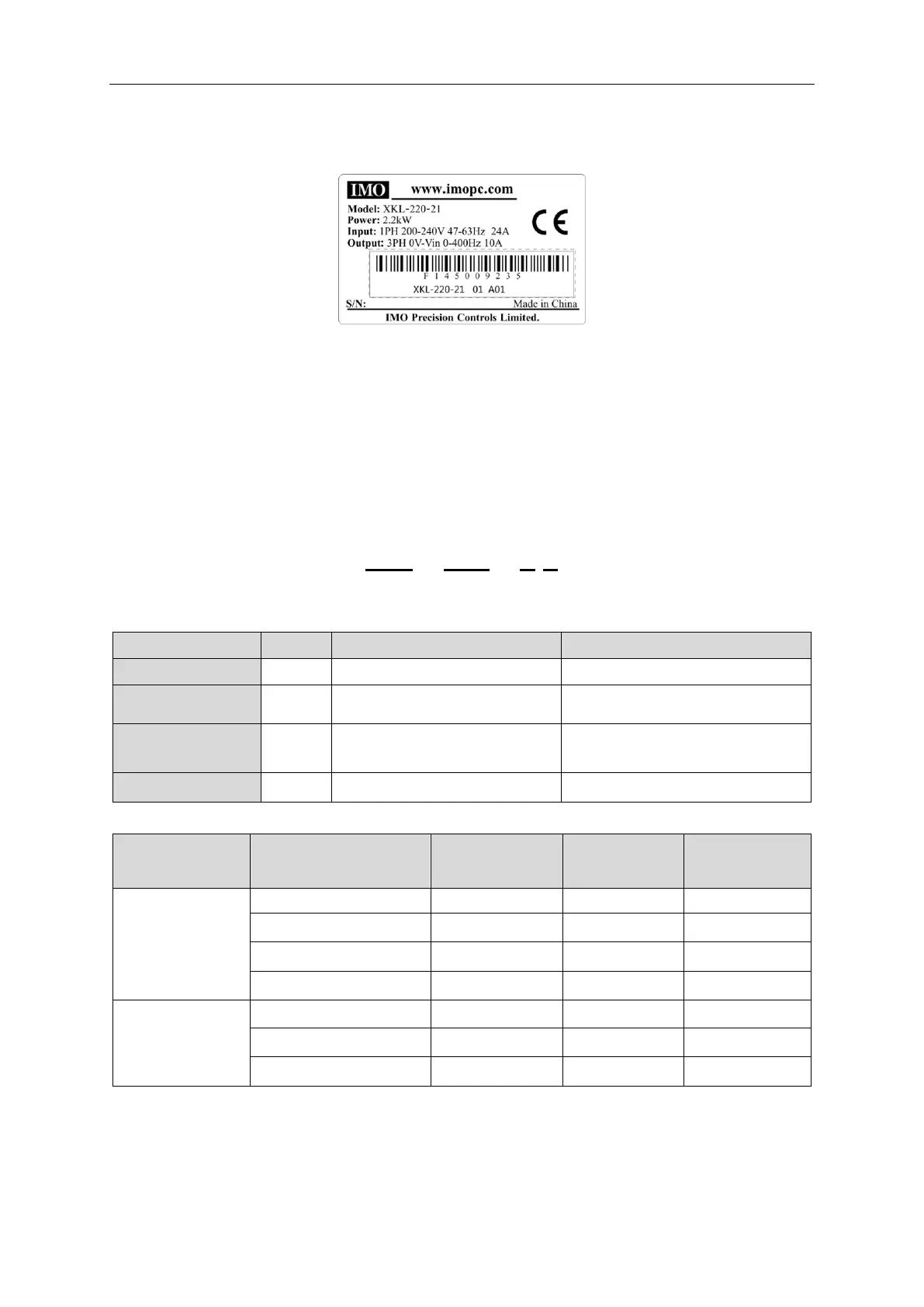

2.3 Name plate
Fig 2-1 Name plate
2.4 Type designation key
The type designation contains information on the inverter. The user can find the type designation on the type
designation label attached to the inverter or the simple name plate.
XKL – 220 – 2 1
① ② ③ ④
Fig 2-2 Product type
Field identification
Sign
Detailed description of the sign
Detailed content
Abbreviation
①
Product abbreviation
Series = XKL
Rated power
②
Power range
220 = 2.2kW
Voltage
③
Supply voltage
4: 380 (-15%)~440 (+10%)
2: 220 (-15%)~240 (+10%)
Phase
④
Input Phase
1 = 1Phase 3 = 3Phase
2.5 Rated specifications
Model
Output power (kW)
Input current (A)
Output current (A)
Single-phase
230V
XKL-040-21
0.4
6.5
2.5
XKL-075-21
0.75
9.3
4.2
XKL-150-21
1.5
15.7
7.5
XKL-220-21
2.2
24
10
Three-phase
400V
XKL-075-43
0.75
3.2
2.5
XKL-150-43
1.5
4.3
4.2
XKL-220-43
2.2
7.1
5.5
