iDrive2 inverters Function Parameters
26
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P00.14
Carrier
frequency
setting

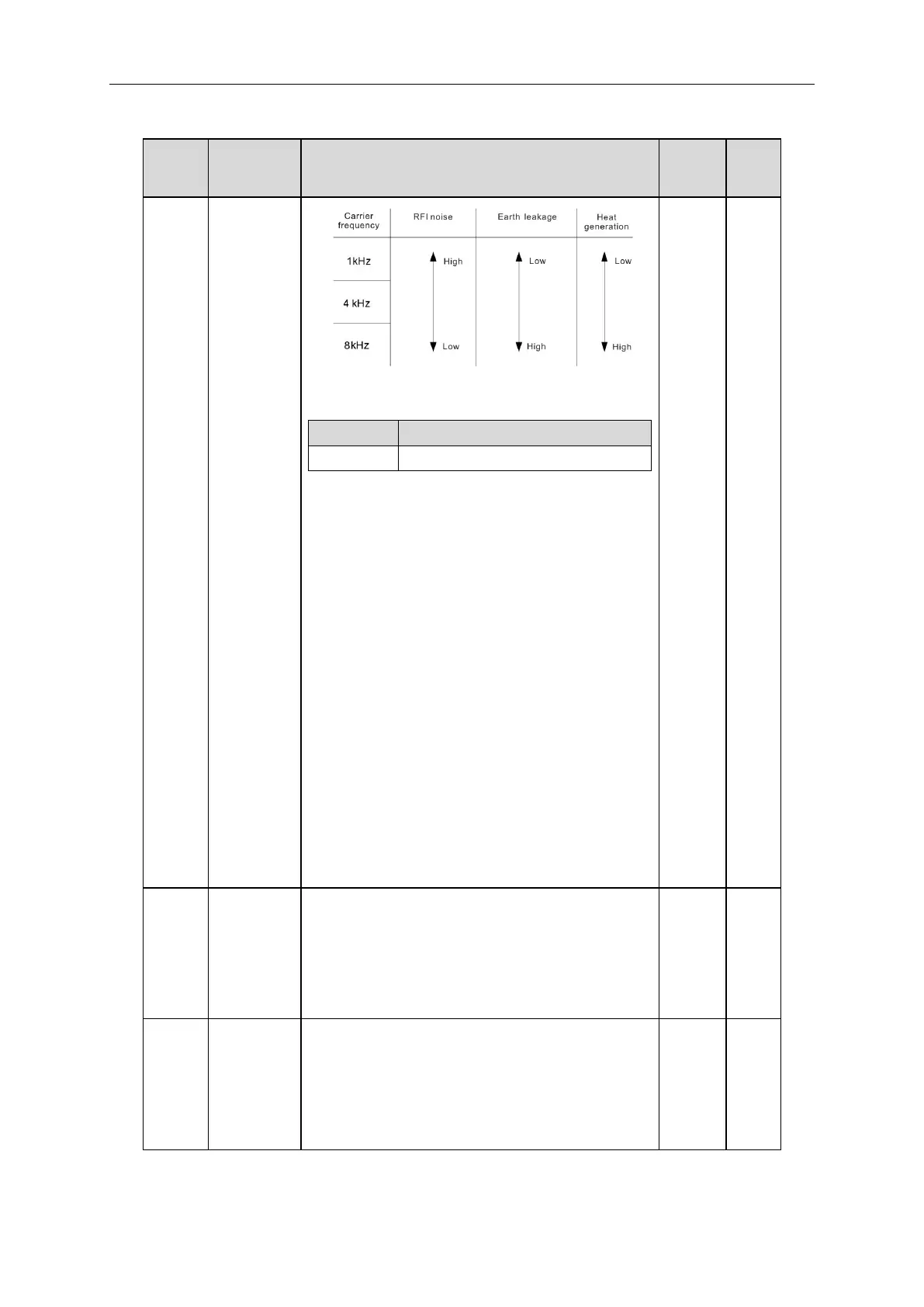

The relationship table of the motor type and carrier
frequency:
Motor type
The factory value of carrier frequency
0.2~2.2kW
4kHz
The advantage of high carrier frequency: ideal current
waveform, little current harmonic wave and motor noise.
The disadvantage of high carrier frequency: increasing
the switch loss, increasing inverter temperature and the
impact to the output capacity. The inverter needs to
derate on high carrier frequency. At the same time, the
leakage and electrical magnetic interference will
increase.
Applying low carrier frequency is contrary to the above,
too low carrier frequency will cause unstable running,
torque decreasing and surge.
The default setting of 4KHz is suitable for most general
applications and should not need to be changed.
When the frequency used exceeds the default carrier
frequency, the inverter needs to derate 20% for each
additional 1k carrier frequency.
Setting range:1.0~8.0kHz
Depend
on model
○
P00.16
AVR function
selection
0:Invalid
1:Valid during the whole procedure.
The auto-adjusting function of the inverter can cancel the
impact on the output voltage of the inverter because of
the bus voltage fluctuation.
1
○
P00.18
Function
restore
parameter
0:No operation
1:Restore the default value
2:Clear fault records
Note: The function code will restore to 0 after finishing
the operation of the selected function code.
0
◎
