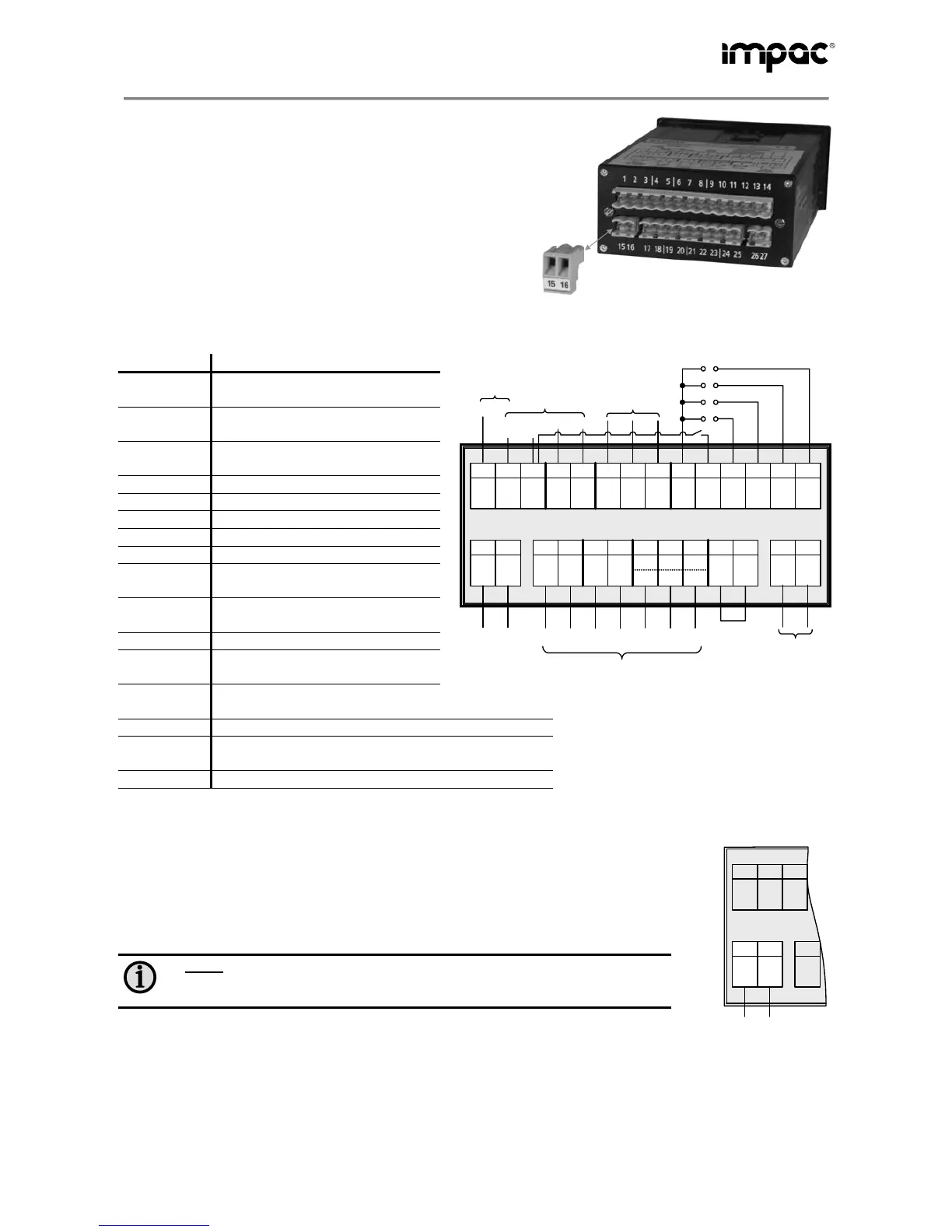

5.2 Electrical connections on the rear of the unit
All electrical connections are on the rear of the unit. Con-
nectors with screw terminals are fitted to the male connec-
tor. The connectors can be removed and combined into
appropriate connection groups for easier installation.
The conductor cross-section that can be used in the con-
nectors is 0.14 ... 2.5 mm², with ferrules: 0.5... 1.5 mm².
5.3 Overview of connections
Connections
Function
1 / 2
Alarm pyrometer
4...20mA, 2-wire
2 / 3
Alarm pyrometer,
supply 4-wire *
)
4 / 5
Alarm pyrometer,
analogue input 4-wire
6 / 7 / 8 PC interface, RS232
9 Reference for 11 to 14
10 / 3 "start / stop program" trigger
11 / 9 "program start" switched output
12 / 9 "generator on" switched output
13 / 9
"ready" switched output
(pulse length can be selected)
14 / 9
"safety shut-down triggered"
switched output
15 / 16 Power supply PI 6000
17 / 18 Supply (measurement
pyrometer) *
)
19 / 20
Analogue input 0/4... 20 mA
(measurement pyrometer)
14
13
12
11
10
9
Tx
8
GND
7
Rx
6
-
5
+
4
-
3
+
2
-
1
+
27
-
26
25
24
GND
23
Tx
B
22
Rx
A
21
+
20
-
19
+
18
-
17
+
16
-
15
Input
Power supply
18...30 VDC
18...30VDC
output
0/4…20mA
RS232 / 485
Measurement pyrometer
RS232
controller output
0/4…20mA
Alarm pyrometer
(optional)
4…20mA
2-wire
18...30VDC
output
0/4…20mA
4-wire
to PC
RS232
safety shut-down (output)
ready (output)
generator on (output)
program start (output)
ext. trigger (input)
21 / 22 / 23 Interface (measurement pyrometer)
24 / 25 Jumper for setting RS232 to the measurement
pyrometer
26 / 27 Output, controlled variable 0/4... 20 mA
*
)
Looped through from 15 / 16
5.3.1 Power supply
A voltage between 18 and 30 V DC is required to operate the PI 6000. The unit is
ready for use immediately if connected to the power supply. The unit does not have
an on/off switch; the power supply must be interrupted to switch off the unit.
Note:
The power supply to the PI 6000 is also used as the supply for the
measurement pyrometer and the analogue alarm pyrometer, both for the
two-wire and the 4-wire version.
3
2
1
17
+
16
-
15
Input
Power supply
18...30 VDC
