Programmable controller PI 6000
34
6.4 Starting the program
Following installation, select a language (German, French, English, Italian, Spanish) the first time the pro-
gram you start the program. (You can change the language again later.) Then the start page with the start

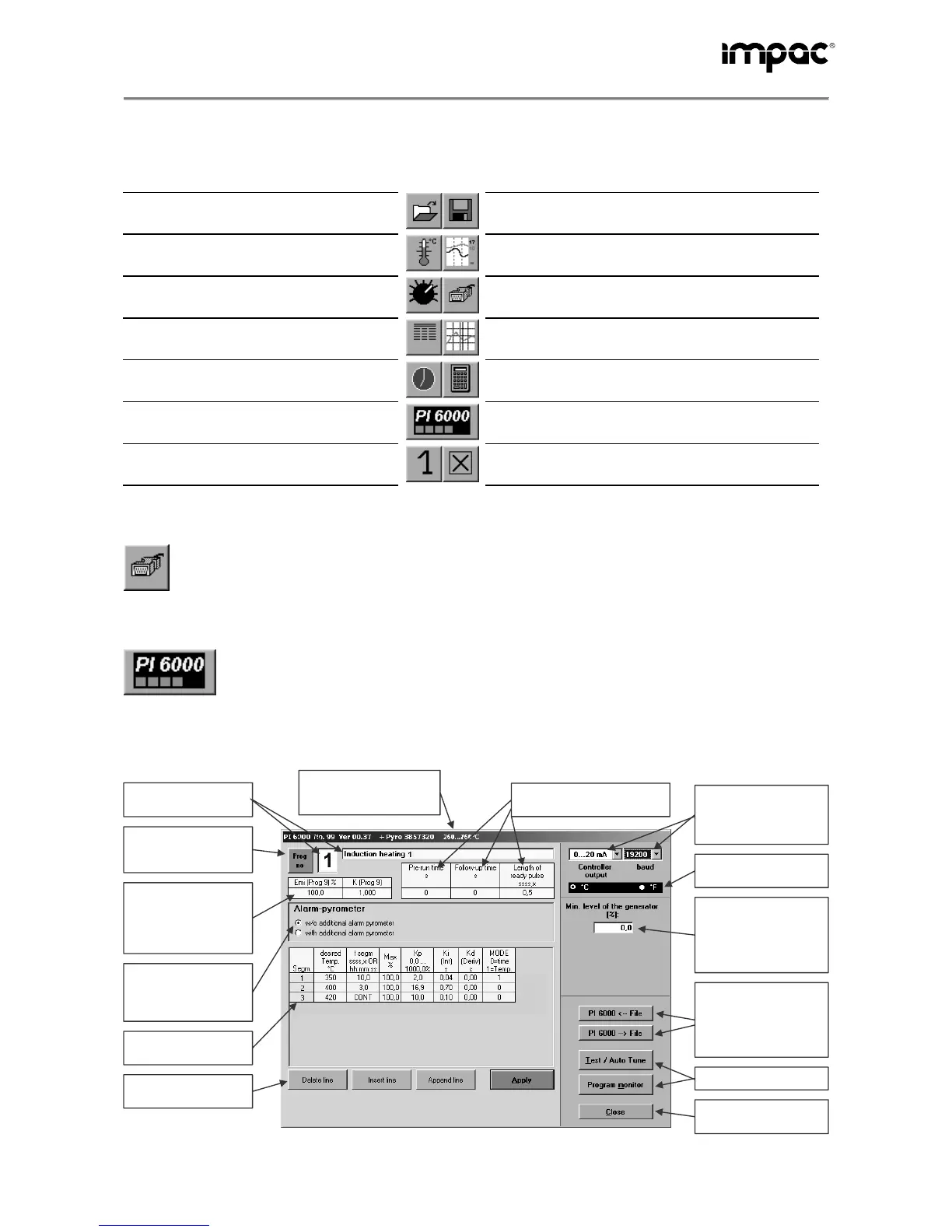

menu shown below appears:
Open file:
Open a saved file
Save as: Save the values measured for subse-
quent processing
Measurement (colour bars):
Measurement with colour bar display
Measurement (online graph):
Measurement with graphic display
Pyrometer parameters:
Device parameter settings
Computer: Selection of the interface, baud rate
and, if necessary, the PI 6000 address (for RS485)
Table: Analysis of the values measured
or saved in tabular form
Graph output: Analysis of values measured or
saved in a graph
Scanning interval: Times between
measurement sampling
IR computer: Calculated field of view diameter
for different measuring distances

Program controller PI 6000: Control program
preparation and control of the controller
Number of units: Number of units
connected (maximum two)
Close program:
Close the program InfraWin
6.5 Preparation
Before the program is used, the RS232 interface with which the PI 6000 is connected must first
be selected using Computer.
6.6 Overview of programming window
Click this button to open the programming window that is used to prepare the control pro-
gram for the PI 6000.
The overview below shows the programming window with a few example entries and short explanations.
A typical procedure is given in the steps that follow.
Current output for the
controller output as well
as baud rate to the
PI 6000
Temperature indication
and entry in °C or °F
Entry for the minimum
generator level, if it
cannot be controlled
continuously down to
0%.
A
ll settings and
programs found can be
saved in a file and
loaded into the PI 6000
later.
Close the setting window
for the programming
A
dditional information on the
use of the switched outputs
See 6.6.1
Temperature range for the
connected measurement
pyrometer
Edit programming
instructions
Boxes for entering
program instructions
A
ctivation or
deactivation of an
additional alarm
pyrometer
Direct entry of
emissivity
ε or K factor
for the measurement
pyrometer (depends on
t
yp
e of unit
)
Program selection:
steps through all
programs in order
A
rbitrary program name
for the current program
