Operation
24
6
IMT Analytics AG

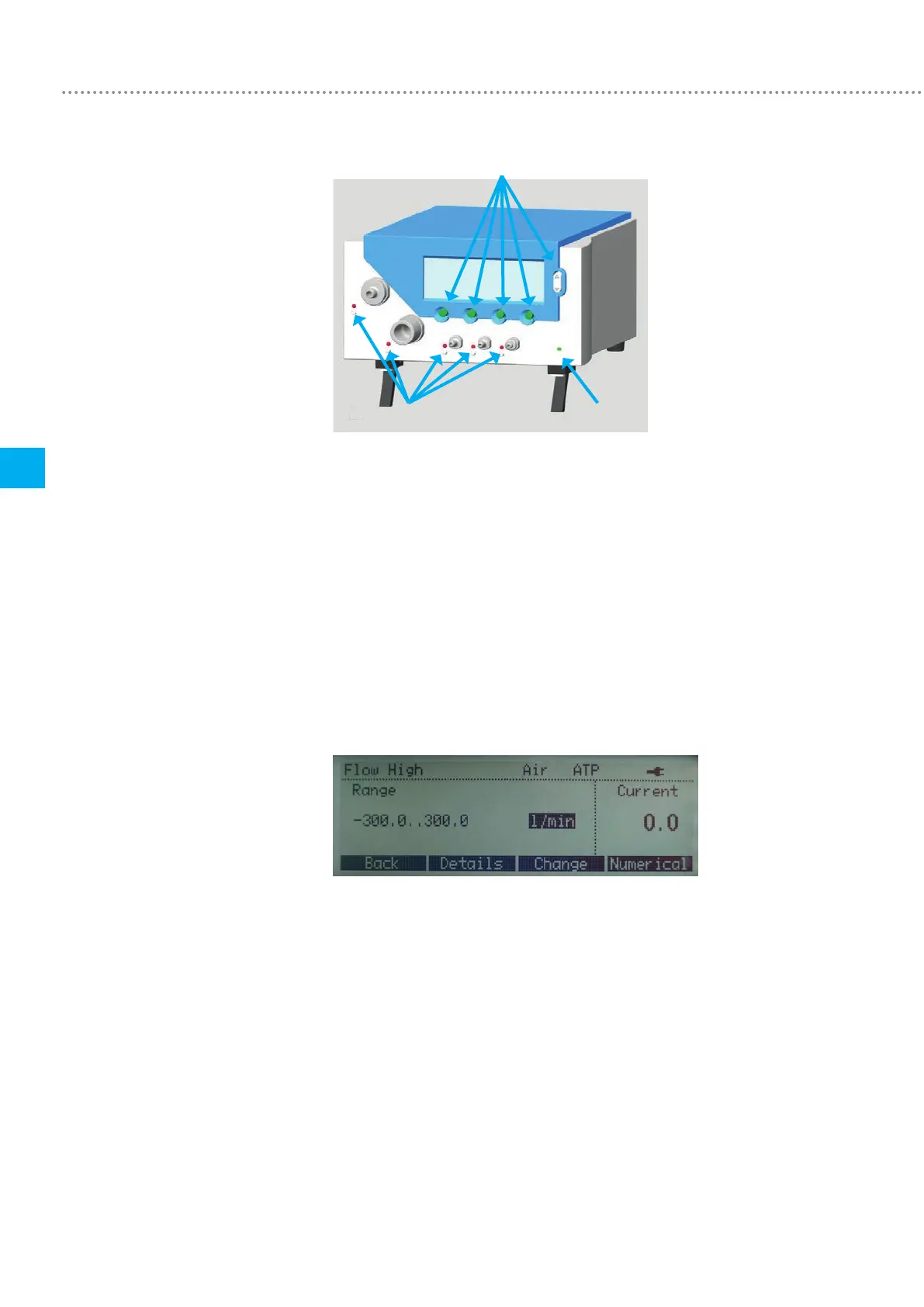

Control buttons
PowerDirect Access Control
Control buttons
The control buttons have not been assigned fixed functions. Allocation of the respec-
tive functions is shown on the display.
Direct Access Control (DAC)
Next to each mechanical port there is a Direct Access Control button (DAC). Infor-
mation associated with the mechanical port, e.g. measurement parameters, value
range, present reading, is shown on the display by pressing the relevant DAC. The
header of the display also shows the gas type and gas standard. An LED above each
DAC indicates whether the relevant port on the display screen is activated.
DAC screen of Flow High (Details shows information on the additional sensors in that measurement chan-
nel.)
Power
The LED indicates whether the device is switched on.
6.4 User controls
terminology
6.5 Specification of
user controls
