IMT 3820 User Manual

99903514:TELESCOPIC CRANE: 5-5
SECTION 5: DECALS

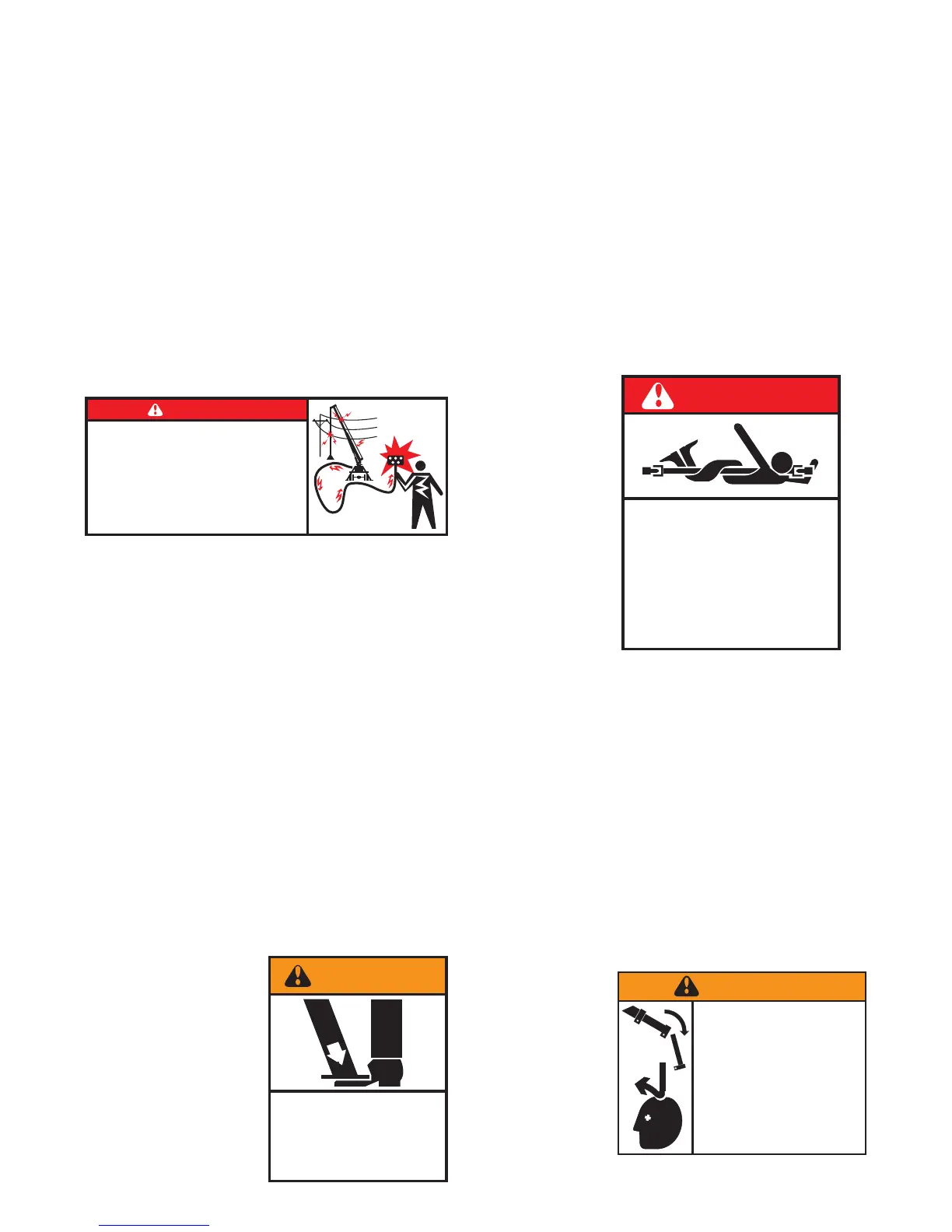

Figure E-6
DECAL: Rotating Driveline Hazard
PART NUMBER: 70392891
FUNCTION: To inform personnel of the hazard
associated with servicing an operating driveline or
PTO, the possible consequences should the hazard
occur, and how to avoid the hazard.
USED ON: Service body mounted Telescoping
Cranes that are driven by a PTO/pump system.
PLACEMENT: At or near the drive line.
QUANTITY: 1
20120104
Figure E-8
DECAL: Free Falling Manual Boom Extension(s)
Hazard
PART NUMBER: 70394443
FUNCTION: To inform the operator of precautions
necessary in the safe deployment of manually
operated extension booms, and the possible
consequences of not taking those precautions.
USED ON: Service body mounted Telescoping
Cranes.
PLACEMENT: At or near the manual boom
extension(s) retention mechanism(s).
QUANTITY: 1
Figure E-5
DECAL: Electrocution Hazard via Remote Control
PART NUMBER: 70394447
FUNCTION: To inform the operator of the lack of
protection from electrocution afforded by the remote
control handle, the possible consequences of the crane
becoming electrically charged, and how to avoid the
hazard.
WHERE USED: Service body mounted Telescoping
Cranes - remote controls
PLACEMENT: On the hand held controller.
QUANTITY: 1
Figure E-7
DECAL: Stabilizer Foot Crushing Hazard
PART NUMBER: 70392864
FUNCTION: To inform the operator and other
personnel in the work area of the hazard associated
with the operation of the stabilizers, the possible
consequences should the hazard occur, and how to
avoid the hazard.
USED ON: Service body mounted Telescoping
Cranes
PLACEMENT: On each stabilizer.
QUANTITY: 2
70394447
DANGER
Electrocution Hazard
Tethered remote control is not insulated.
Never allow this vehicle, equipment or
load to become charged while you are
holding this control.
Death or serious injury will result from
touching this control if this vehicle
becomes charged.
DANGER
70392891
Rotating Shaft Hazard
Rotating parts will injure or kill.
Do not work around shafts
Keep body, hands, hair,
clothes away.
with engine on.
WARNING
70392864
Crush Hazard
Before extending stabilizers:
Look around vehicle.
Clear area of all people.
Extending stabilizers on people
may injure or kill.
Unsecured boom extensions
WARNING
70394443
Falling Boom Extension Hazard.
Falling boom extensions may
may fall without warning.
Do not stand in front of
extension(s) when removing
Do not let extension(s) free fall.
Install retention pin(s) prior to
operation.
injure or kill.
retention pin(s).
