99903514:TELESCOPIC CRANE: 5-6
SECTION 5: DECALS

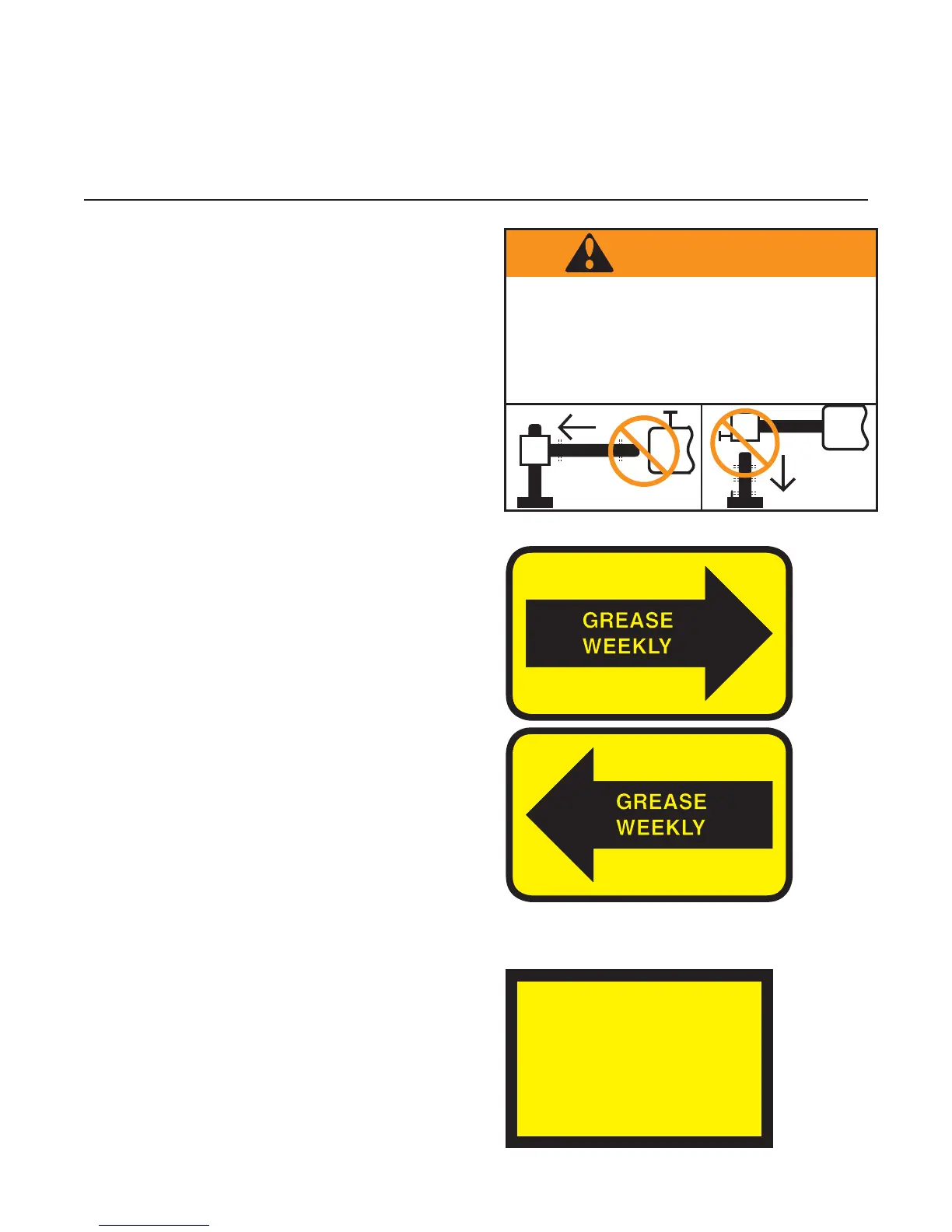

Figure E-9
DECAL: Warning - Manual Stabilizers
PART NUMBER: 70391598
FUNCTION: To warn the operator of precautions
necessary in the deployment of manual stabilizers
and to instruct in their use.
USED ON: All cranes equipped with manual
stabilizers.
PLACEMENT: On each stabilizer.
QUANTITY: 1 per stabilizer leg.
Figure E-10
DECAL: Grease Weekly - Left Arrow
PART NUMBER: 70391612
DECAL: Grease Weekly - Right Arrow
PART NUMBER: 70391613
FUNCTION: To inform maintenance personnel of the
location and necessity to apply grease to zerks on a
weekly basis.
USED ON: All cranes.
PLACEMENT: At grease zerks with arrow pointing
toward the zerk.
QUANTITY: 1 per grease zerk
Figure E-11
DECAL: Grease Worm Drive Bearings
PART NUMBER: 70395090
FUNCTION: To inform and remind maintenance
personnel to grease worm drive bearing every three
months.
USED ON: All cranes with worm drive bearings.
PLACEMENT: On gear cover
QUANTITY: 1 per grease zerk
20120104
Grease Worm Drive Bearings
every 3 months.
Apply 3 pumps of
Extreme Pressure (EP2) grease,
then rotate crane fully.
70395090
5-3. INSTRUCTIONAL DECAL DESCRIPTIONS
Shown in this section are instructional decals which may be affixed to your crane. Some are relevant to
maintenance while others focus on operation. They are provided here as reference in the understanding
of their purpose and placement.
70391598
WARNING
AVOID INJURY
Stabilizer arm or stabilizer leg may fall if
overextended. NEVER extend stabilizer arm
sideways beyond the last pin hole. ALWAYS
hold the handle on the stabilizer foot to
prevent stabilizer leg from falling out.
To Next Page
