2.

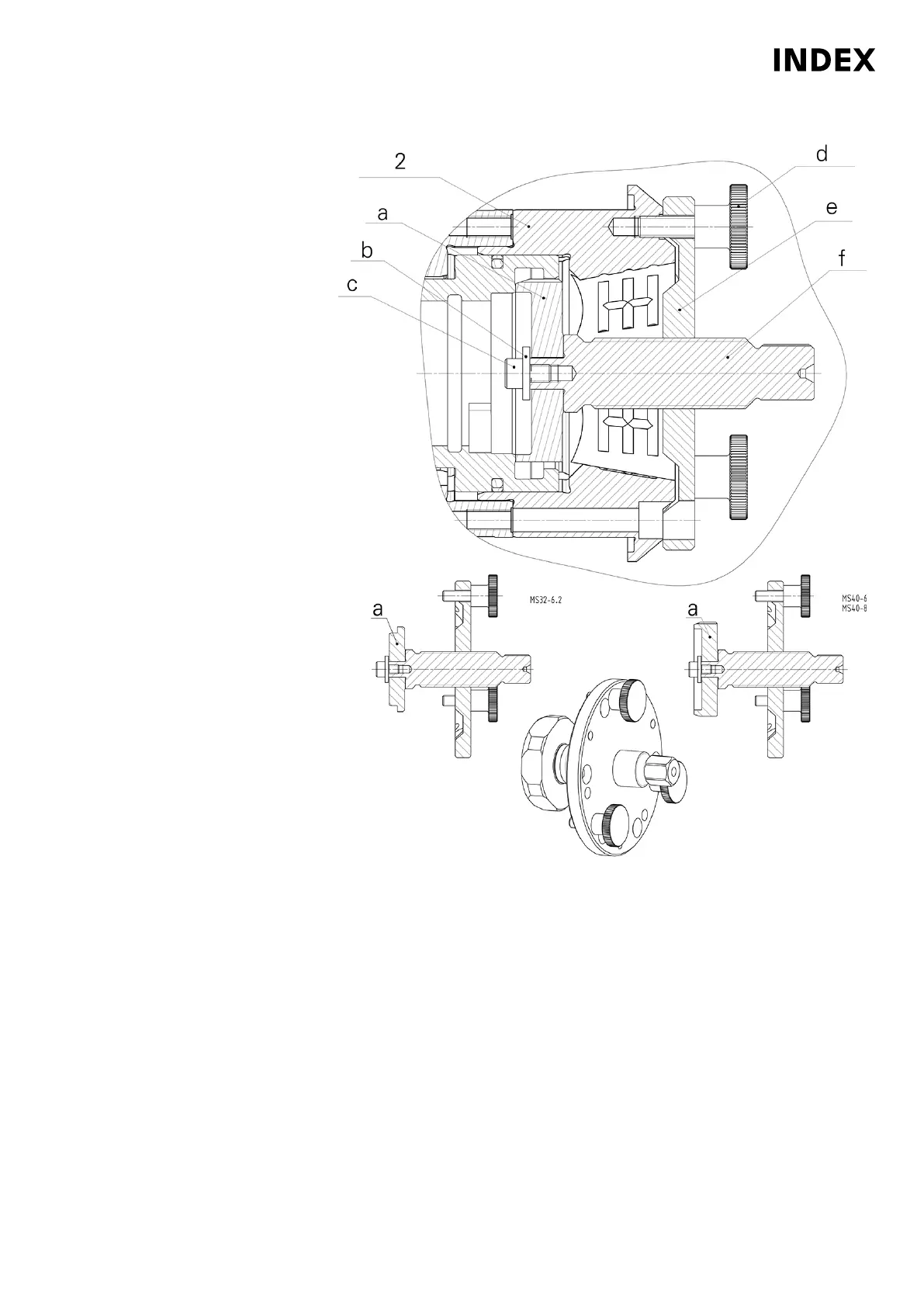

Removal tool for dismantling the clamping element holder for standard collet clamping
1
-
2 Clamping element holder
a Thrust block
b Washer
c Cyl. head screw
d Knurled screw
e Disk
f Screw spindle
Removing the clamping element holder with removal tool. Select the respective
thrust block (a) and screw it to the removal tool. Then mount the removal tool to
the clamping element holder using the 3 knurled screws (d).
