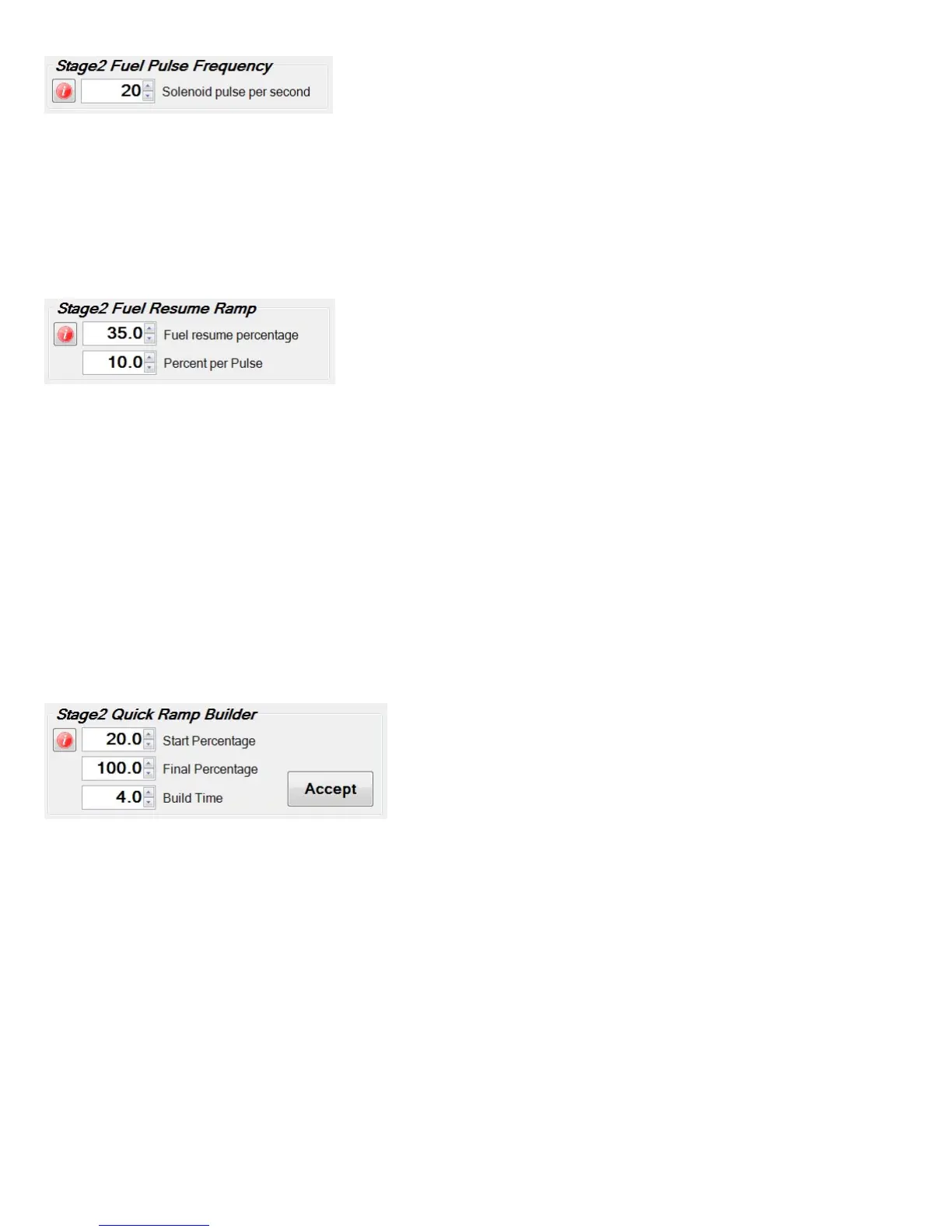

Important—the “All Solenoids use Stage1 Nitrous pulse frequency.” opon must be un‐checked (off) and the “Stage2 Ni‐
trous and Fuel Solenoids independent frequency.” must be selected for the feature to enabled. When this feature is ena‐
ble the fuel solenoid frequency (hertz) can be adjusted independently of the nitrous frequency (hertz).
The solenoid pulse frequency (or also known as Hertz) is how many mes the solenoids open and close when not at 0 or 100 percent
operaon. Example ‐ pulse frequency set to 10 hertz and 50 percent, the solenoids would open and close 10 mes per second. Total
me for each pulse = 1 / 10 = .1 second, total me solenoid would be on = .1 * .50% = .05 second.
Resume Start Percent ‐ This seng determines the percent the Stage2 Fuel resumes at if the user has to li the throle during Acva‐
on. This seng is only valid if the Hold And Wait opon is ON. This seng is used with the Resume Percent per Pulse seng to build
a Resume Ramp. If the Resume Start Percent is greater than the current output percent the Resume Ramp is ignored.
Valid range ‐ 10% to 100% in .1% increments. A seng of 100% disables this feature.
Resume Percent per Pulse ‐ This seng determines the rate at which the Nitrous Resumes if the user lis the throle during Acva‐
on. This seng is used with the Resume Start Percent to build a Resume Ramp. This allows the user to adjust how quick the fuel
comes back on if the Acvaon signal is removed.
Example ‐ 10% per pulse would increase the rate 10% for each pulse starng at the Resume Start Percent seng. 35% Resume and
then each pulse of the solenoid would increment 10% unl the seng in the ramp is is achieved. Aer the resume ramp is completed
the normal build me ramp is followed.
Valid range ‐ 10% to 50% in .1% increments.
Quick Ramp Builder ‐ Use this selecon to do quick progressive setups. This feature allows the fuel to be setup using a Start Percent‐
age, Final Percentage, and a Build Time.
Start Percentage ‐ This seng determines the ramp Starng Percentage. The Start Percent can be less than or greater than the Final
Percent seng. If the Start Percent is greater than the Final Percent the ramp will progress backwards.
Valid range ‐ 0% to 100% in .1% increments.
Final Percent ‐ This seng determines the ramp Final Percentage. The Final Percent can be less than or greater than the Start Percent
seng. If the Start Percent is greater than the Final Percent the ramp will progress backwards.
Valid range ‐ 0% to 100% in .1% increments.
Build Time ‐ This seng determines the me it takes for the fuel to ramp from the Start Percent to the Final Percent sengs. A short
Build Time will make the fuel ramp more aggressive and a longer Build Time will make it less aggressive.
Valid range ‐ .200 to 9.900 seconds in .1 second increments.
