Stage1 +12 Volt Timer Output Wiring
Stage2 +12 Volt Timer Output Wiring
Relay Ground Output Wiring
This output provides +12 volt at 1 amp maximum, there is an internal 1k ohm resistor to ground so the output is not floang when in
the off state. If your ignion and/or ignion ming controller is acvated by a +12 volt signal the 20ga Blue Stage1 Output wire can be
connected directly to retard acvaon.
Important—always test for proper ming retard operaon before spraying nitrous! You can use a ming light or a data logger if it is
equipped to log ignion ming. Do a dry test (engine running, solenoids unplugged) to confirm proper ming retard.
This output provides +12 volt at 1 amp maximum, there is an internal 1k ohm resistor to ground so the output is not floang when in
the off state. If your ignion and/or ignion ming controller is acvated by a +12 volt signal the 20ga Purple Stage2 Output wire can
be connected directly to retard acvaon.
Important—always test for proper ming retard operaon before spraying nitrous! You can use a ming light or a data logger if it is
equipped to log ignion ming. Do a dry test (engine running, solenoids unplugged) to confirm proper ming retard.
This output provides a ground with a 1 amp
maximum load.
If you are driving an LED shi light and it draws
less than 1 amp of current it can be connected
directly to the Brown wire with no relay needed.
If the load is over 1 amp a relay must be used.

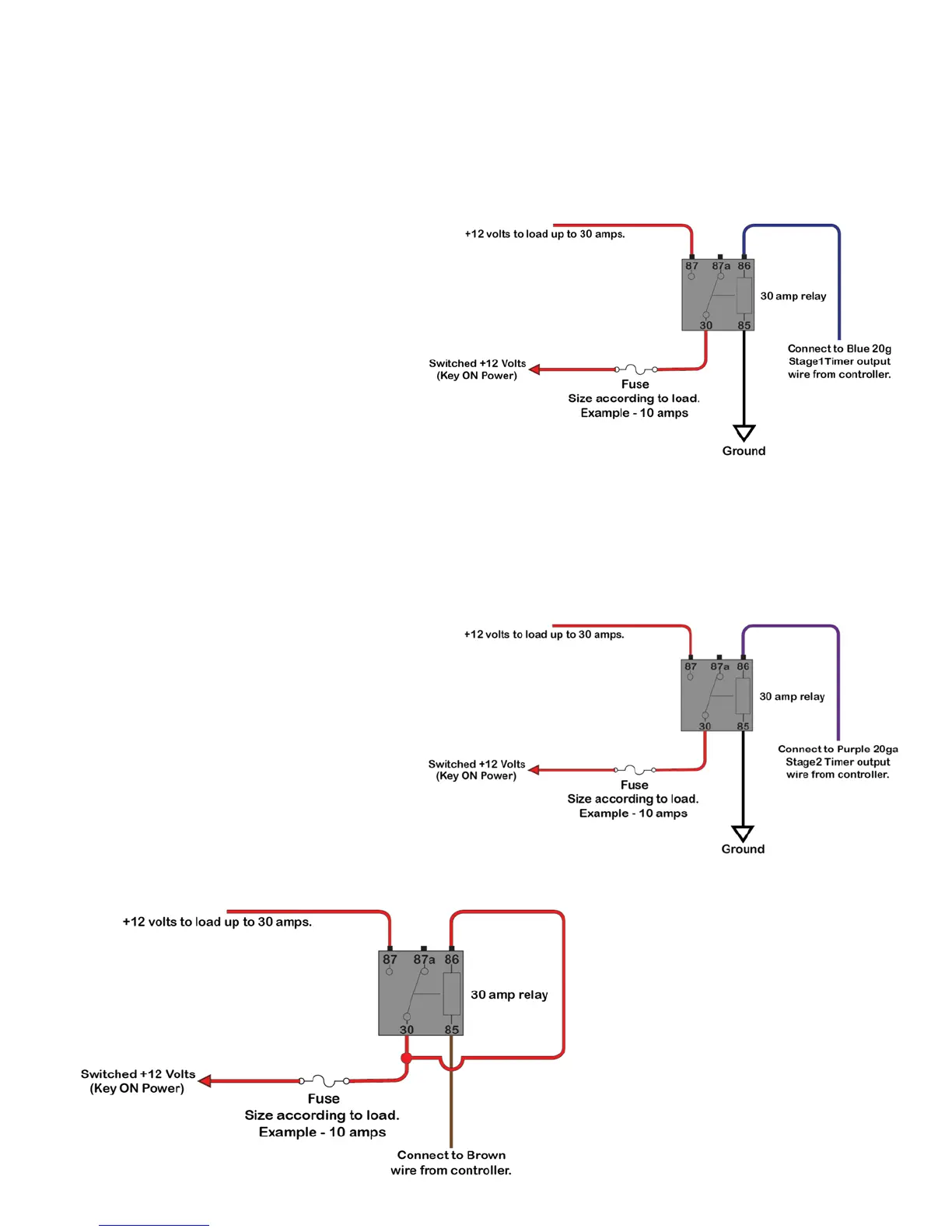

To control a load greater than 1 amp a relay will need
to be wired into the system as outlined to the right.
To control a load greater than 1 amp a relay will need
to be wired into the system as outlined to the right.
