Push down on the base of the restraint (with knee or
hand) whilst pulling the sash section of the vehicle
belt rmly up in direction of the blue arrow in Figure 4.
(This will tighten the lap belt across the seat base).
Whilst continuing to pull the sash section up, attach
the Safe Grip red belt clamp on the sash section
ONLY, as close as possible above the buckle tongue
assembly. (Refer to Figure 5 and Instruction for
installing the Safe Grip red clamp below)
Ensure the excess slack in the sash belt, is fed back
towards the seat belt.
Step 4:
Step 5:
Pass lap
and sash belt
through the seat.
Note: Ensure the
belts are under
foam padding.
Buckle & Tongue
Assembly
Lap Belt
& Sash Belt
“CLICK”
PULL
PRESS
SAFE GRIP BELT CLAMP
The Safe Grip (red belt clamp) locks the
lap belt to ensure a rm installation, and
avoids slack in the lap belt.
To install the Safe Grip (red belt clamp),
open it and clamp the “sash section”
ONLY of the vehicle seat belt by closing
the barrel section of the red belt clamp in
the direction of arrow 1 in Figure 5 and
then locking with the toggle section by
pushing in the direction of arrow 2 in
Figure 5 when the Safe Grip (red belt
clamp) is secured in place, the lap section
is now tightly holding your child restraint in
place, independent of the sash section.
The Safe Grip (red belt clamp) must be
removed when the child restraint is not
installed to allow other users to use the
seat belt as a lap/sash seat belt. Always
keep the Safe Grip (red belt clamp) in
pocket provided when not in use.

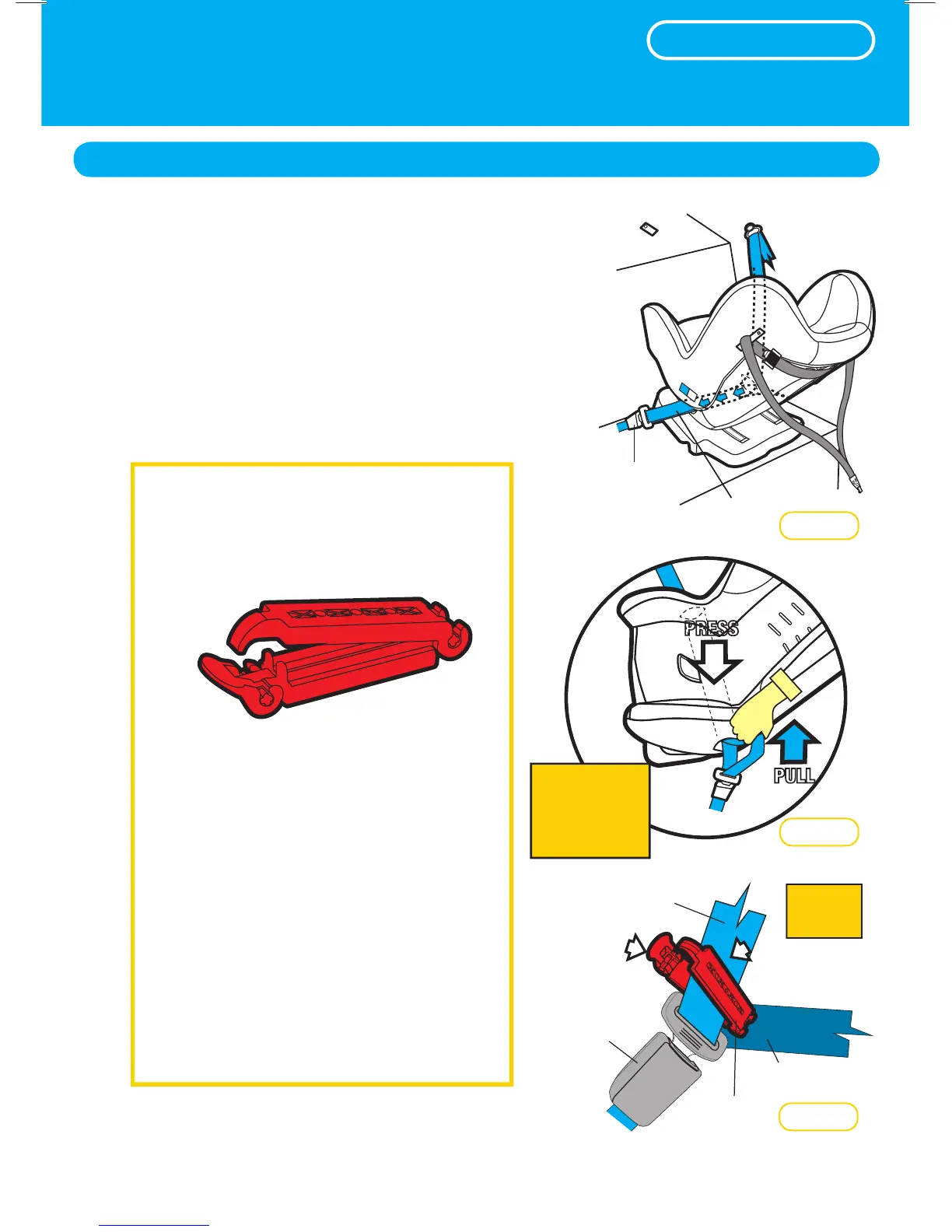

Figure 3
Figure 4
TOGGLE
SECTION (2)
LAP SECTION
BARREL
SECTION (1)
SAFE GRIP (B)
(red belt clamp)
ATTACH TO
SASH SECTION
ONLY
ATTACH TO
SASH SECTION
ONLY
SASH SECTION
BUCKLE (A)
(AND TONGUE)
Figure 5
Installing in Vehicle
Installation
Infant Seat
NOTE: Do not place the Safe Grip (red belt clamp)
around both the lap and sash sections of the belt. This
could cause the Safe Grip (red belt clamp) to break.
REMOVE ALL
SLACK FROM
SEATBELT
