Buckle & Tongue
Assembly
Top Tether
Strap Guide
Attachment Clip
Safe Grip
(red belt clamp)
Lap Belt
& Sash Belt

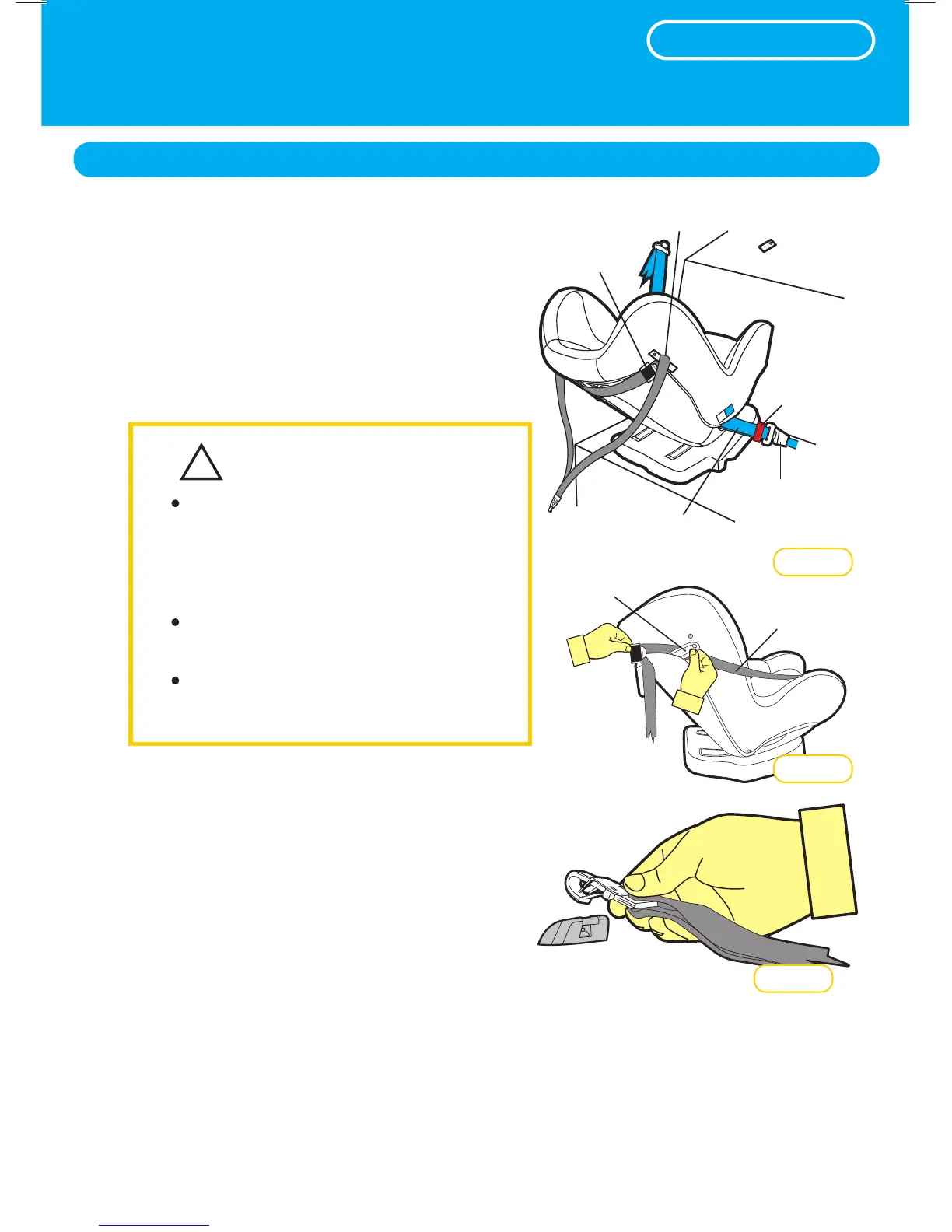

Figure 6
Adjuster
Installing in Vehicle
Installation
Infant Seat
Figure 7
Figure 8
Step 5:
Step 6:
Locate the adjuster at the side of the restraint and
secure using the Top Tether Strap Guide (refer
Figure 6 & 7).
Hook the attachment clip to the upper anchor tting
(refer Figure 8).
Ensure there are no twists in the top tether strap.
Note: If no upper anchorage tting is available refer
to Pages 54 & 55.
IMPORTANT
!
The purchaser should check the
measurements between the front of the
seat back of the rear seat and all front
seats in the car in which the child restraint
is intended to be used, to ensure that the
space is sufcient.
Care and attention should be given to
sufcient ventilation and shading of the
baby.
Always secure the loose end of the top
tether strap to prevent it hanging out of
the car or being accessible by the child.
Top Tether
Strap
Top Tether
Strap Guide
