42
Ordercode: 41507
Infinity S601 Profile
Channel 14 – Yellow Dimmer intensity CH6 and CH8 must be open
0-255
Gradual adjustment Yellow from 0-100%
Channel 15 – Yellow Dimmer intensity 16 bit CH6 and CH8 must be open
Channel 16 – CTO Dimmer intensity CH6 and CH8 must be open
0-255
Gradual adjustment CTO from 0-100%
Channel 17 – CTO Dimmer intensity 16 bit CH6 and CH8 must be open
Channel 18 – CMY macros CH6 and CH8 must be open
0-9
Not functional
10-127
CMY colors
128-255
CMY macro, from fast to slow

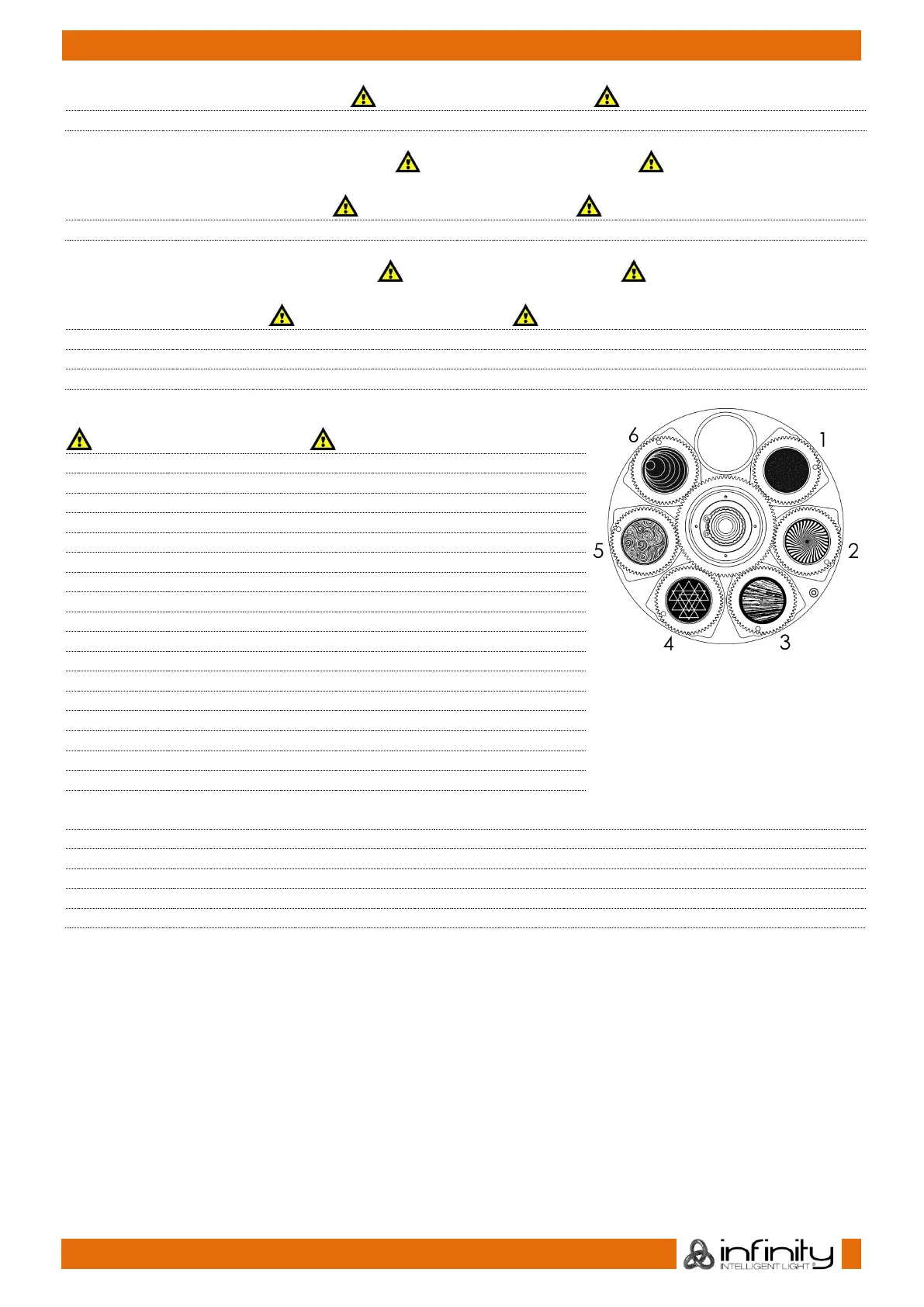

Channel 19 – Rotating Gobo wheel 1
CH6 and CH8 must be open
0-8
Open
9-17
Gobo 1 (Astroids)
18-26
Gobo 2 (Psycho)
27-35
Gobo 3 (Brushed)
36-44
Gobo 4 (Traingles)
45-53
Gobo 5 (Baroc)
54-63
Gobo 6 (Spiral)
64-73
Rotating Gobo 6 shake effect, from slow to fast
74-82
Rotating Gobo 5 shake effect, from slow to fast
83-91
Rotating Gobo 4 shake effect, from slow to fast
92-100
Rotating Gobo 3 shake effect, from slow to fast
101-109
Rotating Gobo 2 shake effect, from slow to fast
110-118
Rotating Gobo 1 shake effect, from slow to fast
119-127
Open
128-190
Clockwise gobo flow, from fast to slow
191-192
Stop
193-255
Counterclockwise gobo flow, from slow to fast
Channel 20 – Gobo rotation (gobo wheel 1)
0-45
Gobo indexing
46-126
Clockwise gobo rotation, from fast to slow
127-130
Stop
131-211
Counterclockwise gobo rotation, from slow to fast
212-255
Gobo wheel bounce effect, from small to big amplitude
Channel 21 – Gobo rotation 16 bit (gobo wheel 1)
