Infinity S601 Profile - Page 44

43
Ordercode: 41507
Infinity S601 Profile

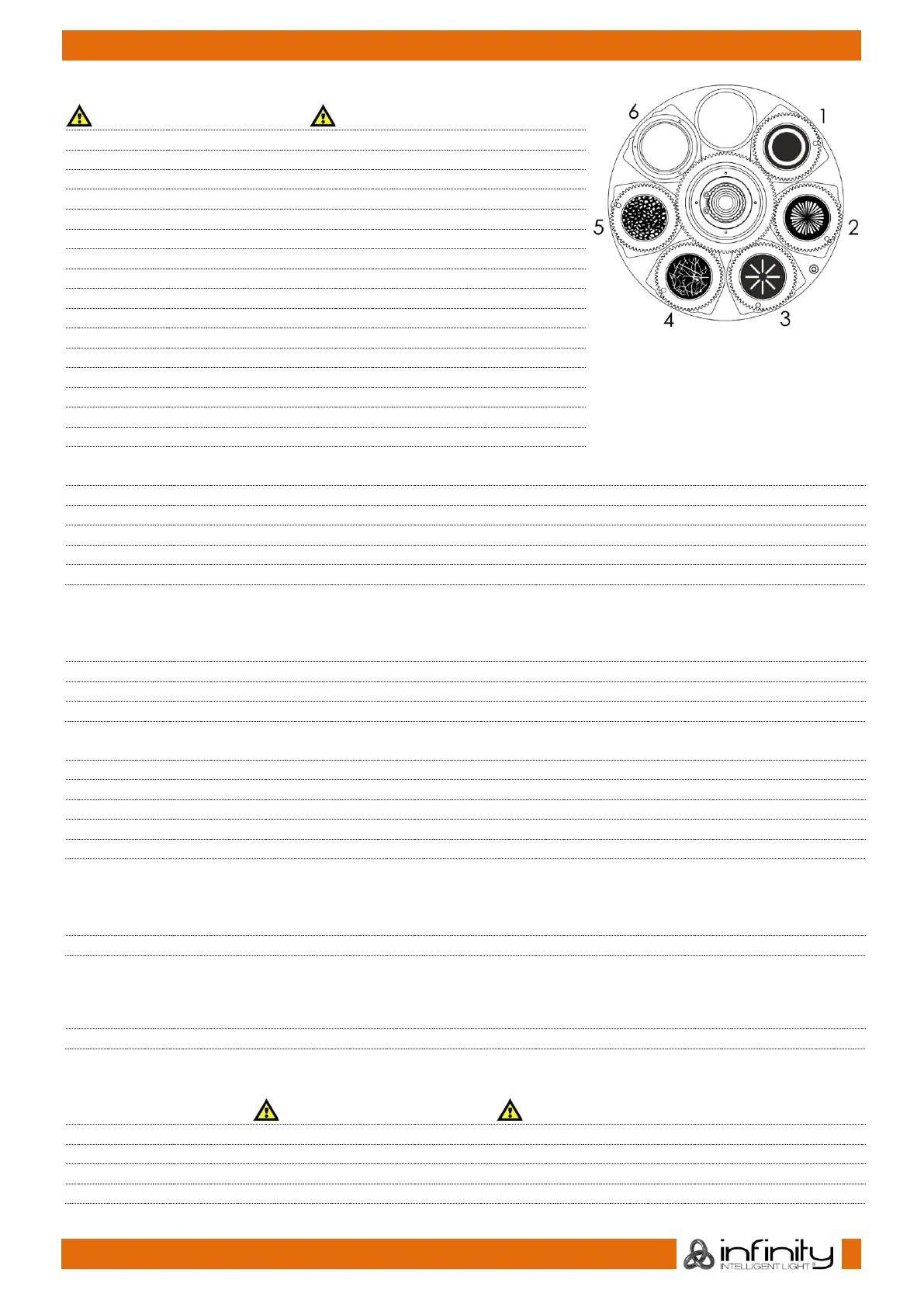

Channel 22 – Rotating Gobo wheel 2
CH6 and CH8 must be open
0-8
Open
9-17
Gobo 1 (Circle)
18-26
Gobo 2 (Radial Lines)
27-35
Gobo 3 (Spokes)
36-44
Gobo 4 (Branches)
45-53
Gobo 5 (Stones)
54-73
Gobo 6 (Aperture)
74-82
Rotating Gobo 5 shake effect, from slow to fast
83-91
Rotating Gobo 4 shake effect, from slow to fast
92-100
Rotating Gobo 3 shake effect, from slow to fast
101-109
Rotating Gobo 2 shake effect, from slow to fast
110-118
Rotating Gobo 1 shake effect, from slow to fast
119-127
Open
128-190
Clockwise gobo flow, from fast to slow
191-192
Stop
193-255
Counterclockwise gobo flow, from slow to fast
Channel 23 – Gobo rotation (gobo wheel 2)
0-45
Gobo indexing
46-126
Clockwise gobo rotation, from fast to slow
127-130
Stop
131-211
Counterclockwise gobo rotation, from slow to fast
212-255
Gobo wheel bounce effect, from small to big amplitude
Channel 24 – Gobo rotation 16 bit (gobo wheel 2)
Channel 25 – Prism
0-4
Not functional
5-127
Prism effect 1
128-255
Prism effect 2
Channel 26 – Prism rotation (gobo wheel 2)
0-45
Prism indexing
46-126
Clockwise prism rotation, from fast to slow
127-130
Stop
131-211
Counterclockwise prism rotation, from slow to fast
212-255
Prism bounce effect, from small to big amplitude
Channel 27 – Prism rotation 16 bit
Channel 28 – Zoom
0-255
Zoom adjustment, from big to small
Channel 29 – Zoom 16 bit
Channel 30 – Iris
0-255
Iris adjustment, from big to small
Channel 31 – Iris 16 bit
Channel 32 – Iris macros CH6 and CH8 must be open
0-63
Not functional
64-127
Macro switch, from slow to fast
128-191
Slow zoom out/fast zoom in, from slow to fast
192-255
Slow zoom in/fast zoom out, from slow to fast
