Infinity S601 Profile - Page 45

44
Ordercode: 41507
Infinity S601 Profile
Channel 33 – Focus
0-255
Focus adjustment
Channel 34 – Focus 16 bit
Channel 35 – Auto focus
0
Not functional
1-11
0-5 meters, auto focus gobo 1
12-22
6 meters, auto focus gobo 1
23-33
7 meters, auto focus gobo 1
34-44
8 meters, auto focus gobo 1
45-55
9 meters, auto focus gobo 1
56-66
10 meters, auto focus gobo 1
67-77
12,5 meters, auto focus gobo 1
78-88
15 meters, auto focus gobo 1
89-99
17,5 meters, auto focus gobo 1
100-110
20-60 meters, auto focus gobo 1
111-127
Auto detect distance gobo1
128-138
0-5 meters, auto focus gobo 2
139-149
6 meters, auto focus gobo 2
150-160
7 meters, auto focus gobo 2
161-171
8 meters, auto focus gobo 2
172-182
9 meters, auto focus gobo 2
183-193
10 meters, auto focus gobo 2
194-204
12,5 meters, auto focus gobo 2
205-215
15 meters, auto focus gobo 2
216-226
17,5 meters, auto focus gobo 2
227-237
20-60 meters, auto focus gobo 2
238-255
Auto detect distance gobo 2
Channel 36 – Frost
0-255
Frost effect, 0-100%

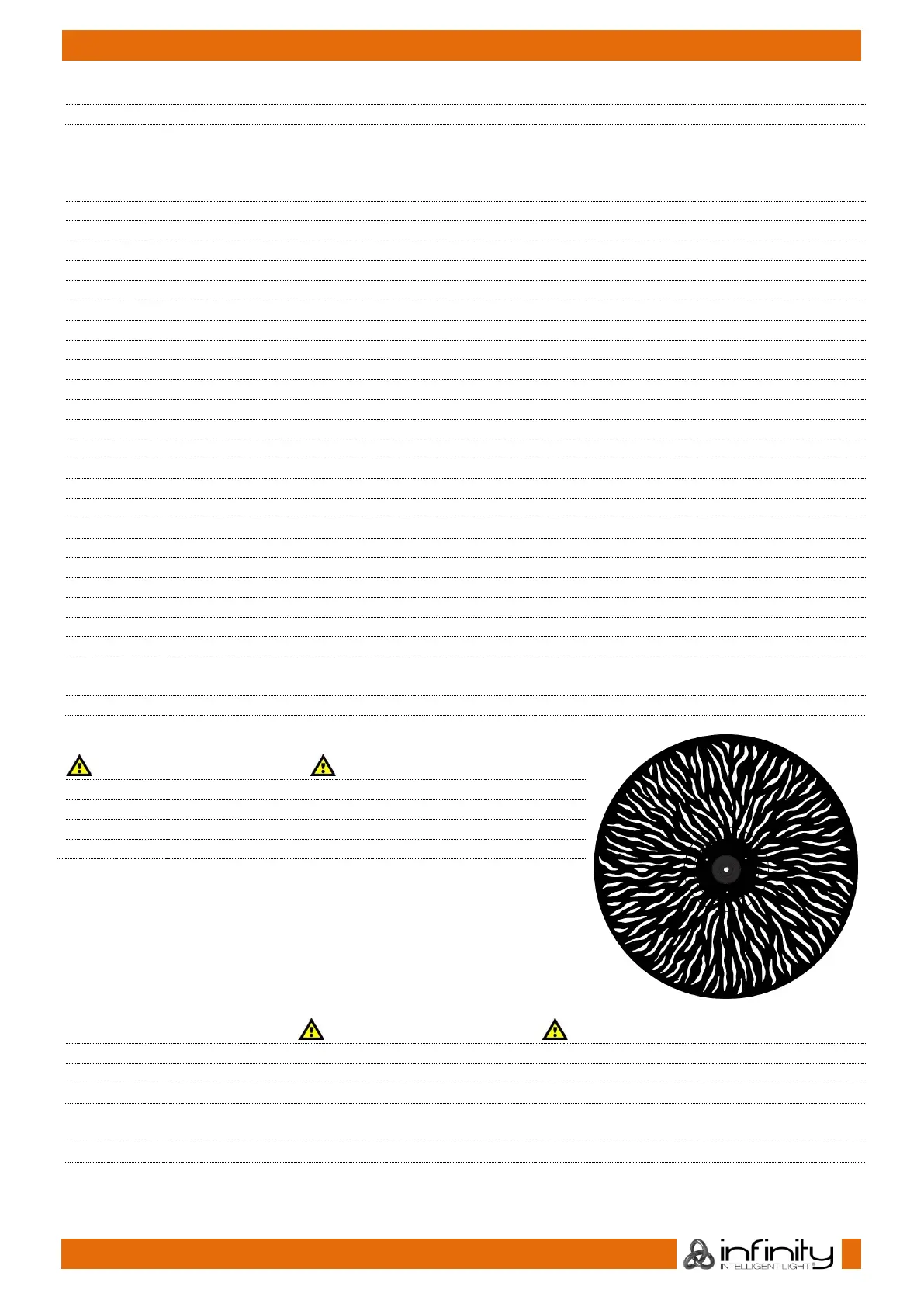

Channel 37 – Animation wheel
CH6 and CH8 must be open
0-1
Not functional
2-126
Clockwise rotation, from fast to slow
127-130
Stop
131-255
Counterclockwise rotation, from slow to fast
Channel 38 – Digital motion FX CH6 and CH8 must be open
0-1
Not functional
2-128
Step mode, from slow to fast
129-255
Fade mode, from slow to fast
Channel 39 – Position Frame 1
0-255
Position adjustment, 0-100%
Channel 40 – Position Frame 1, 16 bit
