InFocus IN114x User Manual

6

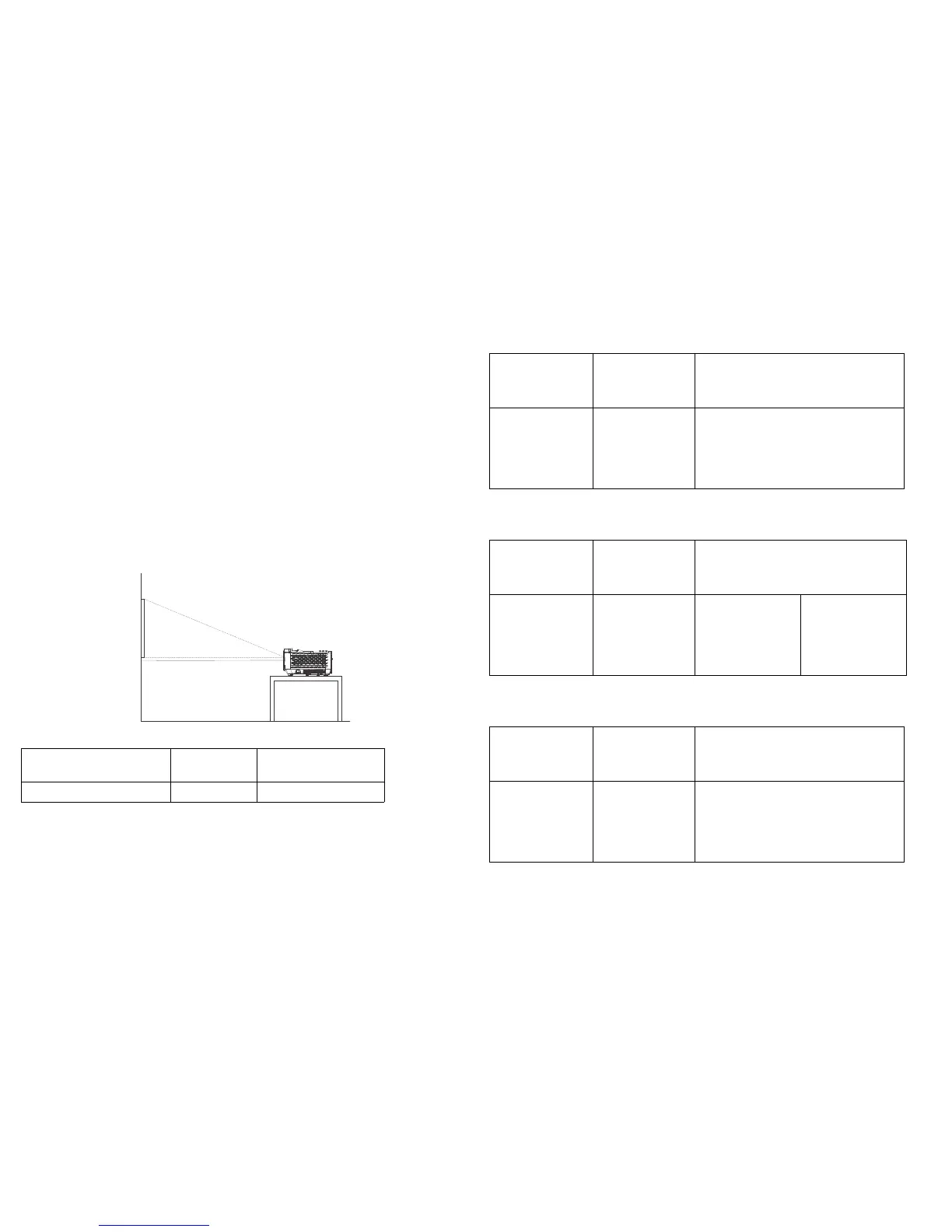

Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The projector
must be at least 39.4” (1.0m) from the projection screen.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus approved ceiling mounts for proper fitting, ventilation and installation.
Refer to the installation guide that comes with the InFocus Ceiling Mount Kit (p/n
PRJ-MNT-UNIV) for more information. The warranty does not cover any damage
caused by use of non-approved ceiling mount kits or by installing in an improper
location. To turn the image upside down, see “Ceiling mount” on page 28. We
recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance from the
lens of the projector to the screen and the video format determine the size of the
projected image.
Minimum Distance to
Screen Offset Offset for 60in. Image
39.4"/1.0m 15%+-5% 9"/22.9cm
60 inches
high image
bottom of image 9
inches above center
of lens
Projection angle
lens center
Table 1: IN112x (SVGA)/IN114x(XGA) Screen size
Throw Ratio = 1.9 to 2.09
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum distance
(inches/m)
Maximum distance
(inches/m)
40”/1.0m 32”/0.8m 61”/1.6m 67”/1.7m
60”/1.5m 48”/1.2m 91”/2.3m 100”/2.6m
80”/2.0m 64”/1.6m 122”/3.1m 134”/3.4m
100”/2.5m 80”/2.0m 152”/3.9m 167”/4.3m
150”/3.8m 120”/3.1m 228”/5.8m 251”/6.4m
Table 2: IN116x (WXGA) Screen size
Throw Ratio = 1.5 to 1.8
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum distance
(inches/m)
Maximum distance
(inches/m)
40”/1.0m 38”/1.0m 58”/1.5m 69”/1.8m
60”/1.5m 58”/1.5m 87”/2.2m 104”/2.6m
80”/2.0m 77”/2.0m 115”/2.9m 138”/3.5m
100”/2.5m 96”/2.4m 144”/3.7m 173”/4.4m
150”/3.8m 144”/3.7m 216”/5.5m 260”/6.6m
Table 3: IN118HDx/IN119HDx (1080p) Screen size
Throw Ratio = 1.15 to 1.5
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum distance
(inches/m)
Maximum distance
(inches/m)
40”/1.0m 43”/1.1m 49”/1.3m 64”/1.6m
60”/1.5m 64”/1.6m 74”/1.9m 96”/2.4m
80”/2.0m 85”/2.2m 98”/2.5m 128”/3.3m
100”/2.5m 107”/2.7m 123”/3.1m 160”/4.1m
150”/3.8m 160”/4.1m 184”/4.7m 240”/6.1m

InFocus IN114x Specifications

General

Noise Level	32 decibels
White Brightness	3200 lumens
Native Resolution	1024 x 768
Contrast Ratio	15000:1
Aspect Ratio	4:3
Throw Ratio Range	1.9 - 2.09:1
3D	yes
Maximum Screen Size	299 inches
Focus Adjustment	manual
Minimum Distance	3.3 feet
Maximum Distance	33 feet
Video Input	hdmi
Inputs	hdmi
Sound Mode	mono
Built In Speakers	yes
Speakers Output	2 watts
Remote Control	yes
OS Compatibility	mac, windows

Weight and Dimensions

Depth	8.7 inches
Height	4.8 inches
Width	11.5 inches
Net Weight	5.4 pounds
