Installation
Connect to Computer/Notebook

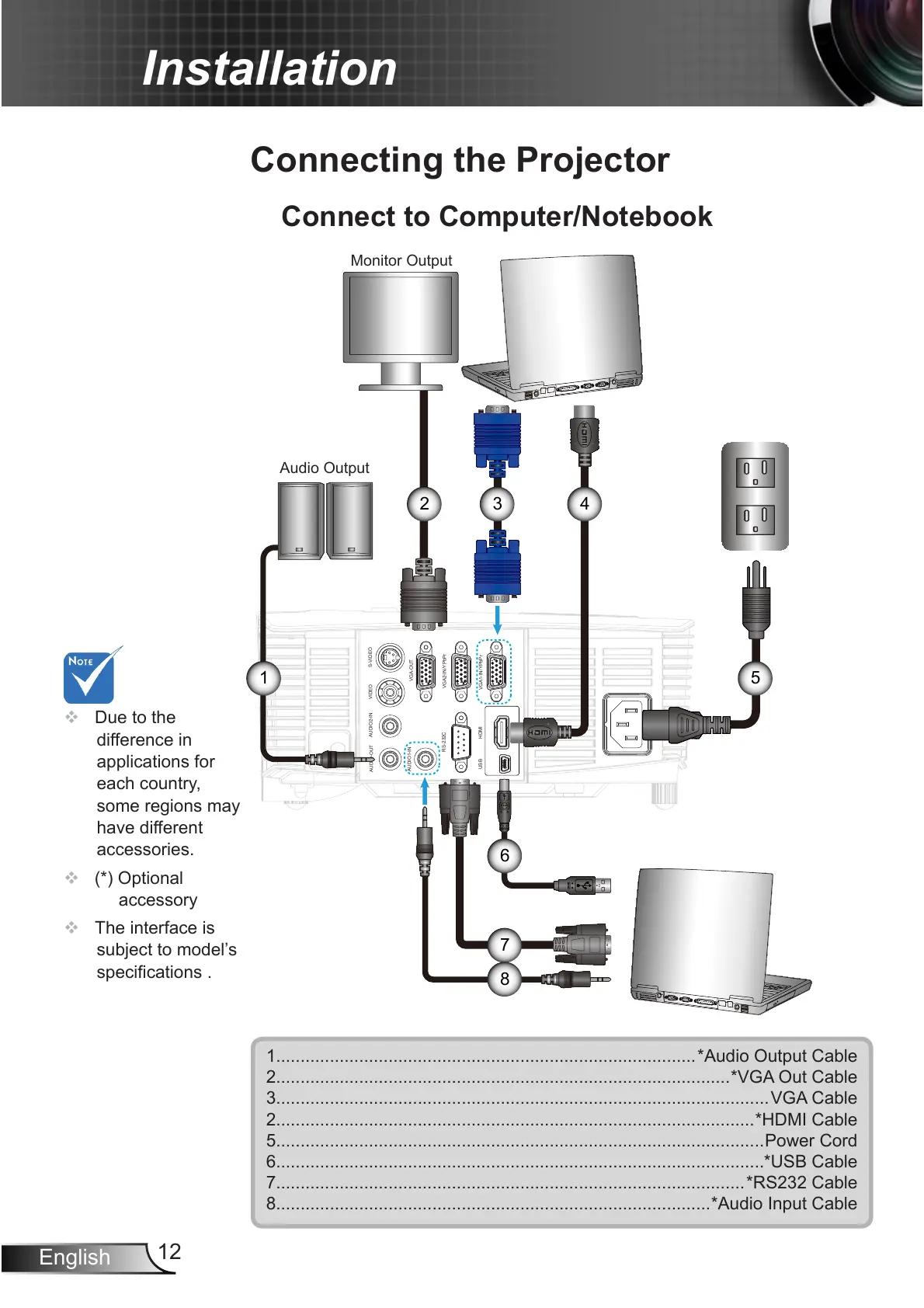

Connecting the Projector
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
1......................................................................................*Audio Output Cable
2.............................................................................................*VGA Out Cable
3.....................................................................................................VGA Cable
2..................................................................................................*HDMI Cable
5....................................................................................................Power Cord
6....................................................................................................*USB Cable
7................................................................................................*RS232 Cable
8.........................................................................................*Audio Input Cable
USB
VGA1-IN/YPbPr
VIDEO
VGA-OUT
VGA2-IN/YPbPr
HDMI
AUDIO1-IN
AUDIO-OUT
AUDIO2-IN
S-VIDEO
RS-232C
molex
MOLEX
1
2 3
Audio Output
Monitor Output
4
5
7
8
6
