InFocus IN224 - Connect to Video Sources

13
English
Installation

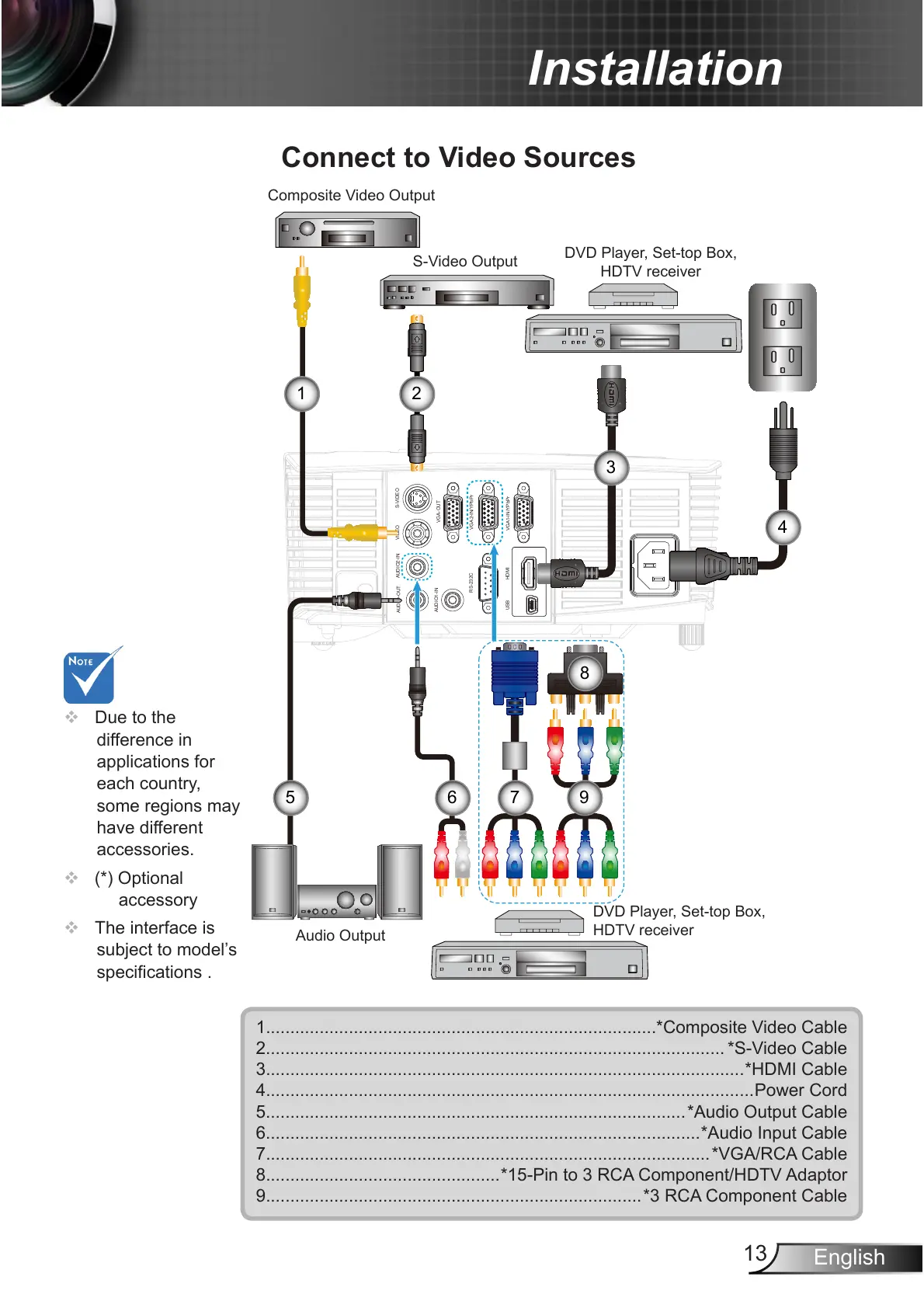

Connect to Video Sources
1................................................................................*Composite Video Cable
2.............................................................................................. *S-Video Cable
3..................................................................................................*HDMI Cable
4....................................................................................................Power Cord
5......................................................................................*Audio Output Cable
6.........................................................................................*Audio Input Cable
7...........................................................................................*VGA/RCA Cable
8................................................*15-Pin to 3 RCA Component/HDTV Adaptor
9.............................................................................*3 RCA Component Cable
USB
VGA1-IN/YPbPr
VIDEO
VGA-OUT
VGA2-IN/YPbPr
HDMI
AUDIO1-IN
AUDIO-OUT
AUDIO2-IN
S-VIDEO
RS-232C
1
765
2
3
S-Video Output
Composite Video Output
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
DVD Player, Set-top Box,
HDTV receiver
Audio Output
4
9
DVD Player, Set-top Box,
HDTV receiver
8
