IN3138HD User’s Manual
2.

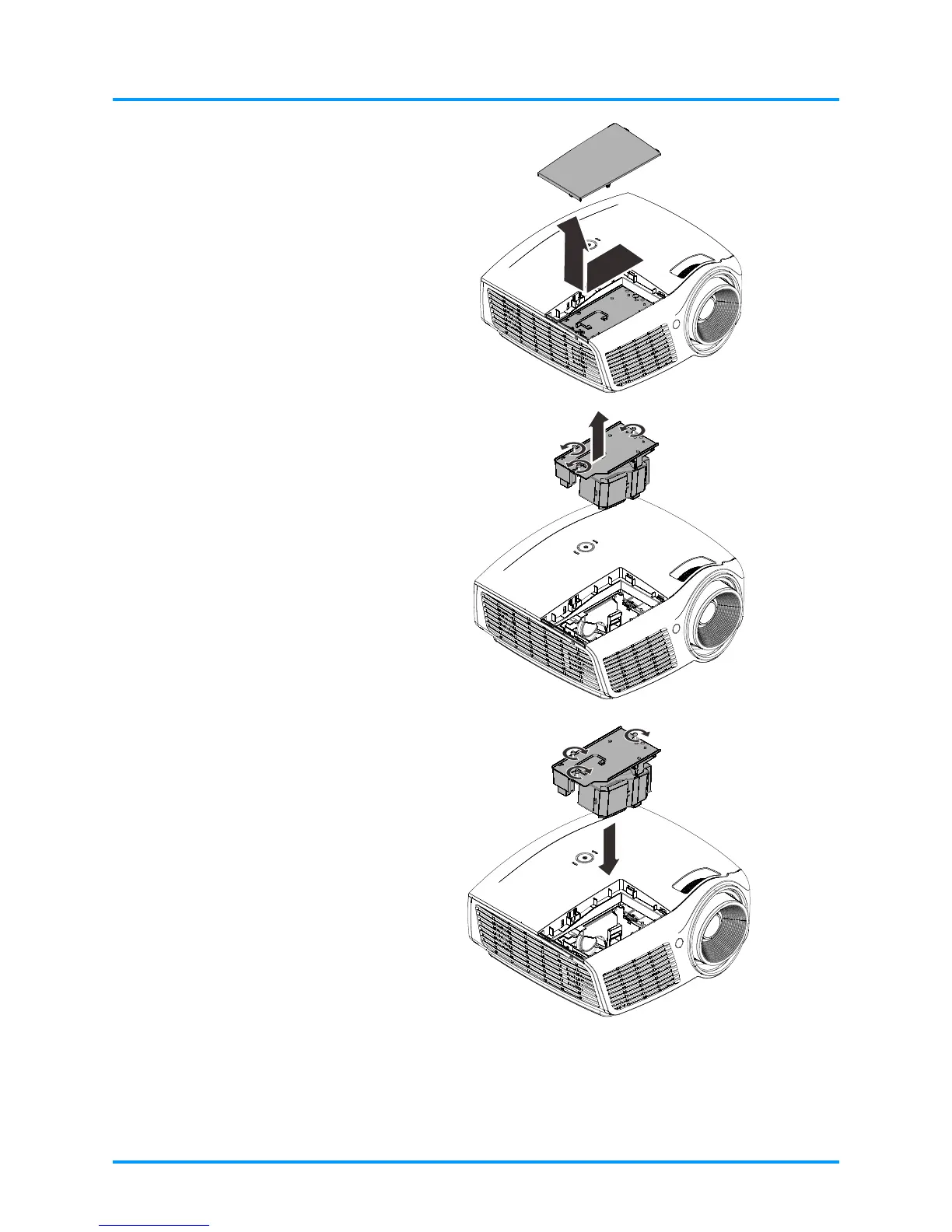

Remove the lamp
compartment cover.
3.
Remove the three screws
from the lamp module.
4.
Lift the module handle up.
5.
Pull firmly on the module
handle to remove the lamp
module.
6.
Reverse steps 1 to 5 to
install the new lamp
module.
While installing, align the
lamp module with the
connector and ensure it is
level to avoid damage.
Note:
The lamp module must sit
securely in place and the
lamp connector must be
connected properly before
tightening the screws.
–42
–
