3
456 7 9
11
12
13
14
1516
8

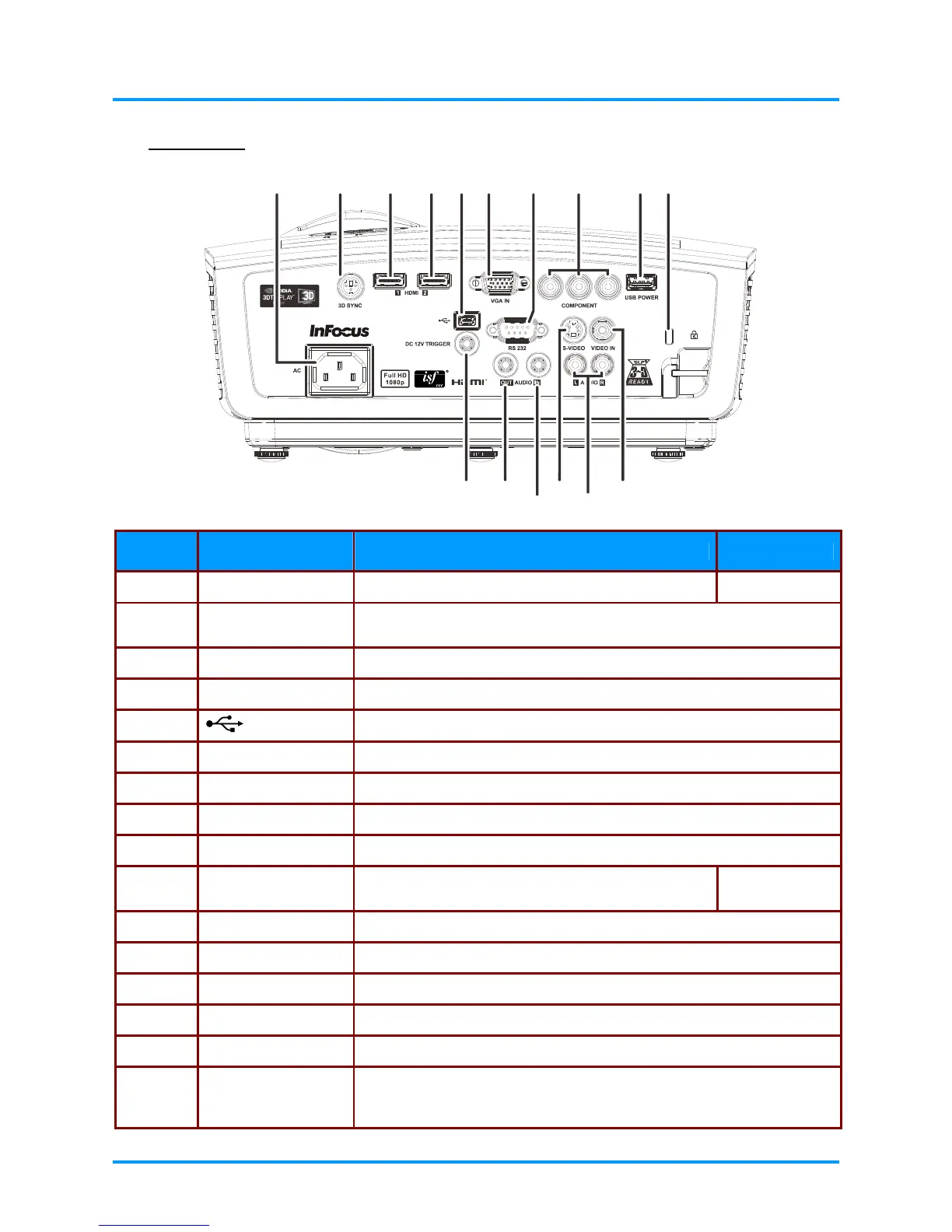

ITEM LABEL DESCRIPTION SEE PAGE
1.
AC IN Connect a POWER cable
11
2.
3D SYNC
Connect the 3D IR glasses transmitter
(Note: For Specific 3D IR glasses only)
3.
HDMI 1 Connect an HDMI cable from a HDMI device
4.
HDMI 2 Connect an HDMI cable from a HDMI device
5.
(USB)
Service use only.
6.
VGA IN Connect a RGB cable from a computer
7.
RS-232C Connect a RS-232 serial port cable for remote control
8.
COMPONENT Connect a Component cable from a component device
9.
USB POWER This USB Type A connector provides 5V DC power support.
10.
Kensington Lock
Secure to a permanent object with a Kensington®
Lock system
40
11.
VIDEO IN Connect a COMPOSITE cable from a video device
12.
AUDIO IN (L and R) Connect an AUDIO cable from an audio device
13.
S-VIDEO Connect a S-VIDEO cable from a video device
14.
AUDIO IN Connect an AUDIO cable from an audio device
15.
AUDIO OUT Connect an AUDIO cable to an audio amplifier
16.
DC 12V TRIGGER
When connected to the screen through a commercially available cable,
the screen deploys automatically on start up of the projector. The screen
retracts when the projector is powered off (see notes on next page).
–4 –
To Next Page
