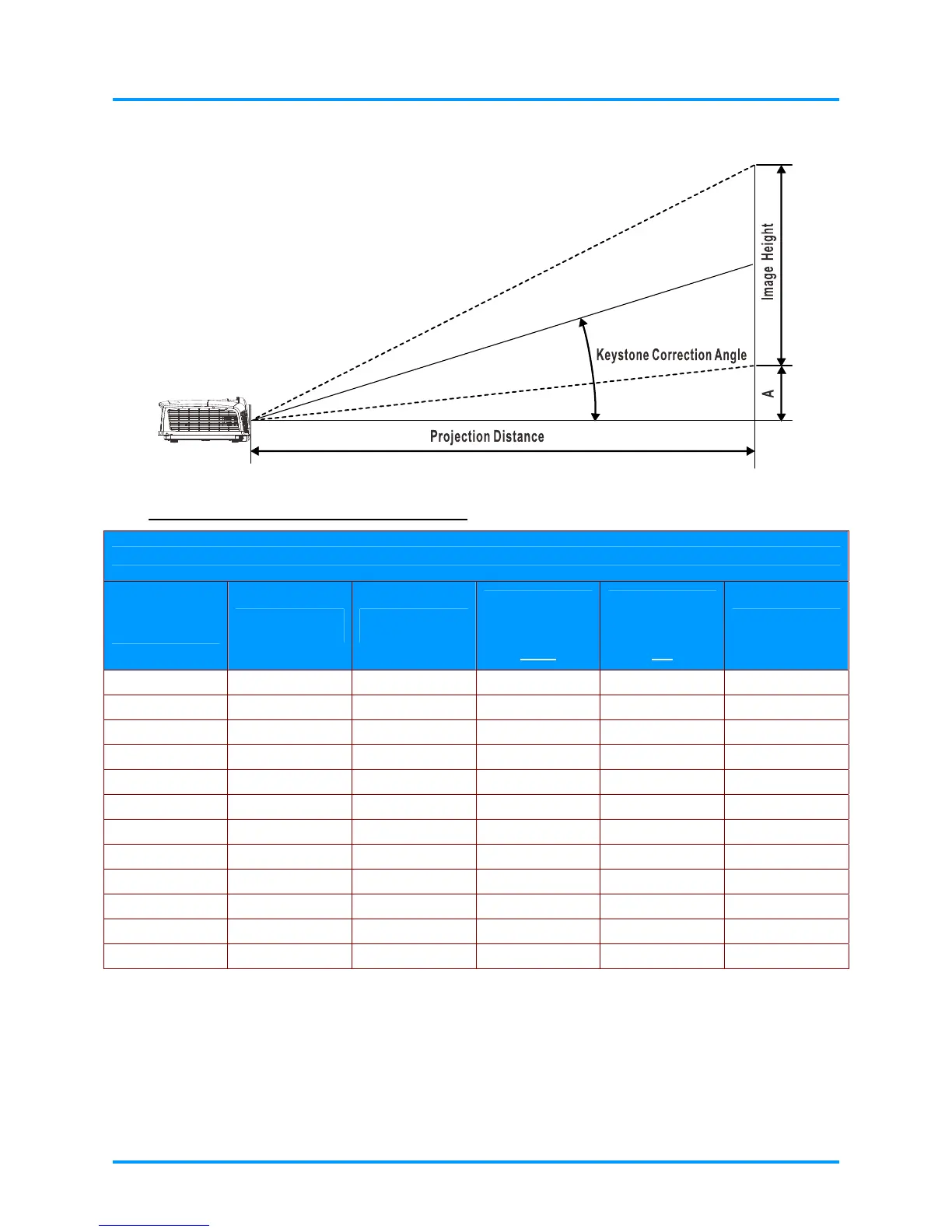

Projection Distance vs. Projection Size
Projection Distance and Size Table
IN8606HD
IMAGE DIAGONAL
（MM/INCH）
IMAGE WIDTH
(MM/INCH)
IMAGE HEIGHT
(MM/INCH)
PROJECTION
DISTANCE
（MM/INCH）
FROM
PROJECTION
DISTANCE
（MM/INCH）
TO
OFFSET-A
( MM/INCH )
1524 / 60 1328.2 / 52.29 747.3 / 29.42 1846.3 / 72.7 2776.1 / 109.3 112.1 / 4.4
1778 / 70 1549.7 / 61.01 871.7 / 34.32 2154 / 84.8 3238.8 / 127.5 130.8 / 5.1
1828.8 / 72 1593.9 / 62.75 896.6 / 35.3 2215.6 / 87.2 3331.3 / 131.2 134.5 / 5.3
2032 / 80 1771.1 / 69.73 996.2 / 39.22 2461.7 / 96.9 3701.5 / 145.7 149.4 / 5.9
2133.6 / 84 1859.5 / 73.21 1046 / 41.18 2584.8 / 101.8 3886.6 / 153 156.9 / 6.2
2286 / 90 1992.4 / 78.44 1120.6 / 44.12 2769.5 / 109 4164.2 / 163.9 168.1 / 6.6
2438.4 / 96 2125.2 / 83.67 1195.6 / 47.07 2954.1 / 116.3 4441.8 / 174.9 179.3 / 7.1
2540 / 100 2213.9 / 87.16 1245.4 / 49.03 3077.2 / 121.1 4626.8 / 182.2 186.8 / 7.4
3048 / 120 2656.6 / 104.59 1494.3 / 58.83 3692.6 / 145.4 5552.2 / 218.6 224.1 / 8.8
3429 / 135 2988.6 / 117.66 1681.2 / 66.19 4154.2 / 163.6 6246.2 / 245.9 252.2 / 9.9
3810 / 150 3320.8 / 130.74 1867.9 / 73.54 4615.8 / 181.7 6940.3 / 273.2 280.2 / 11
5080 / 200 4427.7 / 174.32 2490.5 / 98.05 6154.4 / 242.3 9253.7 / 364.3 373.6 / 14.7
