3. Operations
3-1. Button Operation
Button
Function
ON/Enter Button
 Switch on the UPS: Press and hold the button more than 0.5s to switch on the
UPS.
 Enter Key: Press this button to confirm the selection in the setting menu.
OFF/ESC Button
 Turn off the UPS: Press and hold the button more than 0.5s to turn off the
UPS.
 Esc key: Press this button to return to last menu in the setting menu.
Test/Up Button
 Battery test: Press and hold the button more than 0.5s to test the battery while
in AC mode, or CVCF mode.
 UP key: Press this button to display next selection in the setting menu.
Mute/Down Button
 Mute the alarm: Press and hold the button more than 0.5s to mute the buzzer.
Please refer to section 3-4-9 for details.
 Down key: Press this button to display previous selection in the setting menu.
Test/Up +
Mute/Down Button
 Press and hold the two buttons simultaneously more than 1s to enter/exit the
setting menu.
* AC mode means normal mode, CVCF mode means frequency converter mode.

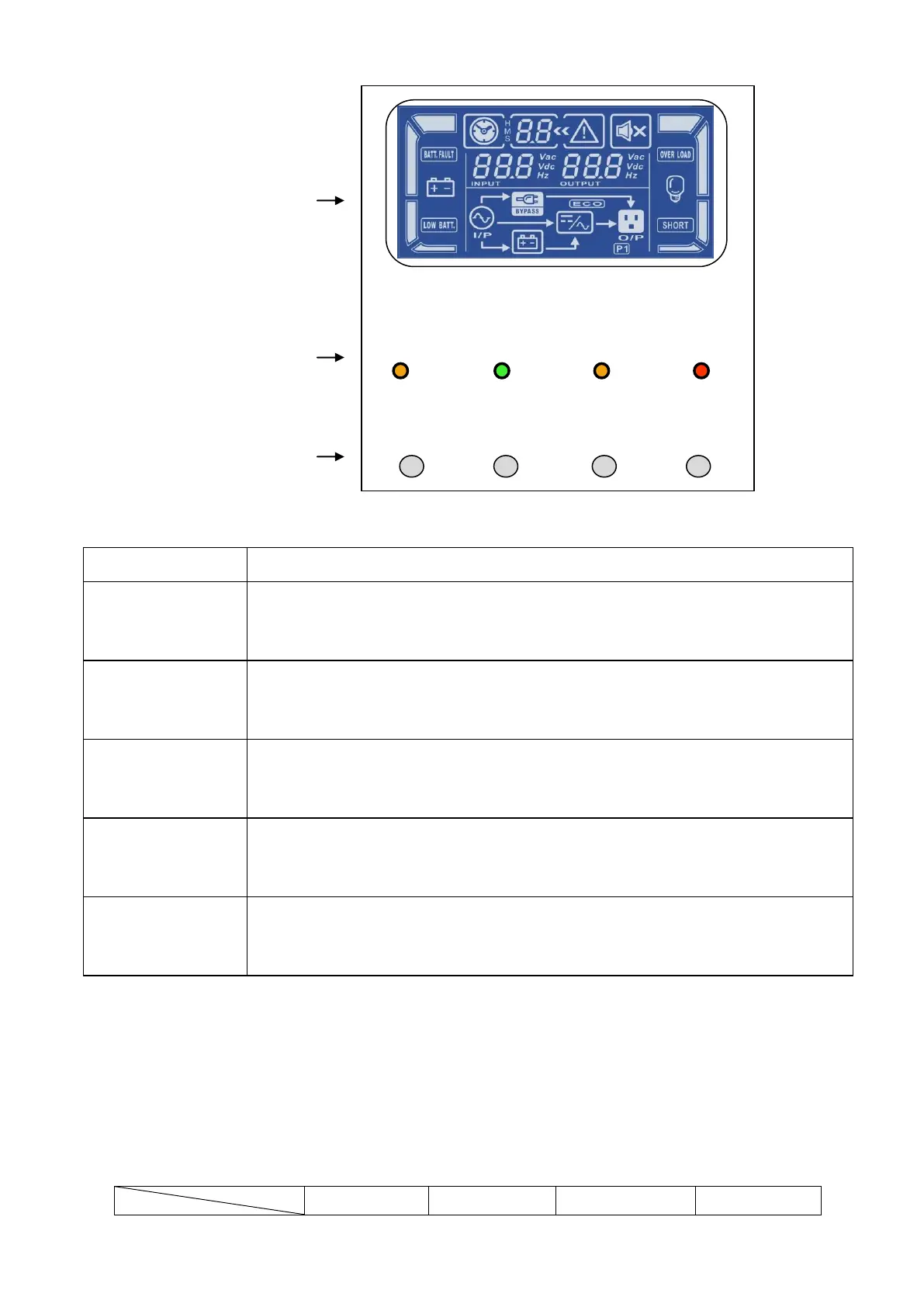

3-2. LED Indicators and LCD Panel
LED Indicators:
There are 4 LEDs on the front panel to show the UPS working status:
Mode LED
Bypass
Line
Battery
Fault
LCD Panel
Buttons
LED indicators
OFF
UP
DOWN
ON
LINE
BATTERY
FAULT
BYPASS
