20 Installation
Anti-intrusion control panels
3-1-3

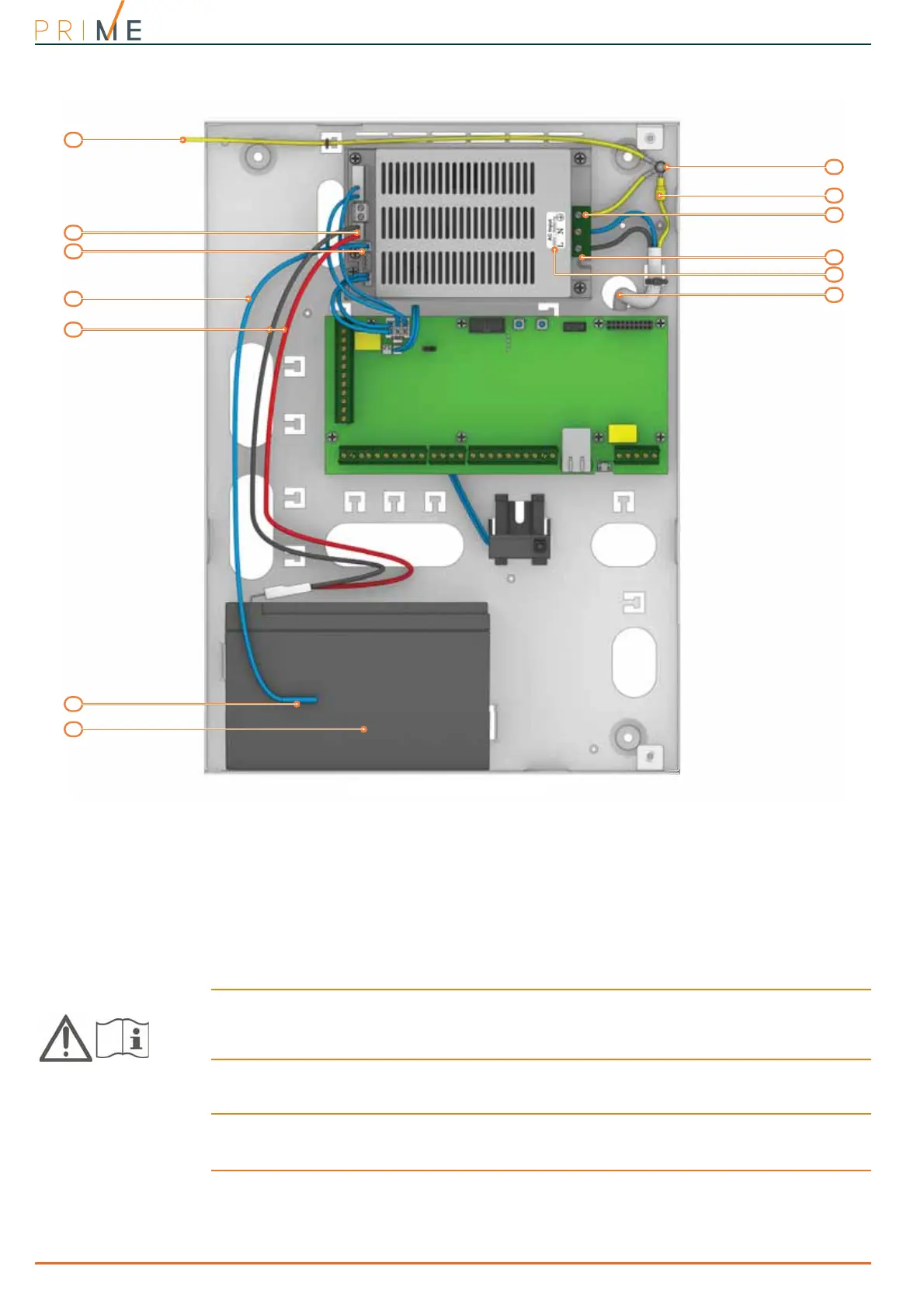

Connecting the backup battery
Connection of the backup battery [I] must be carried out during the phase described in
Chapter 4, First power up.
The metal enclosure of the Prime060S is capable of housing one lead battery @12V 7Ah or
9Ah.
The metal enclosure of the Prime060L, Prime120L, Prime240L and Prime500L is capable of
housing one lead battery @ 12V 17Ah 12V 17Ah.
Note The battery casing must have HB flame rating or higher.
The backup batteries for the power supply of the product are not supplied with the same.
The installer must use valve regulated lead-acid batteries (VRLA) for stationary use, compliant with IEC
60896-21 and IEC 60896-22 standards.
For the connection of the battery use the connection wire [J] supplied with the control panel.
ATTENTION! Ensure that the polarity of the battery is respected:
- black wire = negative
- red wire = positive
Connect the cable to the control panel using the appropriate connector [K] on the switching
power supply Table 2-5: Control panels - description of parts, E).
The lead battery is the secondary power source which powers the system when the primary
(mains) power source fails (230V 50Hz).
C
B
A
F
E
G
H
J
I
K
M
N
L
Prime060S
