-92-
Introduction
■
Wiring requirements (AM600-3200END)
If the SIRON T024-K switching terminals are used in switching wiring
,
see the following 󶍾gure for the
relationship between the terminal numbers and the terminal pin numbers of the module (If switching
terminals of other models are used
,
con󶍾rm the relationship between the terminal numbers and the
terminal pin numbers):
Switching
terminal block
High-density expansion
cable terminal component
Connect to the
DI signal on
the user side
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
36
38
40
35
37
39
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
SS2
SS3
SS2
SS3
Ch2-I7
Ch3-I7
SS1
Ch1-I7
Ch1-I6
Ch1-I5
Ch1-I4
Ch1-I3
Ch1-I2
Ch1-I1
Ch1-I0
SS1
Switching terminal
block
SiRON
T024-K
SS0
Ch0-I7
Ch0-I6
Ch0-I5
Ch0-I4
Ch0-I3
Ch0-I2
Ch0-I1
Ch0-I0
SS0
Ch2-I6
Ch2-I5
Ch2-I4
Ch2-I3
Ch2-I2
Ch2-I1
Ch2-I0
Ch3-I6
Ch3-I5
Ch3-I4
Ch3-I3
Ch3-I2
Ch3-I1
Ch3-I0

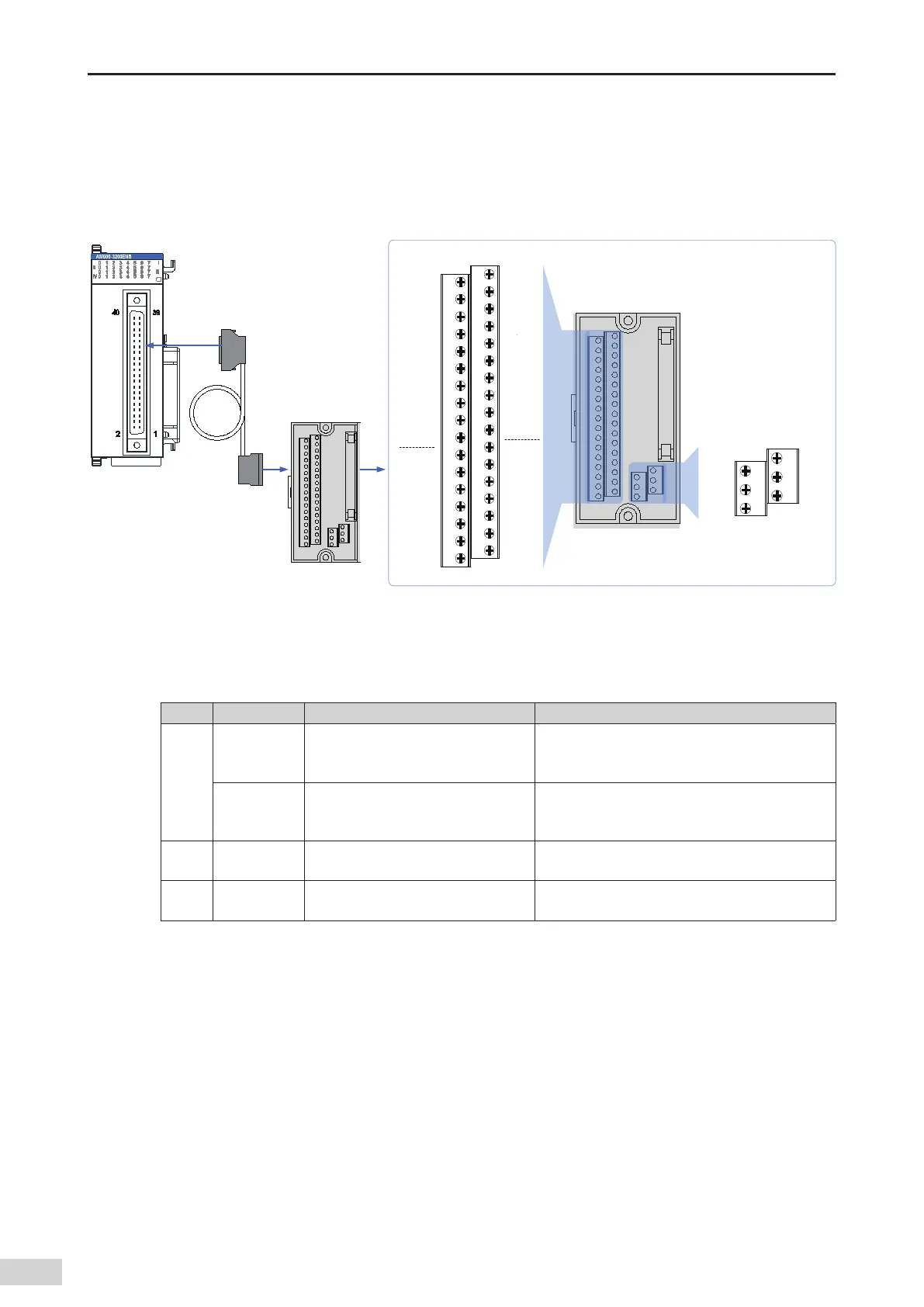

Figure 5-37 Wiring with SIRON T024-K switching terminals
As shown in the preceding 󶍾gure
,
Inovance provides the following items for customers to order:
① High- density extension cables; ② Connectors (used when you need to make cables); ③ Switching
terminal console. The order information is as follows:
No. Order Code Description Remarks
①
15300119 40-pin FCN to MIL cable (500 mm)
High-density switching cable
,
including a 40-pin
FCN connector and a 40-pin MIL connector. Cable
length: 500 mm
15300193 40PIN FCN to MIL cable (2000 mm)
High-density switching cable
,
including a 40-pin
FCN connector and a 40-pin MIL connector. Cable
length: 2000 mm
② 15050180 40-pin FCN connector
You can purchase this connector to make cables
yourself.
③ 15020452
40-pin MIL to screw wiring terminal
block
/
3) Wiring instructions
■
Avoid binding extension cables with cables that generate strong interference
,
for example
,
power
cables (high voltage and current)
,
and avoid laying extension cables parallelly with the preceding
cables.
■
Use the recommended cables and adapter board. You are advised to use shielded cables as
extension cables to improve the interference resistance capability.
