-94-
Introduction
■

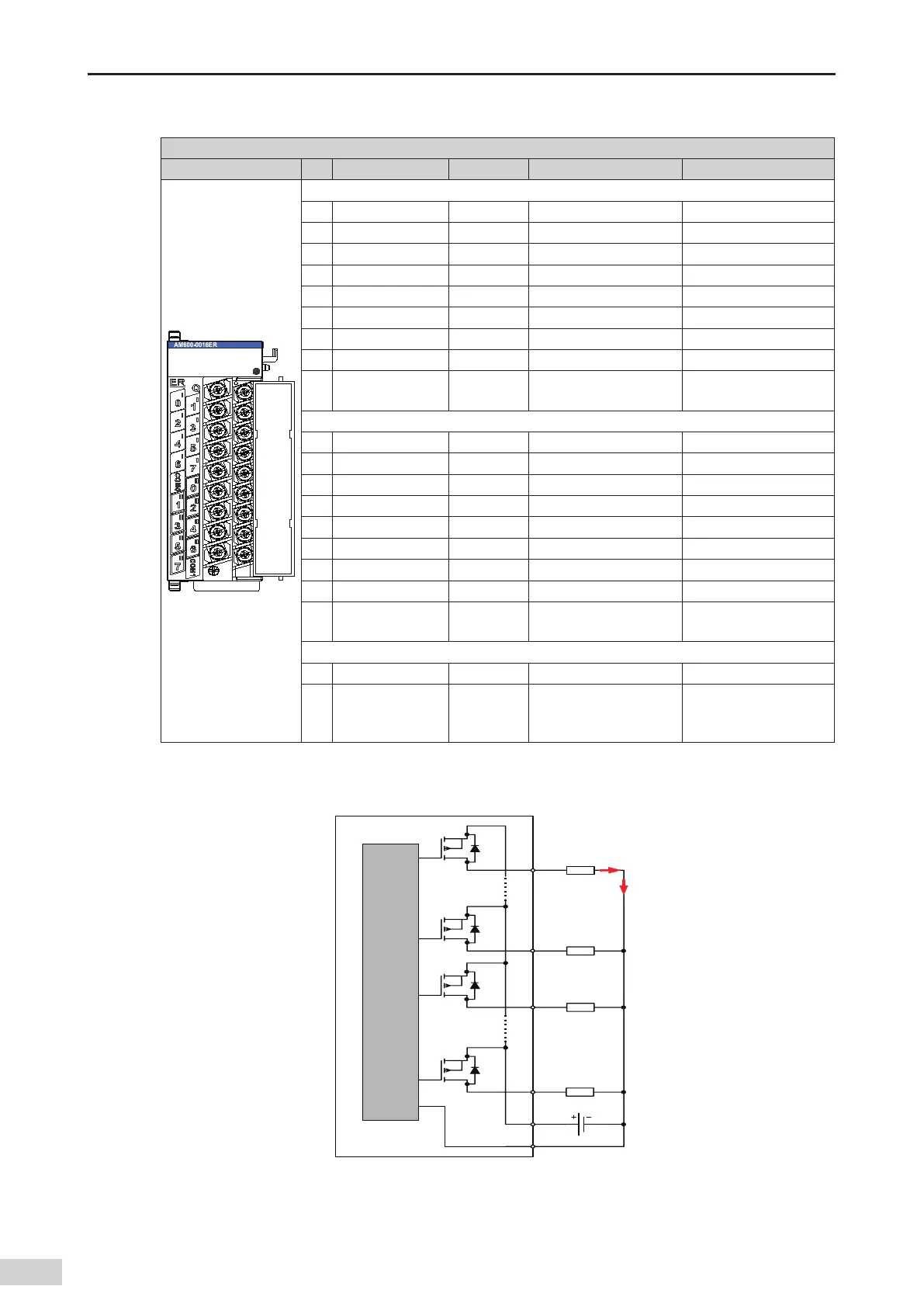

Terminal signal arrangement and de󶍾nitions (AM600-0016ER)
Relay output module (AM600-0016ER)
Terminal Arrangement No. Terminal Symbol Type Function Remarks
4 5 6 73210
0 1 2 3 7654 II
I
Output interfaces of group 1
1 Q0 Output User output 0 of group 1 Sink output
,
active high
2 Q1 Output User output 1 of group 1 Sink output
,
active high
3 Q2 Output User output 2 of group 1 Sink output
,
active high
4 Q3 Output User output 3 of group 1 Sink output
,
active high
5 Q4 Output User output 4 of group 1 Sink output
,
active high
6 Q5 Output User output 5 of group 1 Sink output
,
active high
7 Q6 Output User output 6 of group 1 Sink output
,
active high
8 Q7 Output User output 7 of group 1 Sink output
,
active high
9 COM0
Output
common
Common
Common of the 󶍾rst
group
Output interfaces of group 1
10 Q0 Output User output 0 of group 2 Sink output
,
active high
11 Q1 Output User output 1 of group 2 Sink output
,
active high
12 Q2 Output User output 2 of group 2 Sink output
,
active high
13 Q3 Output User output 3 of group 2 Sink output
,
active high
14 Q4 Output User output 4 of group 2 Sink output
,
active high
15 Q5 Output User output 5 of group 2 Sink output
,
active high
16 Q6 Output User output 6 of group 2 Sink output
,
active high
17 Q7 Output User output 7 of group 2 Sink output
,
active high
18 COM1
Output
common
Common
Common of the second
group
Power connector
1 24 V Power input 24 VDC power supply 24 VDC power input
2 COM
Power
supply
common
Common 24 VDC power common
■
External wiring (AM600-0016ETP/AM600-0016ETN/AM600-0016ER)
◆
Transistor output
$0.
%$7
_ _
ă
2
ă
2
ăă
2
ăă
2
-PBE
-PBE
-PBE
-PBE
*OUFSOBM
DJSDVJU
7
_ _
J

Figure 5-38 AM600-0016ETP output wiring
