Inovance IS620P Series Manual

2 Wiring
2
- 28 -

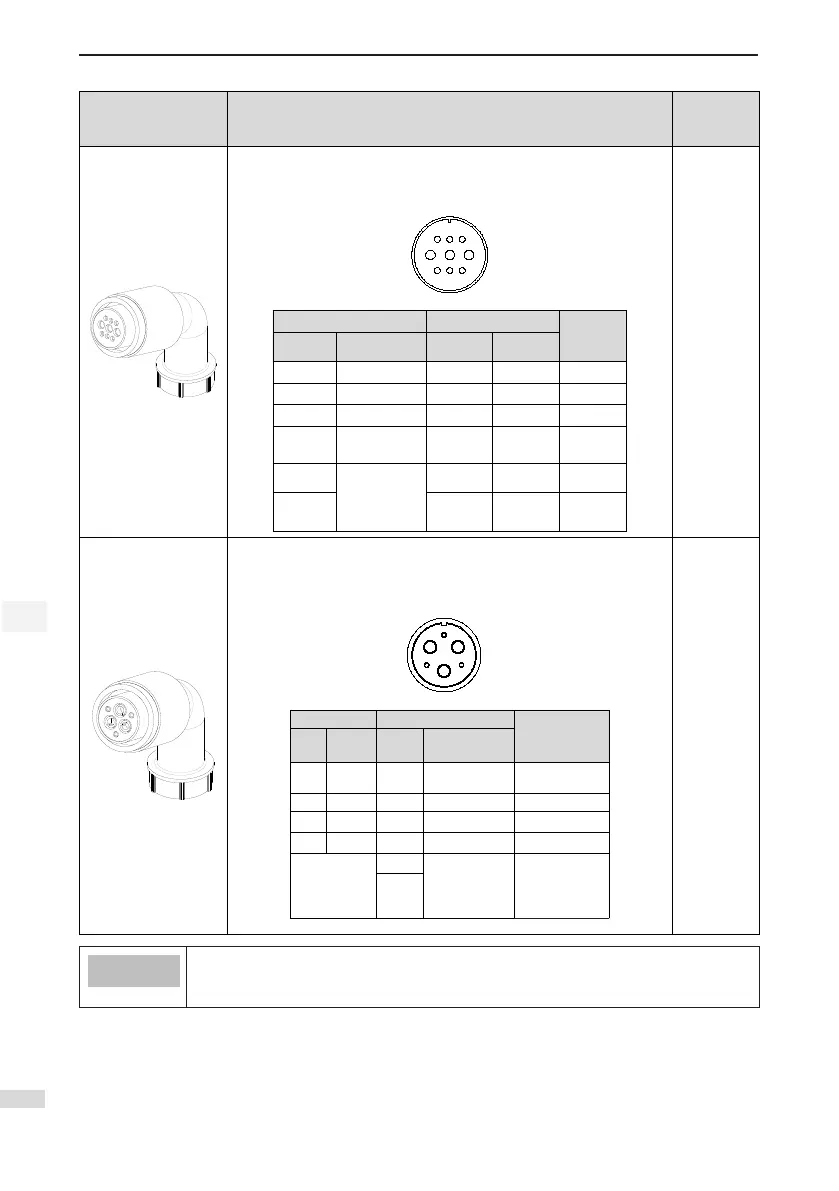

Connector Appearance Pin Layout
Frame Size
of Matching
Motor
MIL-DTL-5015 series
3108E20-18S military spec.
A
H G
B
I
F
C D
E
20-18 military spec.
New Structure Old Structure
Color
Pin No. Signal Pin No. Signal
B U B U Blue
I V I V Black
F W F W Red
G PE G PE
Yellow/
Green
C
Brake
(regardless
of positive or
negative)
E
100
130
MIL-DTL-5015 series
3108E20-22S military spec.
F
A
E
DB
C
20-22 military spec.
Y Series Z Series
Color
Pin
No.
Signal
Pin
No.
Signal
A U A U Blue
C V C V Black
E W E W Red
F PE F PE Yellow/Green
D
B
Brake
(regardless
of positive or
negative)
180
Note
1. Frame size of motor: indicates the width of motor ange.
2. The motor cable colors are subject to the actual. The cable colors mentioned in the manual
are all Inovance cables.
