Chapter 1 Product Information
1.1 Servo Drive
1.1.1 Designation Rules and Nameplate

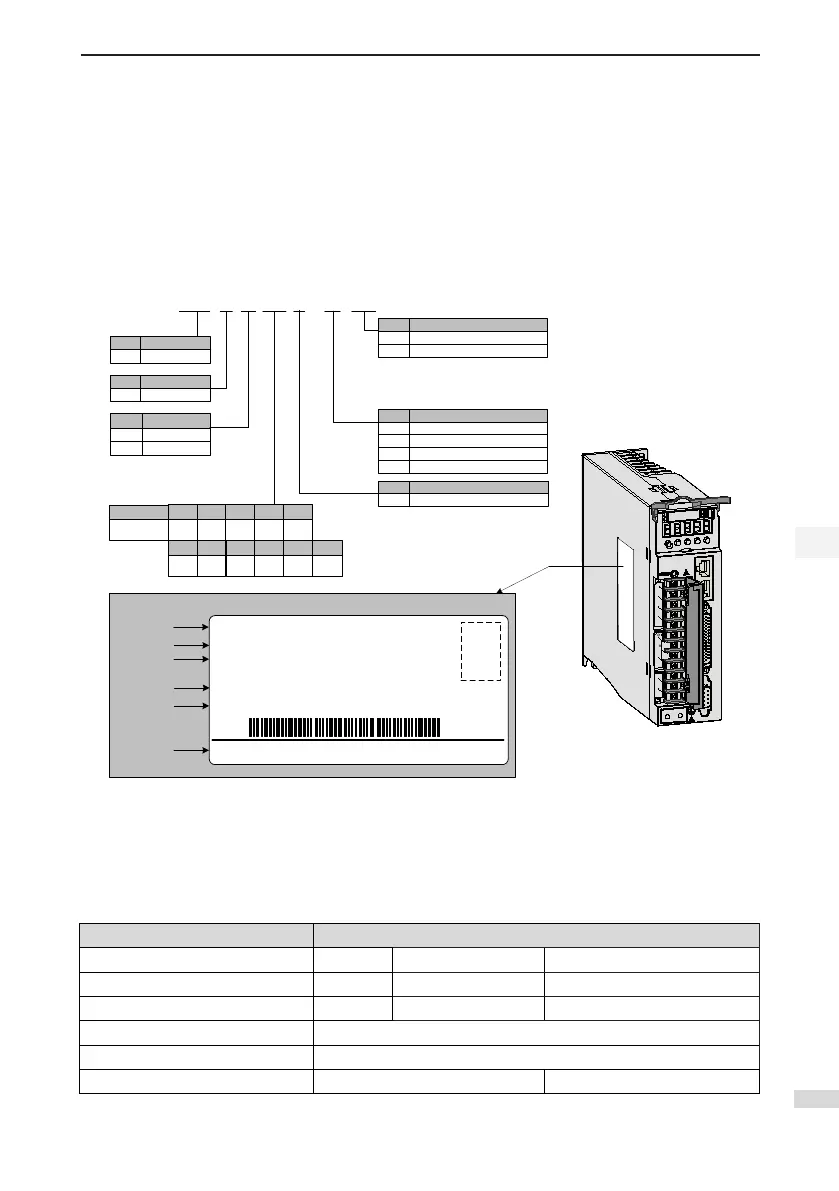

Figure 1-1 Designation rules and nameplate of servo drive
MODEL: IS620PS5R5I-INT
INPUT: 3PH AC 200-240V 3.7A 50/60Hz
1PH AC 200-240V 7.9A 50/60Hz
OUTPUT: 3
PH AC 0-240V 5.5A 0-400Hz 750W
Suzhou Inovance Technology Co.,Ltd.
Serial No.: 010500764GB00081
Model
Rated input
Rated output
Serial No.
IS620 P S 5R5 I - A
Product Type
IS620
Servo drive
Mark
Series
Mark
P
Pulse
S
220 V
Mark
Voltage Class
T
380 V
Rated output
current
8.4 A
8R4
Mark
12 A
012
17 A
017
21 A
021
26 A
026
7.6 A
7R6
5.5 A
5 R 5
1.6 A
1R6
2.8 A
2R8
3.5 A
3R5
5.4 A
5R4
Mounting Method
Mark
I
Substrate installation (standard)
Customized SpecificationMark
16-bit high-accuracy analogA
E-cam,
gantry synchronizationM
CANopenCO
CANlink
C
L1C
L2C
R
S
T
-
P
+
D
C
U
V
W
C
N
3
C
N
4
C
N
1
C
N
2
Version
Mark
-(a)
Other variants
-INT
International
-INT
Note (a): The model number may include a suffix
"XXXXXXXXXX", Where "XXXXXXXXXX" can be
blank or combination of any alphanumeric and/or
symbols that represents customer identity.
PRODUCT: AC Servo Drive
Product name
Manufacturer
Made in China
Certi-
ficates
Nameplate
1.1.2 Specications of Servo Drive
Electrical Specications
■
Single-phase 220 V
Item SIZE-A
Drive model IS620P S1R6 S2R8 S5R5
Continuous output current Arms 1.6 2.8 5.5
Maximum output current Arms 5.8 10.1 16.9
Main circuit power supply Single-phase 200 to 240 VAC, +10% to -10%, 50/60 Hz
Control circuit power supply Single-phase 200 to 240 VAC, +10% to -10%, 50/60 Hz
Braking capability External regenerative resistor Built-in regenerative resistor
