8.4 Extension Cards
7KHGULYHFDQLPSOHPHQW¿HOGEXVE\FRQQHFWLQJYDULRXVH[WHQVLRQFDUHV,WVXSSRUWVGLIIHUHQWW\SHVRI
encoders and user programming function. This chapter describes installation and use of these extension
cards. For more details, refer to the user manual that is delivered together with product.

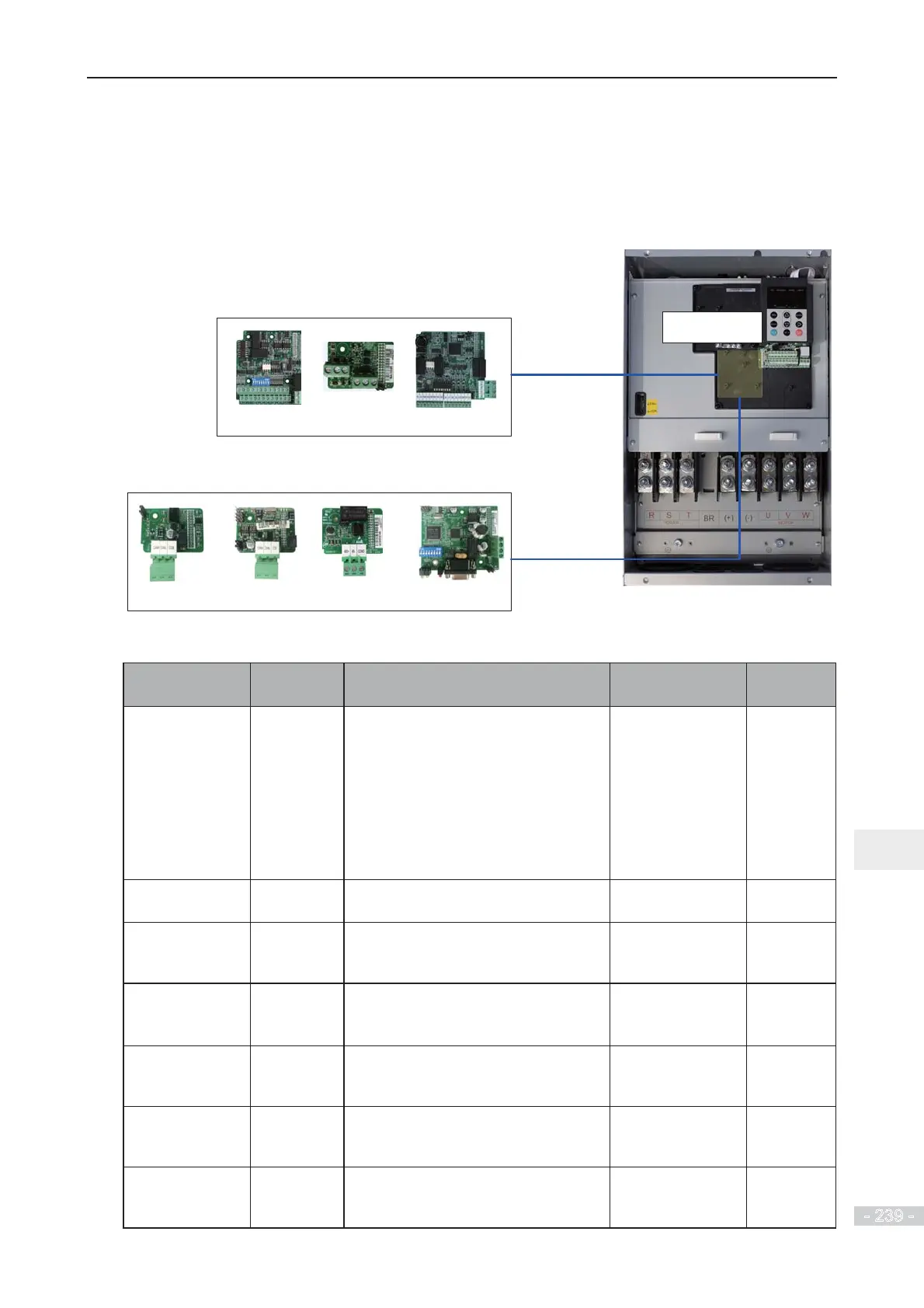

7KHIROORZLQJ¿JXUHVKRZVWKHPRXQWLQJSRVLWLRQVRIWKHVHH[WHQVLRQFDUGV
MD38IO1
MD38IO2
MD38DP2
MD38PC1
MD38CAN1
MD38CAN2 MD38TX1
Mounting position
of extension card
Communication
extension card
Functional
extension card
The following table lists the extension cards that are available for use with the drive.
Name Model Function Frequency Dividing
&RHI¿FLHQW
Remark
I/O extension
card 1
MD38IO1 Provides the following:
Ɣ
Five extra DI terminals.
Ɣ
An analog input.
Ɣ
A relay output.
Ɣ
A digital output.
Ɣ
An analog output.
Supports Modbus-RTU and CANlink
- Available for
all models
I/O extension
card 2
MD38IO2 Provides three extra DI terminals. - Available for
all models.
User
programmable
card
MD38PC1 User-programmable extension card,
completely compatible with the
Inovance H1U series PLC.
- Available for
all models.
CANlink
communication
card
MD38CAN1 Supports CANlink - Available for
all models.
CANopen
communication
card
MD38CAN2 Supports CANopen - Available for
all models.
Modbus
communication
card
MD38TX1 Supports Modbus-RTU Available for
all models.
3UR¿EXV'3
communication
card
MD38DP2 Supports PROFIBUS-DP Available for
all models.
