Inovance MD290 Series User Manual

2. Mechanical Installation
- 25 -
2

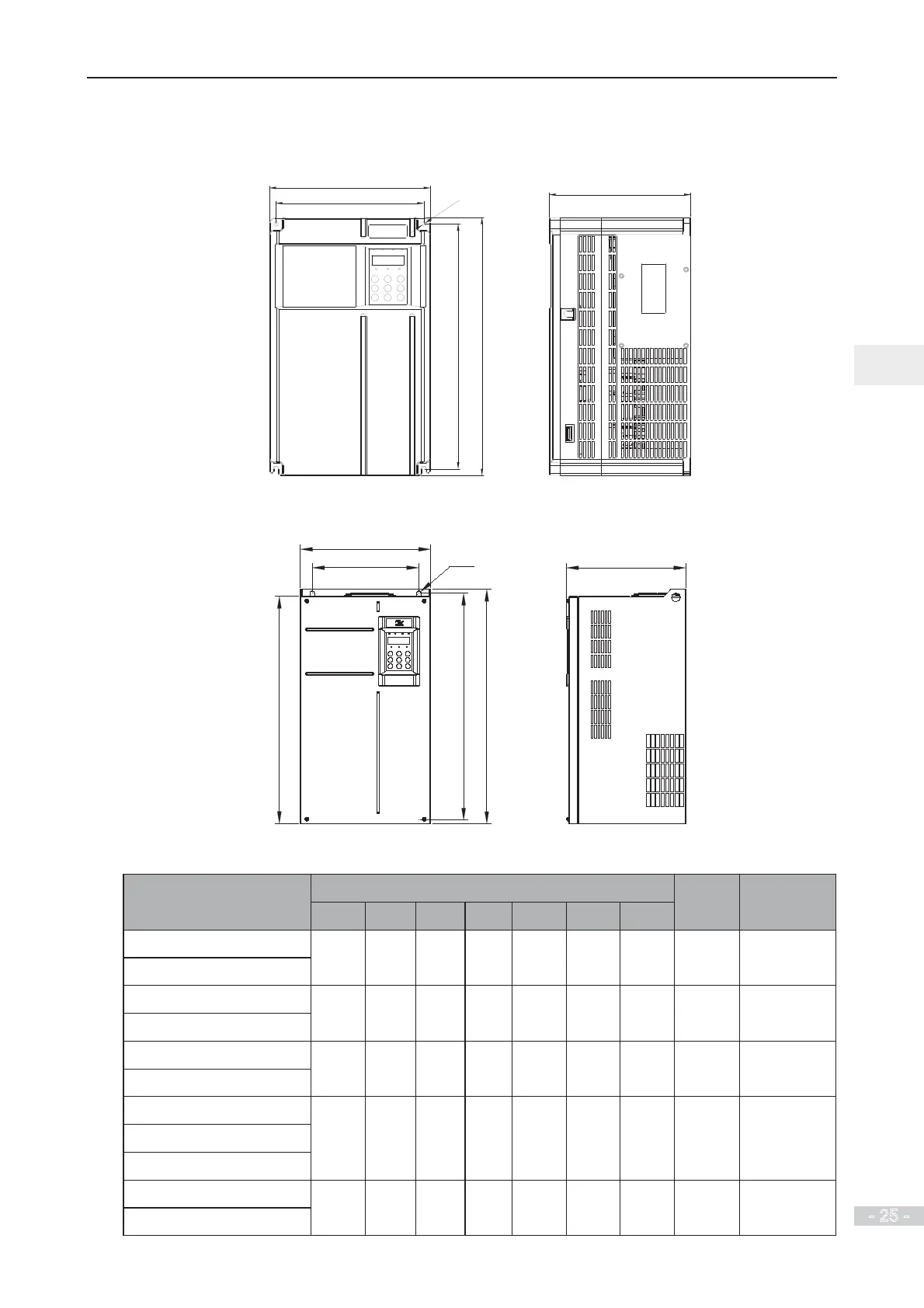

2.3 Mounting Dimensions
Figure 2-5 Overall dimensions of MD290T18.5G/22P to MD290T37G/45P (plastic housing)
A
W
B
H
D
d x 4
Figure 2-6 Overall dimensions of MD290T45G/55P to MD290T160G/200P (sheet metal housing)
D
W
A
H
B
H1
d x 4
Table 2-1 Mounting dimensions of MD29018.5G/22P to MD290T160G/200P
MD290 Model Dimensions (mm) Weight
(kg)
Housing
Type
ABHH1WD d
MD290T18.5G/22P 195 335 350 - 210 192 Ø6 9.1 Plastic
housing
MD290T22G
/30P
MD290T30G/37P 230 380 400 - 250 220 Ø7 17.5 Plastic
housing
MD290T37G
/45P
MD290T45G/55P 245 523 525 542 300 275 Ø10 35 Sheet metal
housing
MD290T55G
/75P
MD290T75G/90P 270 560 554 580 338 315 Ø10 51.5 Sheet metal
housing
MD290T90G/110P
MD290T110G/132P
MD290T132G/160P 320 890 874 915 400 320 Ø10 85 Sheet metal
housing
MD290T160G/200P
