1. Product Information
- 8 -
1
Chapter 1 Product Information
Safety Information
CAUTION
Ɣ
Do not lift/carry the drive by carrying the front cover. Failure to comply may result in
personal injury.
Ɣ
Follow proper electrostatic discharge (ESD) procedures when operating the drive.
Failure to comply will risk damaging the internal circuit of the drive.

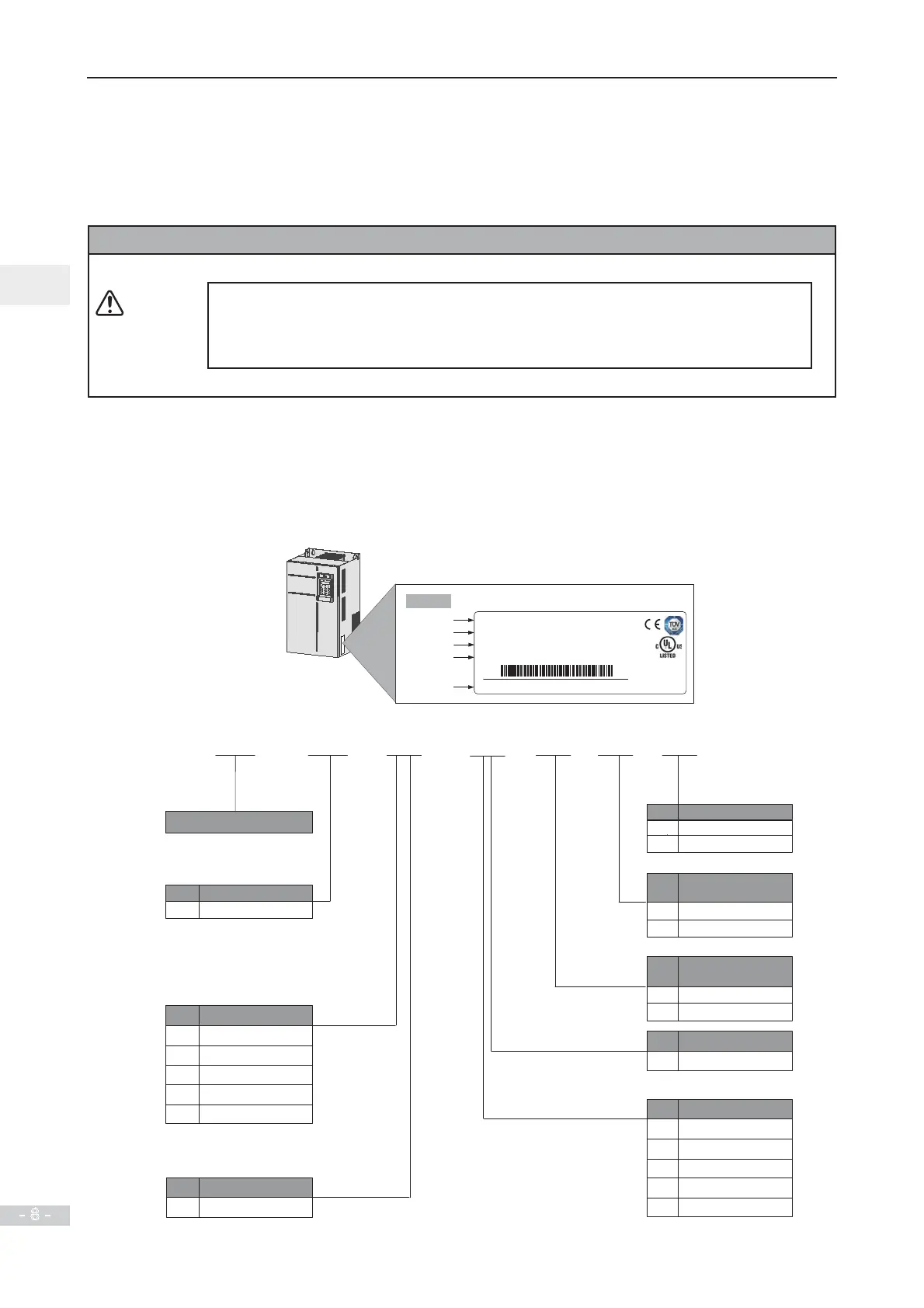

3URGXFW7\SH,GHQWL¿FDWLRQ
Each model in the range of the drive systems has a model number that identifies important
FKDUDFWHULVWLFVDQGVSHFL¿FDWLRQVIRUWKDWSDUWLFXODUXQLW
)LJXUH3URGXFWW\SHLGHQWL¿FDWLRQ
MODEL: MD290T18.5G/22P-INT
INPUT: 3PH AC 380-480V 59.0A 50Hz/60Hz
OUTPUT: 3PH AC 0-480V 45.0A 0-500Hz 22kW
Suzhou Inovance Technology Co.,Ltd.
S/N: Serial Number
AC drive model
Rated input
Rated output
S/N code
Nameplate
Manufacturer
MD290 series AC drive
MD290
T
Voltage Class
T
General type
Mark
G
Mark
Type of Applicable Motor
Three-phase 380 to 480 V
With Built-in
Braking Unit
With Output Reactor
and Cabinet
No
Null
Mark
E467465
IND.CONT.EQ.
-L
Version
Variant 1
Null
Mark
Variant 2
-INT
18.5
Mark
18.5
Applicable Motor (kW)
...
...
160
160
18.5
22 P
G
Yes
-INT
...
...
450
450
No
B
Null
Yes
Mark
Fan, pump
Mark
P
Type of Applicable Motor
18.5
Mark
22
Applicable Motor (kW)
...
...
160
200
...
...
450
500
/
