Inovance MD290T45G/55P - Page 116

6. Description of Parameters
- 115 -
6
$WR$GH¿QH$,FXUYHDQG$,FXUYHZKLFKKDYHWKHVLPLODUIXQFWLRQRI$,
curve 1 to AI curve 3. AI curve 1 to AI curve 3 are linear correspondence and AI curve 4
and AI curve 5 are four-point correspondence.

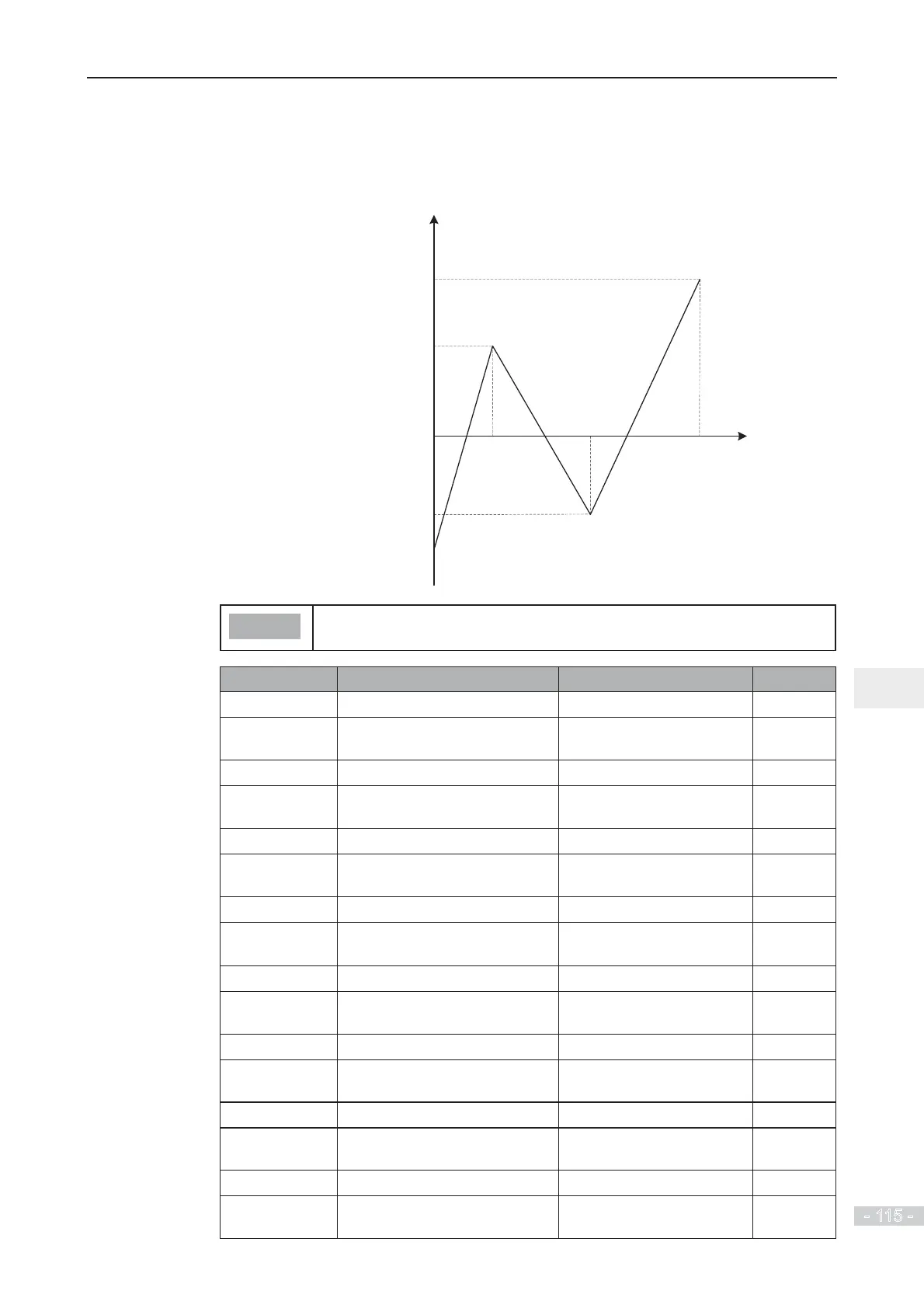

Figure 6-15 Set AI curve 4 and AI curve 5
AI input
voltage
AI corresponding
percentage
0 V (0 mA)
10 V (20 mA)
Corresponding percebtage
of AI max. input
Corresponding percentage
of AI curve inflexion 1 input
Corresponding percentage of
AI curve inflexion 2 input
Corresponding percentage
of AI min. input
AI curve
inflexion 1
AI curve
inflexion 2
100%
-100%
Note
:KHQVHWWLQJ$,FXUYHDQG$,FXUYHFXUYHPLQLQSXWLQÀH[LRQYROWDJH
LQÀH[LRQYROWDJHDQGFXUYHPD[LQSXWLQFUHDVHVXFFHVVLYHO\
Function Code Parameter Name Setting Range Default
A6-00
AI curve 4 min. input -10.00 V to A6-02 0.00 V
A6-01
Corresponding percentage of
AI curve 4 min. input
-100.0% to 100.0% 0.0%
A6-02
$,FXUYHLQÀH[LRQLQSXW A6-00 to A6-04 3.00 V
A6-03
Corresponding percentage of
$,FXUYHLQÀH[LRQLQSXW
-100.0% to 100.0% 30.0%
A6-04
$,FXUYHLQÀH[LRQLQSXW A6-02 to A6-06 6.00 V
A6-05
Corresponding percentage of
$,FXUYHLQÀH[LRQLQSXW
-100.0% to 100.0% 60.0%
A6-06
AI curve 4 max. input A6-06 to 10.00 V 10.00 V
A6-07
Corresponding percentage of
AI curve 4 max. input
-100.0% to 100.0% 100.0%
A6-08
AI curve 5 min. input -10.00 V to A6-10 0.00 V
A6-09
Corresponding percentage of
AI curve 5 min. input
-100.0% to 100.0% 0.0%
A6-10
$,FXUYHLQÀH[LRQLQSXW A6-08 to A6-12 3.00 V
A6-11
Corresponding percentage of
$,FXUYHLQÀH[LRQLQSXW
-100.0% to 100.0% 30.0%
A6-12
$,FXUYHLQÀH[LRQLQSXW A6-10 to A6-14 6.00 V
A6-13
Corresponding percentage of
$,FXUYHLQÀH[LRQLQSXW
-100.0% to 100.0% 60.0%
A6-14
AI curve 5 max. input A6-14 to 10.00 V 10.00 V
A6-15
Corresponding percentage of
AI curve 5 max. input
-100.0% to 100.0% 100.0%
