1. Product Information
- 12 -
1

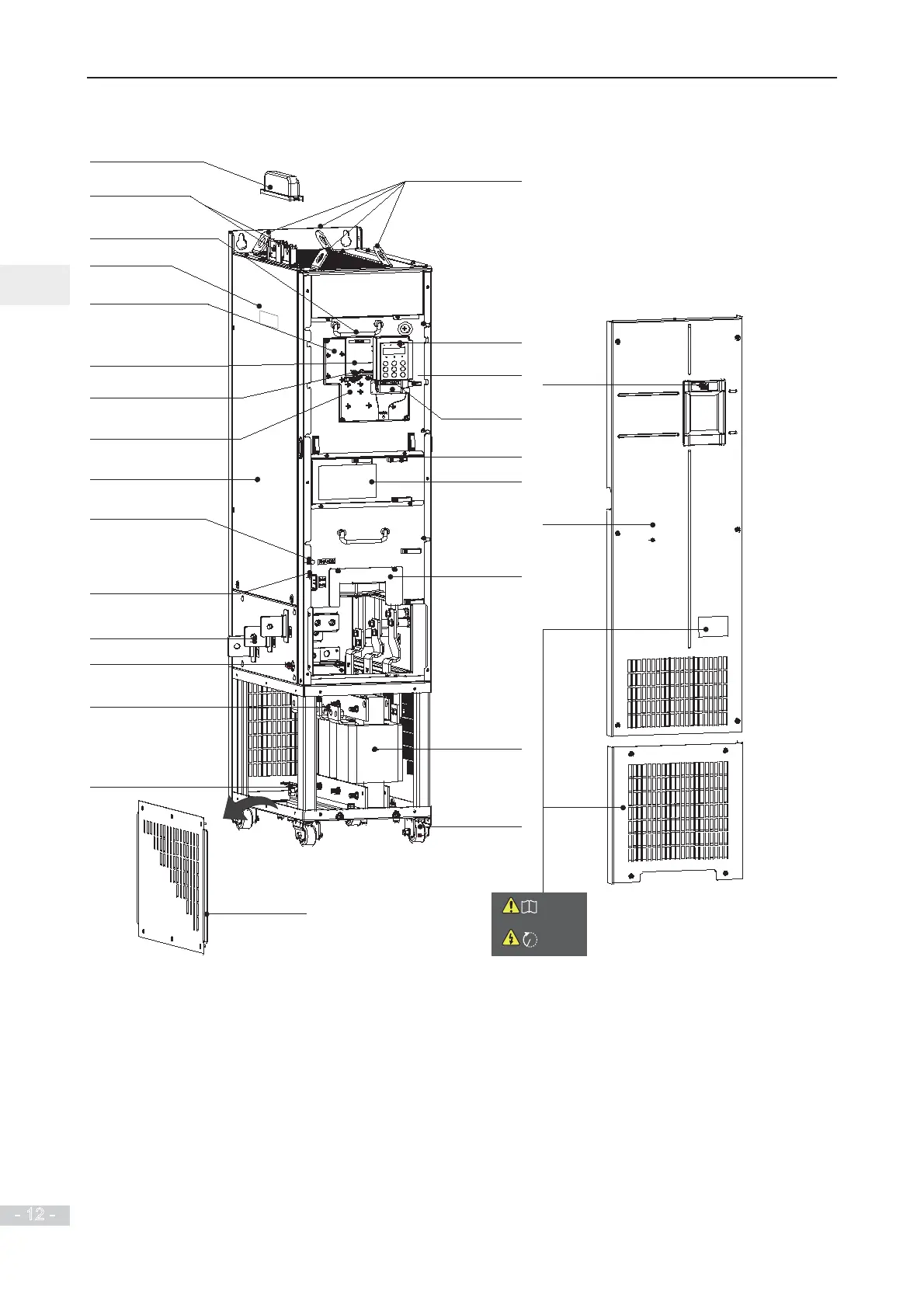

Figure 1-5 Internal view of MD290T200G-L to MD290T450G-L and MD290T220P-L to MD290T500P-L
Top hoist rings
DC bus terminals
Warning label
Logo
Castor
Fan box
For replacement of
fan, see section 9.3.
Cable clamp
AC output reactor
Front lower
cover
Operating panel
See section 4.2.
Interface of remote
operating panel
See section 8.3.
Front upper
cover
See section 2.5.
Left side board of base
Label of main
circuit wiring
Protective cover of
DC bus terminals
Barcode
View the serial number and
model of the drive here.
Nameplate
Fixing pin of
extension PG card
See section 8.4.3.
Cabling tray and fixing pin of
ground cable of control board
This ground cable can only be connected to
the ground bar after the system is grounded
reliably.
Ground bar
It is used for grounding of the
PG card and control board.
Fixing pin of
extension card
See sections 8.4.1 and 8.4.2.
Housing
Live indicator
Do not remove/install the drive
when this indicator is lighting.
EMC and VDR screw
Refer to Power Grid System in
section 3.2.2 and requirement on
current leakage in section A.1.8.
Input terminals (R, S, T)
See sections 3.2.
Bottom hoist hole
Output terminals (U, V, W)
Grounding terminal
See sections 3.2.2.
Control circuit
terminals
See sections 3.3.
Read the user guide of the AC drive carefully before
installation or operation.
Do not remove the front cover while the power is on or
within10 minutes after the power is turned off.
Wait for a period of 10 minutes after the AC drive is powered
off before starting any repair, maintenance or wiring work .
i
10min
