Inovance MD290T45G/55P User Manual

Appendix
- 300 -
12
Ɣ

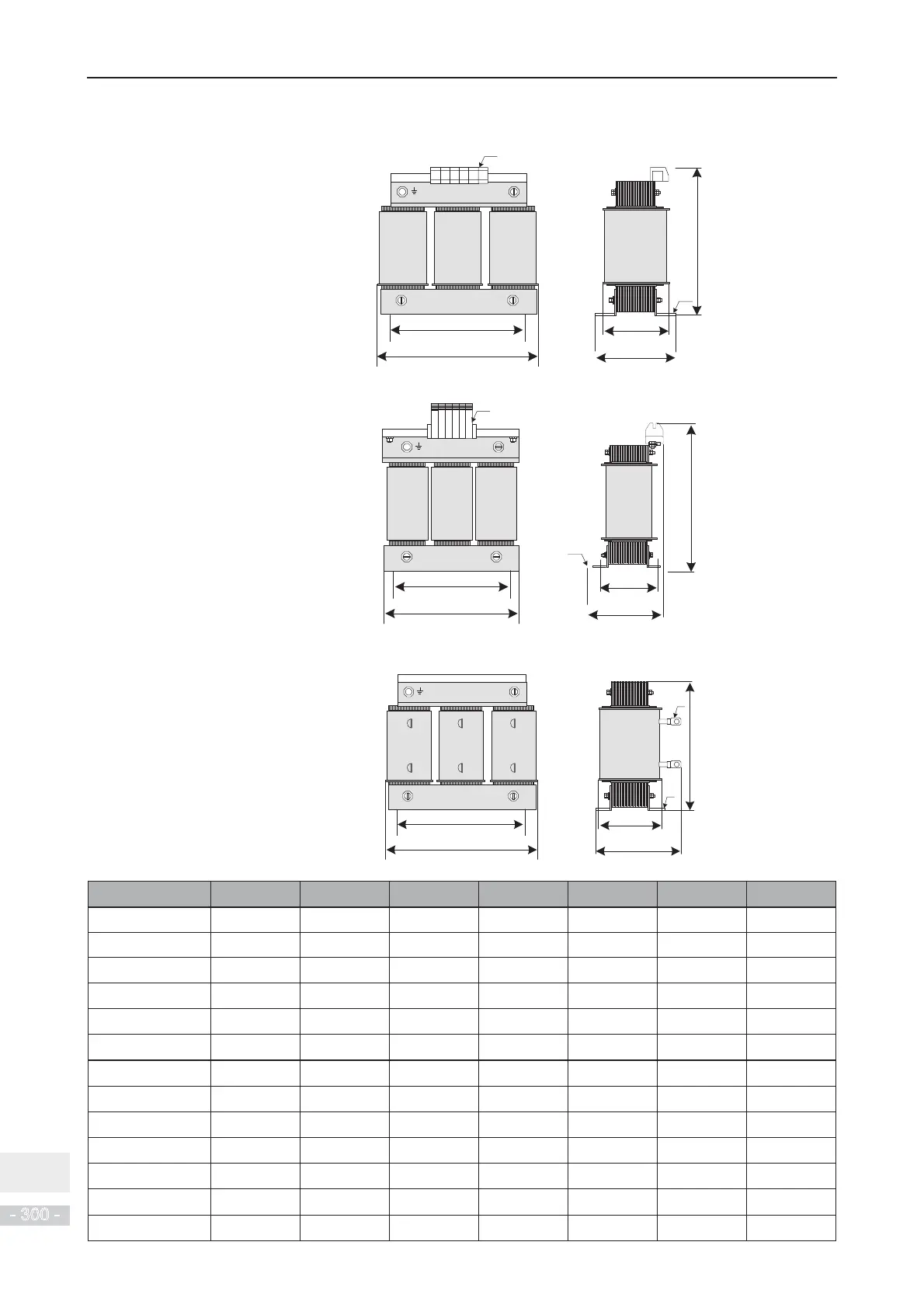

Mounting Dimensions (Unit: mm)
D
E
B
A
F
C
G
4-45A
D
E
B
A
F
C
G
60-110A
D
E
B
A
F
C
124-330A
G
Reactor Series A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G
4 and 7.8A 100 max.60 max.115 56 34 4.8 x 9 2.5 mm
2
10A 100 max.70 max.115 56 43 4.8 x 9 2.5 mm
2
14A 125
max.70 max.135 100 45 5 x 8 2.5 mm
2
17A 125 max.75 max.135 100 55 5 x 8 2.5 mm
2
24A 125 max.75 max.135 100 55 5 x 8 4 mm
2
32A 155 max.95 max.170 130 56 8 x 12 10 mm
2
45A 155 max.110 max.190 130 72 8 x 12 10 mm
2
60 and 72A 155 max.125 max.190 130 70 8 x 12 16 mm
2
90A 190 max.115 max.225 170 57 8 x 12 35 mm
2
110A 190 max.130 max.220 170 67
8 x 12 35 mm
2
124A 190 max.180 max.160 170 67 8 x 12
I
8
143A 190 max.180 max.160 170 77 8 x 12
I
8
156 and 170A 190 max.180 max.160 170 77 8 x 12
I
10
