2. Mechanical Installation
- 42 -
2

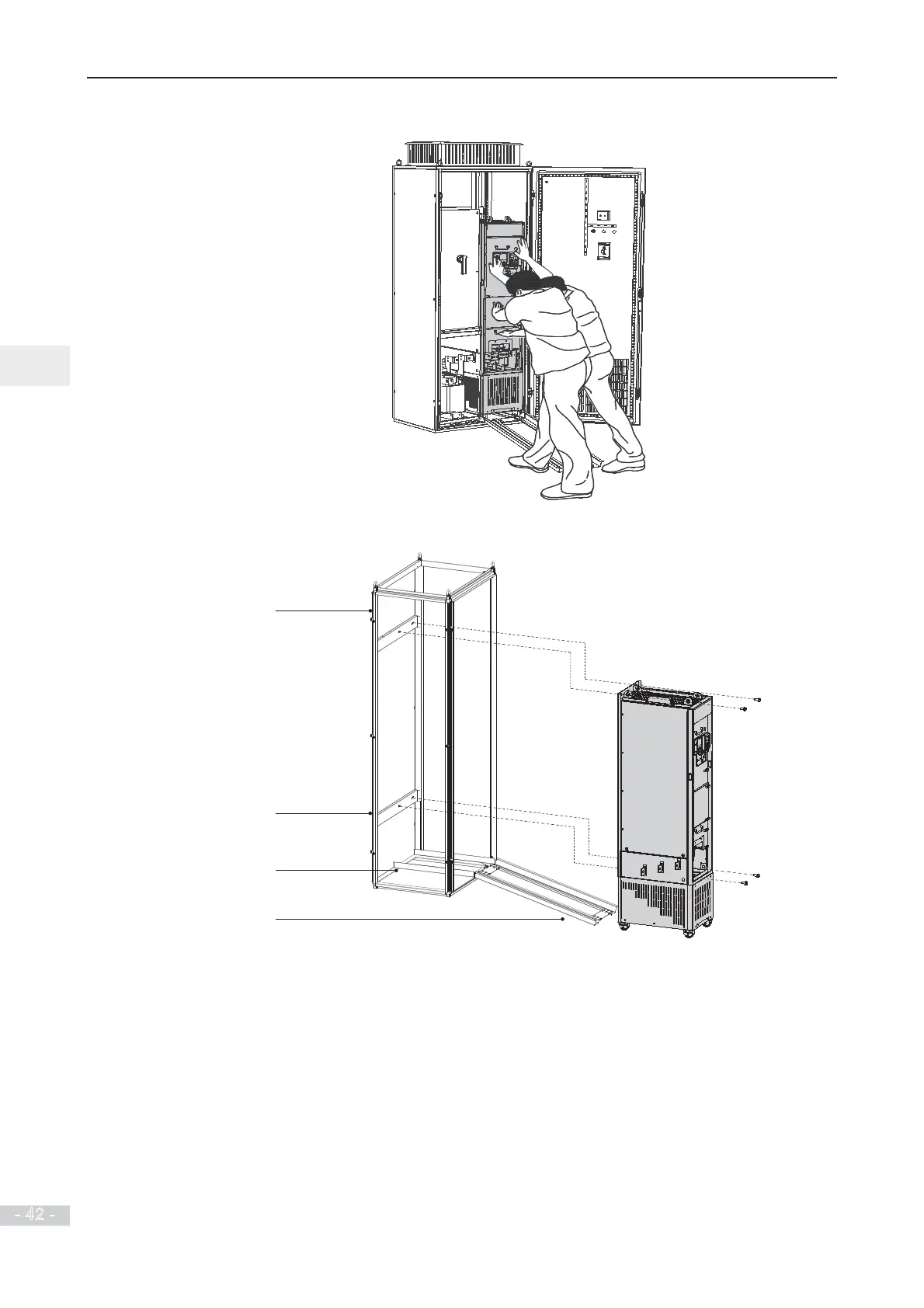

Figure 2-22 Push-in completed
Ɣ
)L[WKH$&GULYHWRWKHEHDPVRQWKHEDFNRIWKHFDELQHWDVVKRZQLQWKHIROORZLQJ¿JXUH
Cabinet
frame
Beams
(on cabinet back)
Mounting bracket
Guide rail (optional)
Ɣ
Check that installation of the drive is secure and remove the guide rail.
