3. Electrical Installation
- 50 -
3
Ƶ
Cable Dimensions and Tightening Torque
Note
Ɣ
Data and models recommended in this section are for reference only.
The user selected cable diameter must not be larger than the terminal
ZLGWKLQWKHIROORZLQJ¿JXUHV
Ɣ
Selection of IEC cables is based on:
–
Standards EN 60204-1 and IEC 60364-5-52
–
PVC insulation
–
40°C ambient temperature and 70°C surface temperature
–
Symmetrical cable with copper mesh shield
–
A maximum of 9 cables are allowed in a
cable tray.
Ɣ
For North America, the recommended cables in the preceding table must
be copper wires rated 600 V, 75°C.

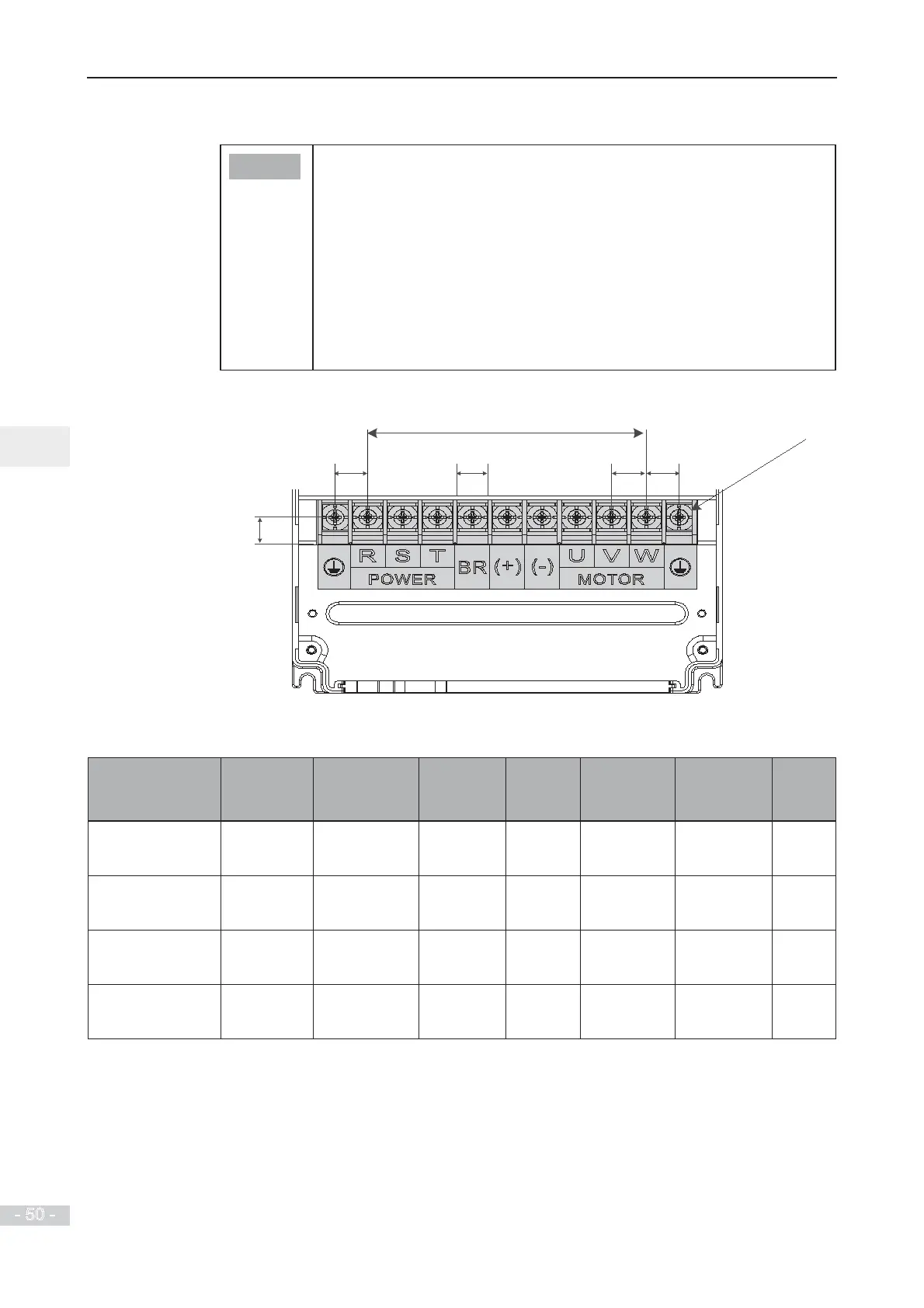

Figure 3-1 Terminal dimensions of MD290T18.5G/22P and MD290T22G/30P
136
16
15 17
16
15
M6 combination screw
Table 3-2 Recommended cable dimensions and tightening torque of MD290T18.5G/22P and
MD290T22G/30P
AC Drive Model Rated Input
Current (A)
Power Input/
Output Cable
Crimp
Terminal
Model
Ground
Cable
Crimp
Terminal
Model
Tightening
Torque
(N·m)
Screw
Spec.
MD290T18.5G 49.5 3 x 10 mm
2
3 x 6 AWG
8-6 10 mm
2
8 AWG
8-6 4.0 M6
MD290T22P 59 3 x 16 mm
2
3 x 4 AWG
14-6 16 mm
2
8 AWG
8-6 4.0 M6
MD290T22G 59 3 x 16 mm
2
3 x 4 AWG
14-6 16 mm
2
8 AWG
8-6 4.0 M6
MD290T30P 65.8 3 x 16 mm
2
3 x 4 AWG
14-6 16 mm
2
8 AWG
8-6 4.0 M6
To Next Page
