19
Insignia 46"/55" 1080p LED TV
www.insigniaproducts.com

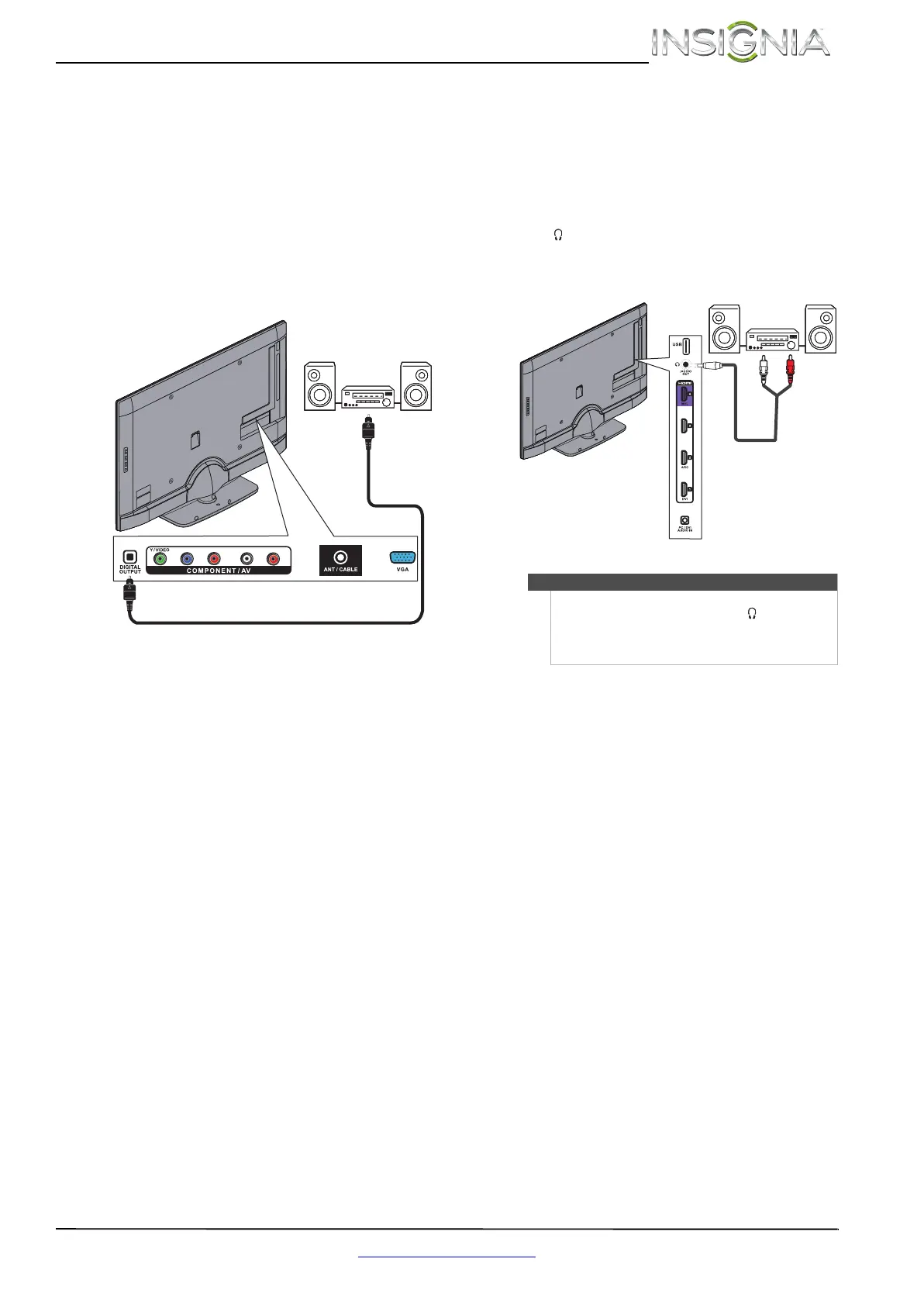

Connecting a basic home theater system
Using digital audio
To connect a basic home theater system using
digital audio:
1 Make sure that your TV’s power cord is
unplugged and the home theater system is
turned off.
2 Connect a digital optical audio cable (not
provided) to the DIGITAL OUTPUT jack on the
back of your TV and to the optical AUDIO IN
jack on the digital home theater system.
Using analog audio
To connect a home theater system using analog
audio:
1 Make sure that your TVs power cord is
unplugged and the home theater system is
turned off.
2 Connect a 3.5mm audio cable (not provided) to
the (AUDIO OUT) jack on the side of your TV
and to the AUDIO IN jacks on the analog home
theater system.
Y / VIDEO
P
B
P
R
L R
Digital optical audio cable
Home theater system
Back of TV
Note
You can connect headphones, an amplifier, a home
theater system, or a sound bar to the (AUDIO OUT)
jack. If you want to use headphones, you need to
disconnect the amplifier, home theater system, or
sound bar.
3.5mm audio cable
Home theater system
Side of TV
