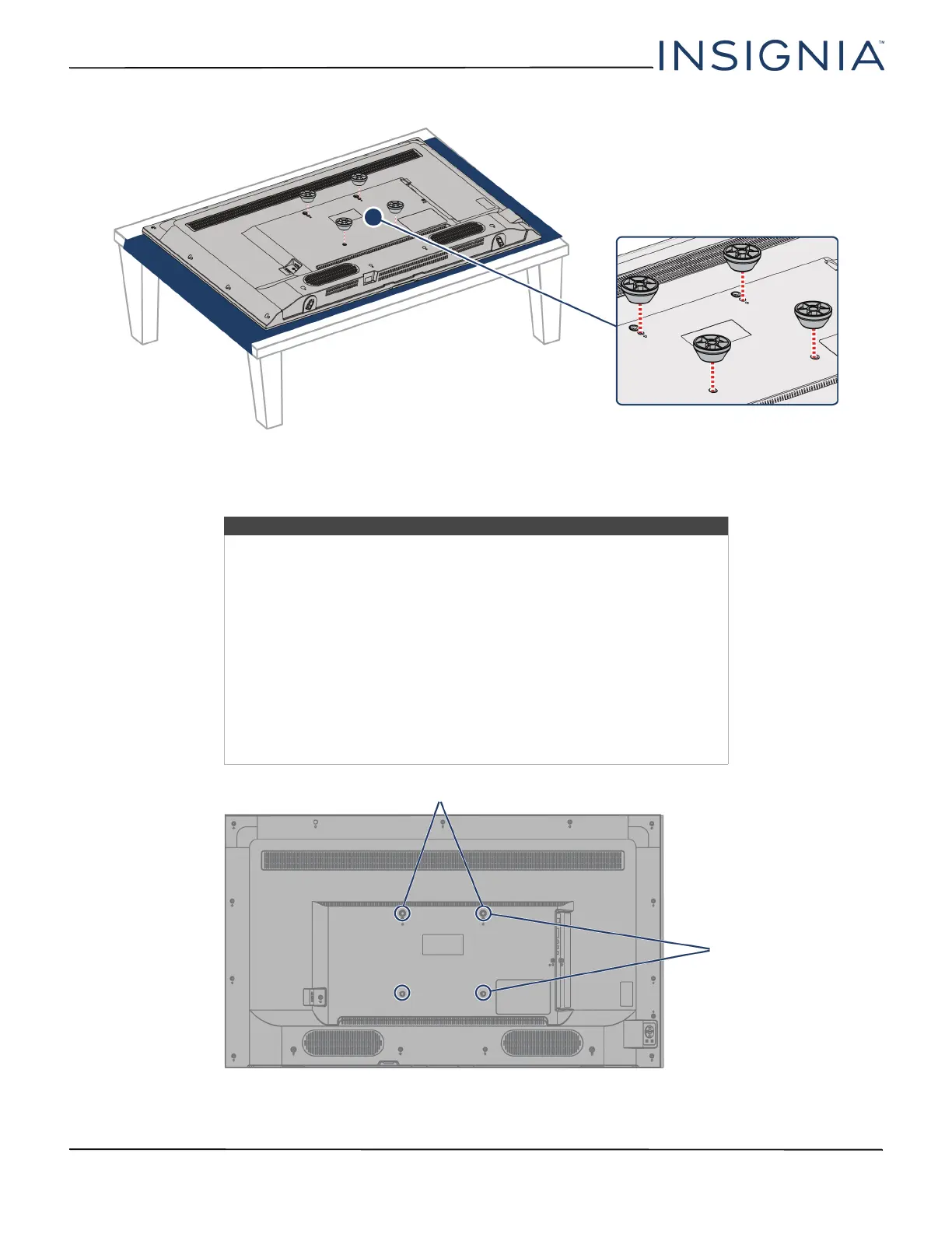

3 Insert the four provided spacers into the mount screw holes on the back of your TV.
4 Attach the wall-mount bracket to your TV using either the four provided M6 × 30 mm screws or the screws that
came with the wall-mount bracket. See the instructions that came with the wall-mount bracket for information
about which screws to use and how to correctly hang your TV.
Notes
• The length of the wall-mount screws vary depending on the wall-mount
bracket you purchased. We recommend that you use the wall-mount
screws and spacers that came with your TV. They fit most wall-mount
brackets.
• If the provided screws and spacers do not fit your wall-mount bracket,
make sure that the screws you use are the correct length. The threaded
parts of the screws that are inserted into the back of your TV must be at
least 9.5 mm in length and not more than 11.5 mm in length. (This
length does not include the spacers.) If the screws are too short, your TV
may fall off the wall-mount bracket. If the screws are too long, they may
damage components inside your TV. For more information, see the
instructions that came with the wall-mount bracket.
• The mounting holes on the back of your TV take type M6 screws.
7.87 in. (200 mm)
7.87 in. (200 mm)
