Insignia NS-48D420NA16 User Manual

15
Insignia 48" 1080p 60Hz LED TV
www.insigniaproducts.com

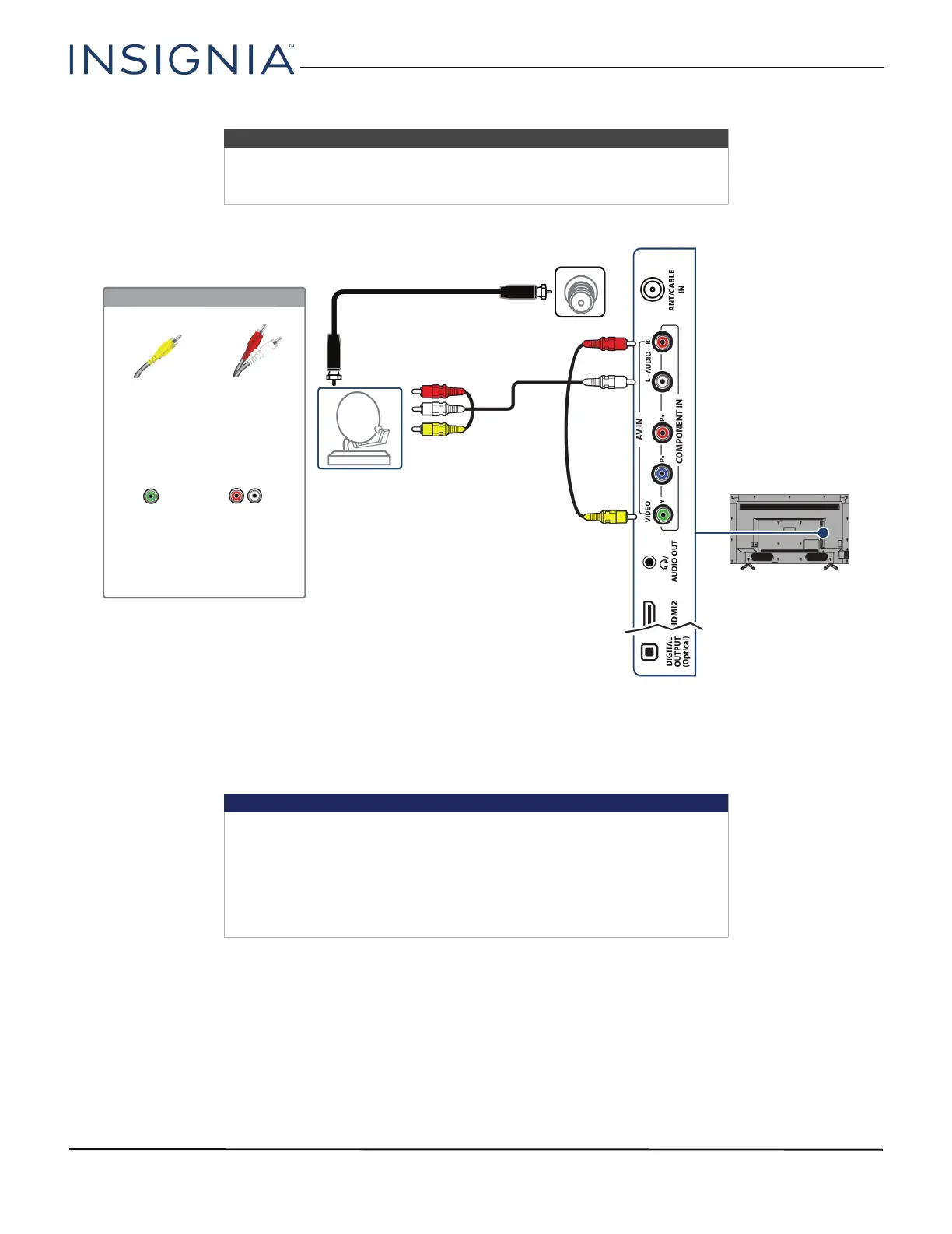

AV (composite video) (good)
1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the green VIDEO/Y jack and L and R AUDIO jacks on your TV and to the AV
and audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to highlight Component/AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
VIDEO/Y jack.
Important
•The VIDEO/Y, P
B, and PR video jacks (used to connect a component
device) share the L and R AUDIO jacks with the VIDEO/Y jack (used to
connect an AV device). You can only connect one component video or
AV device at a time. We suggest upgrading to HDMI if your cable or
satellite box supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
Cable or
satellite box
AV cable
Side of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV
Cable wall
jack

Insignia NS-48D420NA16 Specifications

General

Screen Size	48 inches
Resolution	1920 x 1080
Display Type	LED
Refresh Rate	60Hz
HDMI Ports	3
USB Ports	1
Smart TV	Yes
Backlight Type	Direct LED
Built-in Wi-Fi	Yes
Energy Star Certified	Yes
