10
NS-48D420NA16 Insignia 48" 1080p 60Hz LED TV
www.insigniaproducts.com

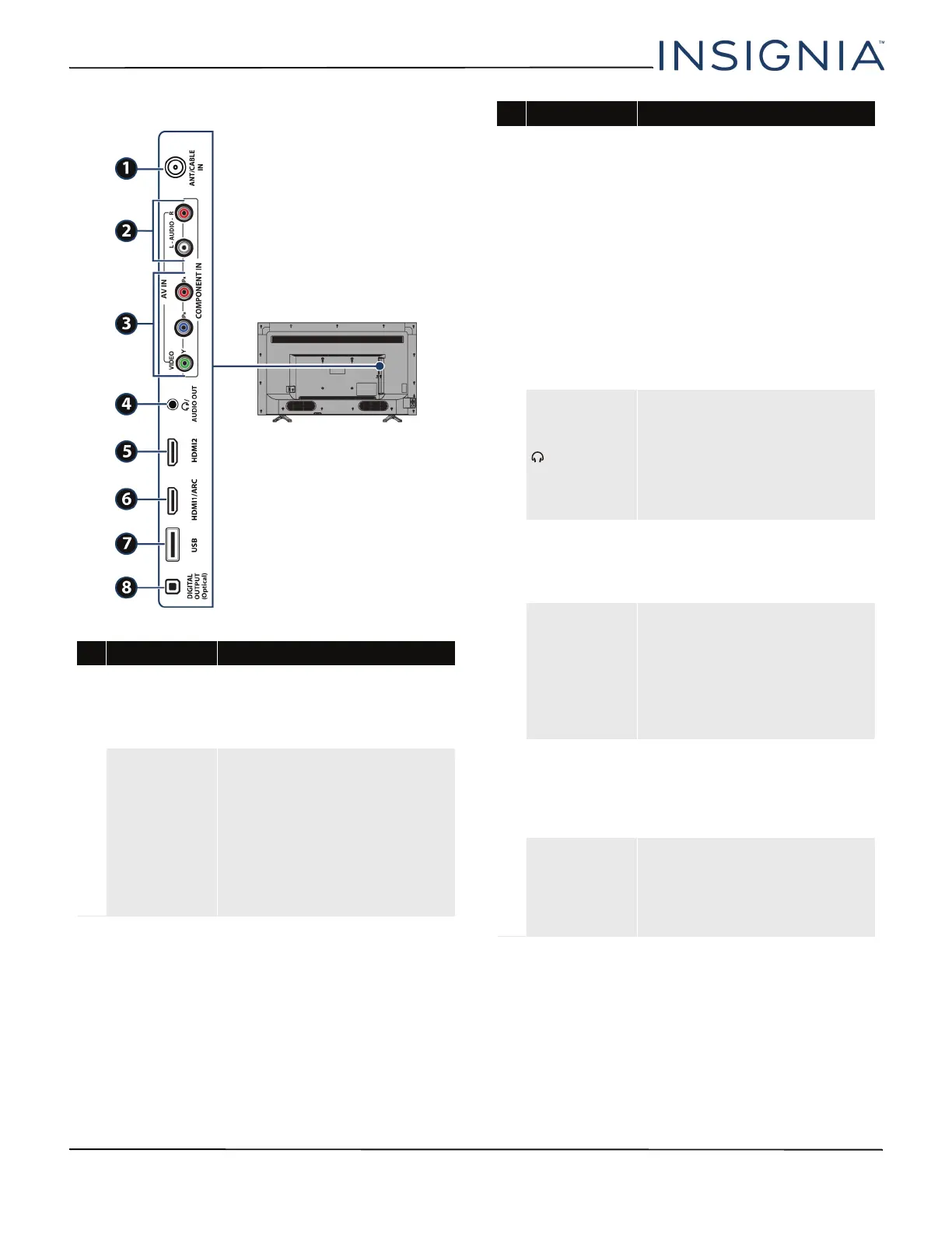

Side jacks
# Item Description
1 ANT/CABLE IN
Connect an antenna or cable TV to
this jack. For more information, see
Coaxial (good) on page 16 or
Connecting an antenna or cable TV
(no box) on page 17.
2
L and R AUDIO
Connect the audio for a component
video device to these jacks. For
more information, see Component
video (better) on page 14, 19, or 22.
OR
Connect the audio for an AV
(composite video) device to these
jacks. For more information, see AV
(composite video) (good) on
page 15, 20, or 23.
3
VIDEO/Y, P
B, PR
OR
VIDEO/Y
Connect the video for a component
video device to the VIDEO/Y, P
B,
and P
R jacks. For more information,
see Component video (better) on
page 14, 19, or 22.
OR
Connect the video for an AV
(composite video) device to the
VIDEO/Y jack. For more
information, see AV (composite
video) (good) on page 15, 20, or 23.
Important: The component video
and AV (composite video) jacks are
shared. You can connect only one
component video or AV device at a
time.
4
/AUDIO OUT
Connect headphones, a sound bar,
analog speaker system, or a home
theater system to this jack to listen
to TV audio through external
speakers. For more information, see
Connecting headphones on
page 26 or Analog audio on
page 28.
5 HDMI2
Connect an HDMI device to this
jack. For more information, see
HDMI (best) on pages 13, 18, or 21
or Connecting a computer on
page 24.
6
HDMI1/ARC
Connect an HDMI device to this
jack. For more information, see
HDMI (best) on pages 13, 18, or 21
or Connecting a computer on
page 24.
OR
Connect an ARC-enabled home
theater receiver to this jack.
7 USB
Connect a USB flash drive to this
jack to view compatible JPEG
picture files. For more information,
see Connecting a USB flash drive on
page 25 and Using a USB flash drive
on page 41.
8
DIGITAL
OUTPUT
(Optical)
Connect a sound bar, digital
speaker system, or home theater
system to this jack to listen to TV
audio through external speakers.
For more information, see Digital
audio on page 27.
# Item Description
