Insignia NS-48D420NA16 User Manual

14
NS-48D420NA16 Insignia 48" 1080p 60Hz LED TV
www.insigniaproducts.com

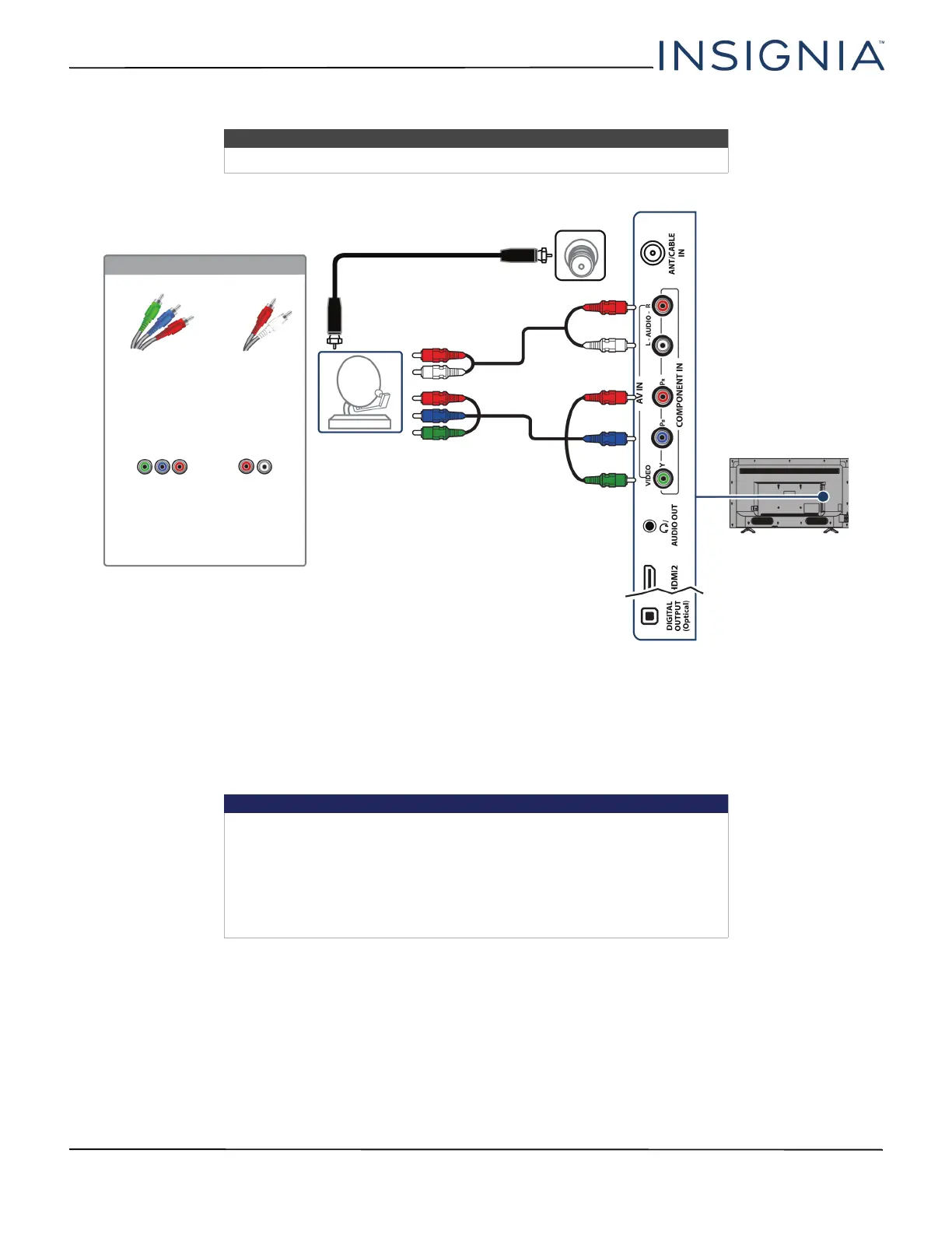

Component video (better)
1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a component video cable (not provided) to the VIDEO/Y, P
B, and PR jacks on your TV and the component
video out jacks on the cable or satellite box.
4 Connect an audio cable (not provided) to the L and RAUDIO jacks on your TV and to the audio out jacks on the
cable or satellite TV box.
5 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
6 Press INPUT to open the INPUT SOURCE list.
7 Press
S or T to highlight Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Important
•The VIDEO/Y, P
B, and PR video jacks (used to connect a component
device) share the L and R AUDIO jacks with the VIDEO/Y jack (used to
connect an AV device). You can only connect one component video or
AV device at a time. We suggest upgrading to HDMI if your cable or
satellite box supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
Audio cable
Cable or
satellite box
Component video
cable
Side of TV
Component
video cable
connectors
Audio cable
connectors
Analog
audio jacks
Component
video jacks
On your TV
Cable
wall jack
