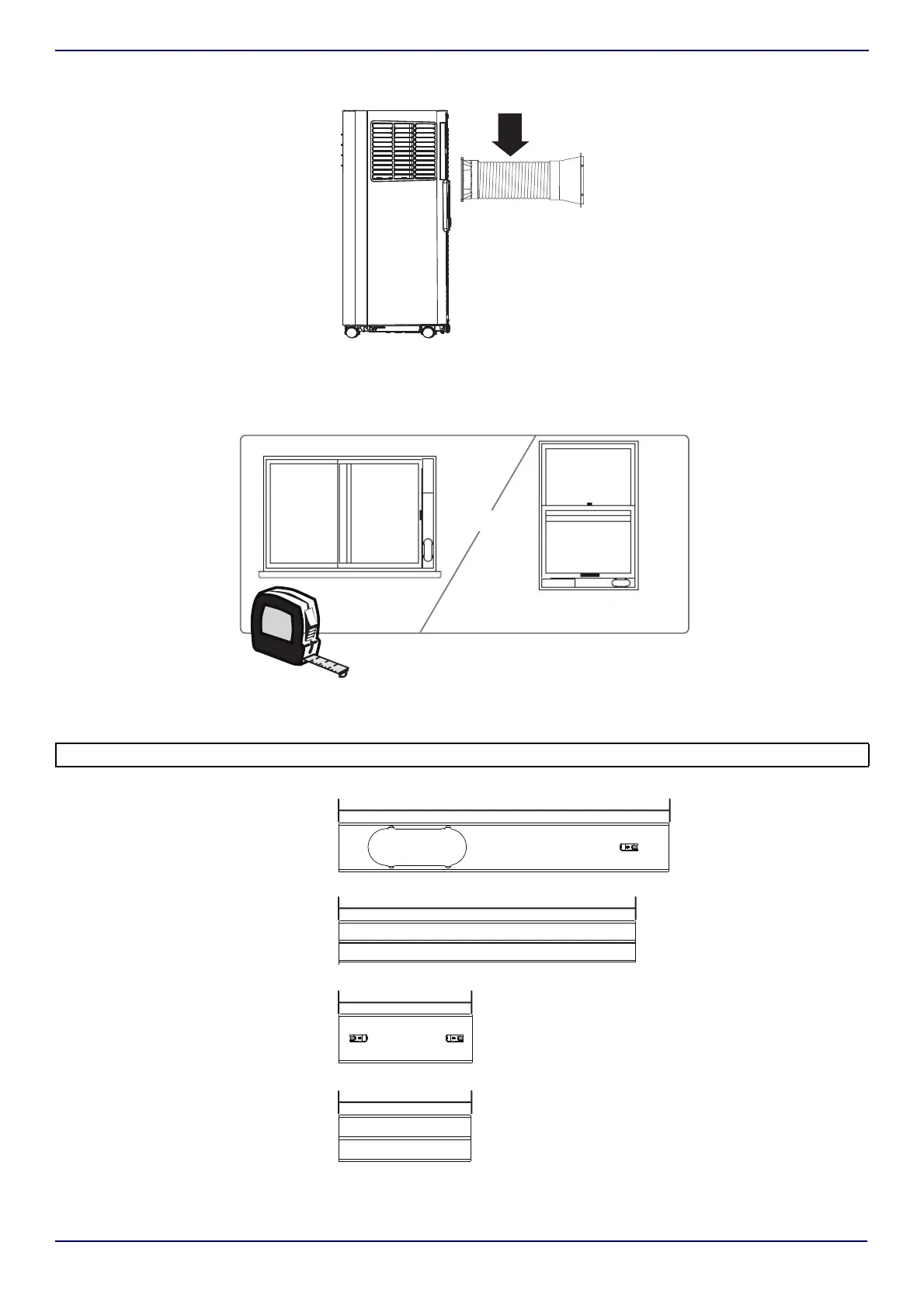

3 Clip the exhaust hose assembly (exhaust hose connector) into the exhaust outlet from top to bottom.
Installing your air conditioner
1 Measure the window size.
2 Install the window sealing plate(s) and vent panel in the window opening, adjusting the length to fit the window
opening. You may need to cut the plate(s) to fit your window. Double-check the length before you cut.
Note: The window sealing kit works with vertical and horizontal sliding windows. You do not need to remove your window screen.
Plate 1
Plate 2
Plate 3
50.8 cm (20 in.)
43.3 cm (17 in.)
Vent panel
25.7 cm (10.11 in.)
24.2 cm (9.52 in.)
