Insignia NS-AC14PWH5-C - Configuring the Vent Panel; Vent Panel and Plate Combinations; Securing the Hose Adapter

www.insigniaproducts.com
16
3 Insert the hose adapter into the vent panel, then slide the adapter until it clicks into place.
68.5 cm (26.96 in.)
87.6 cm (34.48 in.)
106.8 cm (42 in.)
124.5 cm (49 in.)

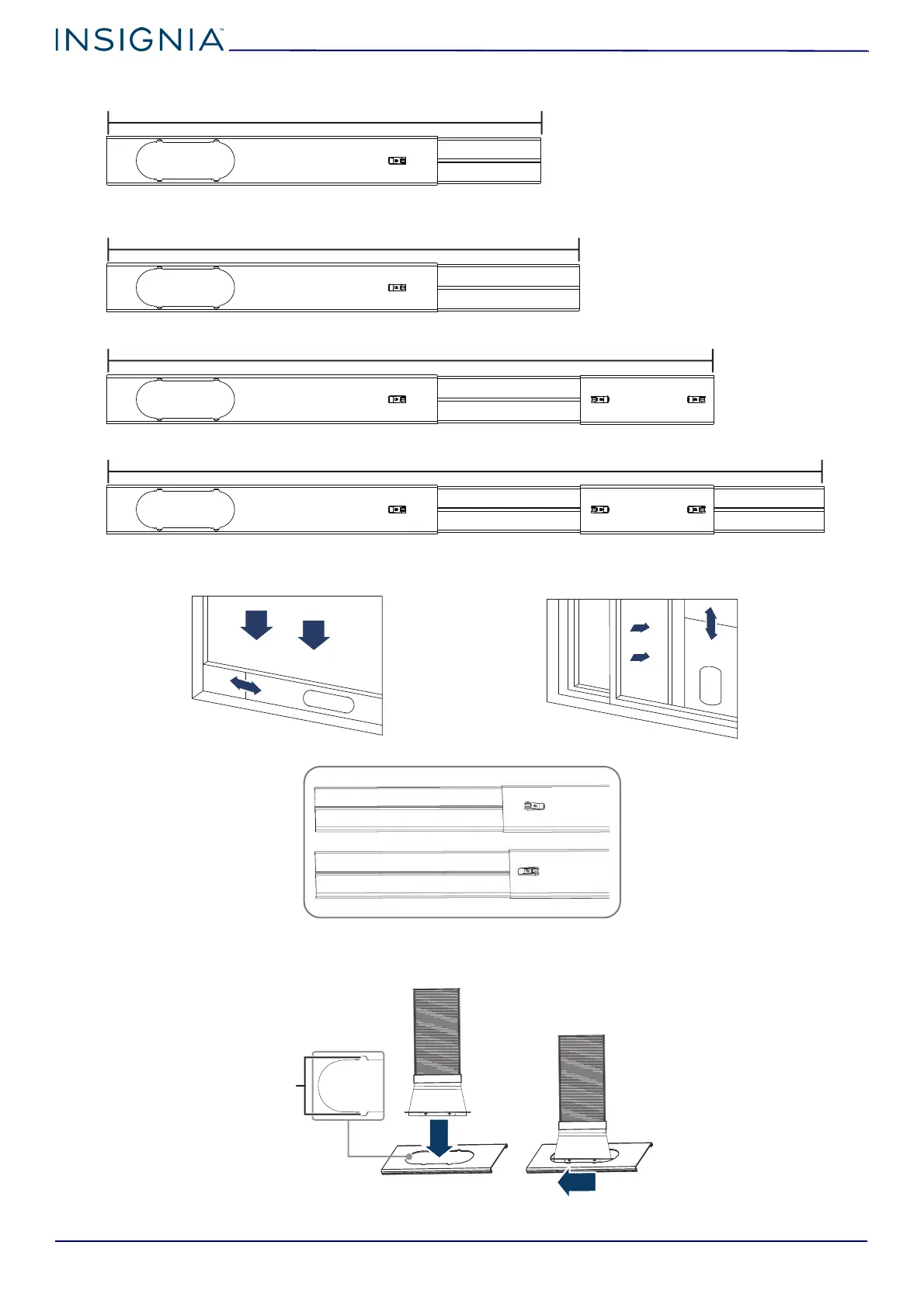

Length of vent panel and plate 3: 50.8~68.5 cm (20.0~27.0 in.)
Length of vent panel and plate 1: 68.5~87.6 cm (27.0~34.5 in.)
Length of vent panel and plates 1 and 2: 87.6~106.8 cm (34.5~42.0 in.)
Length of vent panel and plates 1, 2, and 3: 106.8~124.5 cm (42.0~49.0 in.)
Lock
Open
Small gaps (4)
