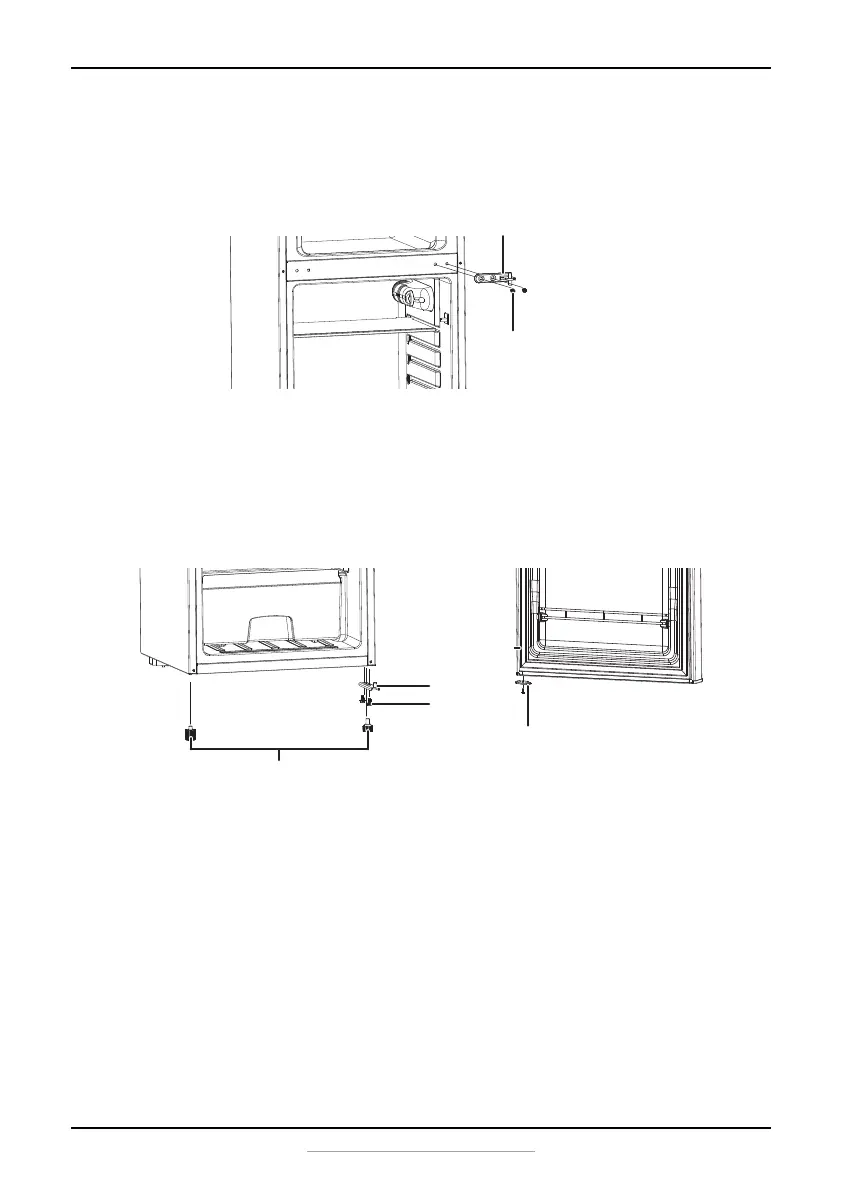

4 Remove the screw holding the pivot pin on the bottom left side of the
freezer door, then remove the pivot pin.
5 Remove the two screws holding the middle hinge to the refrigerator
body, then remove the hinge.
6 Pull the refrigerator door upwards and remove it from the refrigerator.
7 Tilt the refrigerator back or lay it on its back.
8 Unscrew the right and left leveling feet, then remove them.
9 Remove the two screws holding the bottom hinge on the refrigerator
and remove the hinge.
10 Remove the baffle block from the bottom-left side of the door.
Bottom
hinge
Screws (2)
Leveling feet
Baffle
block
