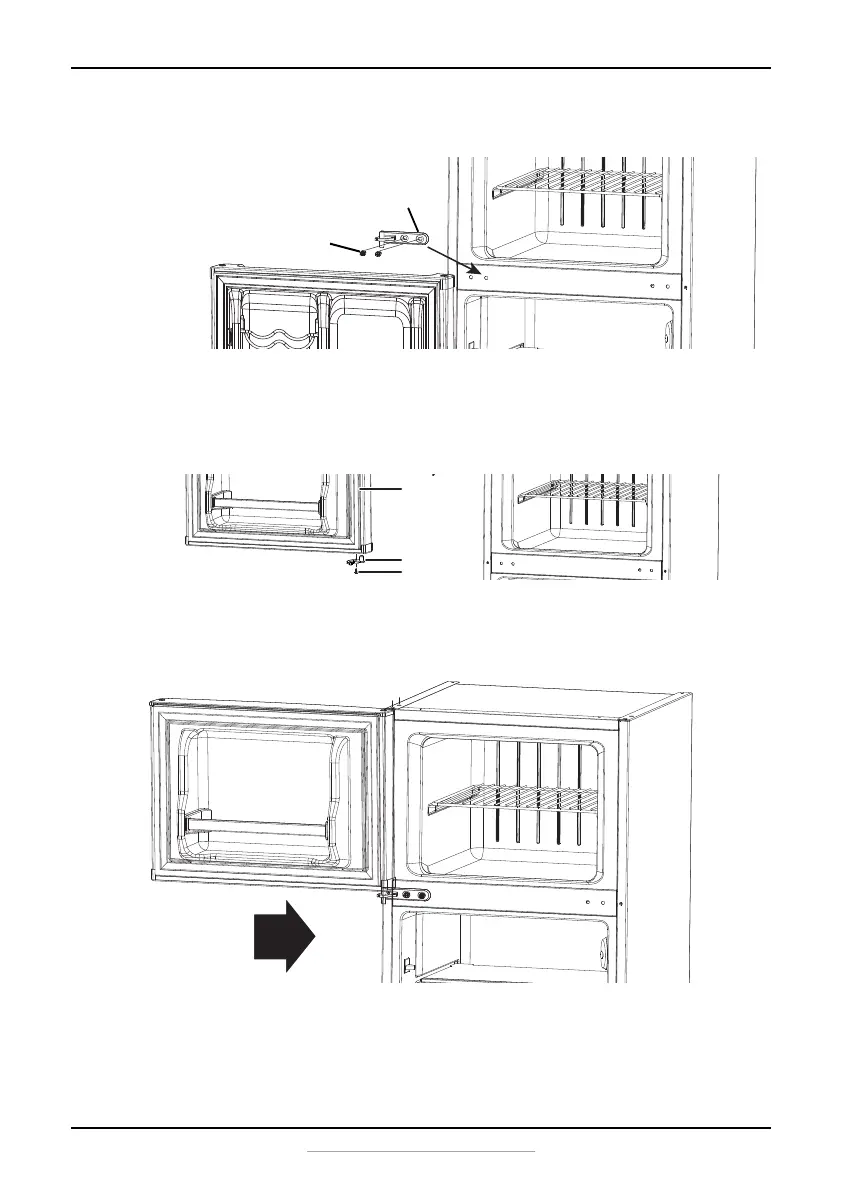

5 Install the middle hinge on the left of the refrigerator with the screws
your previously removed. Do not fully tighten the screws.
6 Check the fit and alignment of the door and make sure that it opens
and closes freely, then tighten the screws holding the middle hinge.
7 Install the pivot pin on the bottom right of the freezer door using the
screw you previously removed.
8 Align the hole in the bottom right of the freezer door with the top pin
in the middle hinge, then install the freezer door on the hinge pin.
Freezer
door
Pivot pin
Screw
